Luminys N5B-J01 Standard Bullet Junction Box
SKU
N5B-J01
Luminys Model N5B-J01

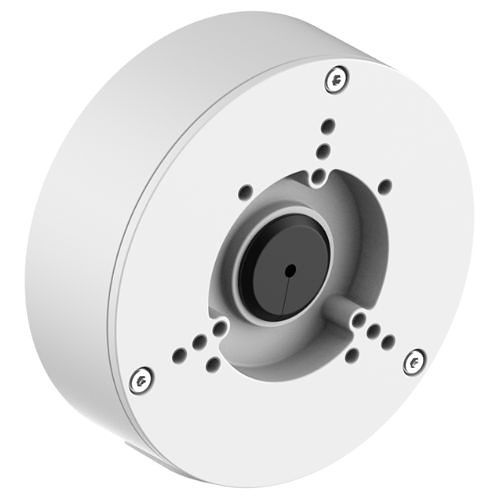

Luminys N5B-J01 Standard Bullet Junction Box
- 0mm
- IP66
Free shipping over $450
Model No
N5B-J01
$34.81
Product Highlights
- For Select N5B, N3B, N4B Standard Size Bullet Cameras
- Dimensions: Φ 124.0 mm x 41.0 mm (Φ 4.88 in. x 1.61 in.)
- Aluminum Construction
- Max. Load Capacity: 6.6 lb (3.0 kg)
- IP66, IK10

Speak to an expert
Overview
The N5B-J01 from Luminys is a reliable junction box designed specifically for select standard size bullet camera models. This robust and durable accessory ensures optimal performance and protection for your camera setup, making installation easier and enhancing longevity.
Luminys N5B-J01 Junction Box Features
- Compatibility: Designed specifically for N5B, N3B, and N4B standard size bullet cameras, ensuring a perfect fit and functionality.
- Dimensions: Compact size of Φ 124.0 mm x 41.0 mm (Φ 4.88 in. x 1.61 in.) allows for discreet installation in various settings.
- Material: Constructed from durable aluminum, providing strength and resilience against environmental elements.
- Load Capacity: Can support a maximum load of 6.6 lb (3.0 kg), making it suitable for various camera weights.
- Protection Rating: Rated IP66 for dust and water resistance, and IK10 for impact resistance, ensuring reliable operation in challenging conditions.
Luminys N5B-J01 Junction Box Specifications
| Model | N5B-J01 |
| Compatibility | N5B, N3B, N4B Standard Size Bullet Cameras |
| Dimensions | Φ 124.0 mm x 41.0 mm (Φ 4.88 in. x 1.61 in.) |
| Material | Aluminum |
| Max Load Capacity | 6.6 lb (3.0 kg) |
| Protection Rating | IP66, IK10 |
Specifications
Fits with these accessories
Mounts and add-ons made for this model.
- Luminys N5B-8LA2 8 Megapixel Network IP LumiLuxSmart Bullet Camera with 2.8mm Lens $431.98
- Luminys N3B-8LAV 8 Megapixel Network IP LumiLuxSmart Bullet Camera with 2.7-13.5mm Lens $485.98
- Luminys N3B-8LA2 8 Megapixel Network IP LumiLuxSmart Bullet Camera with 2.8mm Lens $323.98
- Luminys N3B-4LAV 4 Megapixel Network IP LumiLuxSmart Bullet Camera with 2.7-13.5mm Lens $323.98
- Luminys N3B-4LA2 4 Megapixel Network IP LumiLuxSmart Bullet Camera with 2.8mm Lens $226.78
- Luminys N4B-8VA2 8 Megapixel Network IP LumiNightKing Bullet Camera with 2.8mm Lens $359.98
- Luminys N5B-4LAV 4 Megapixel Network IP LumiLuxSmart Bullet Camera with 2.7-12mm Lens $566.98
- Luminys N4B-4VA2 4 Megapixel Network IP LumiNightKing Bullet Camera with 2.8mm Lens $278.98
- Luminys N5B-4LA2 4 Megapixel Network IP LumiLuxSmart Bullet Camera with 2.8mm Lens $350.98
- Luminys N5B-8CA2 8 Megapixel Network IP LumiColor Bullet Camera with 2.8mm Lens $539.98
- Luminys N5B-4CA2 4 Megapixel Network IP LumiColor Bullet Camera with 2.8mm Lens $331.18
- Luminys N5B-12LA2 12 Megapixel Network IP LumiLuxSmart Bullet Camera with 2.8mm Lens $467.98
- Luminys N5B-8LAV 8 Megapixel Network IP LumiLuxSmart Bullet Camera with 2.7-12mm Lens $611.98
