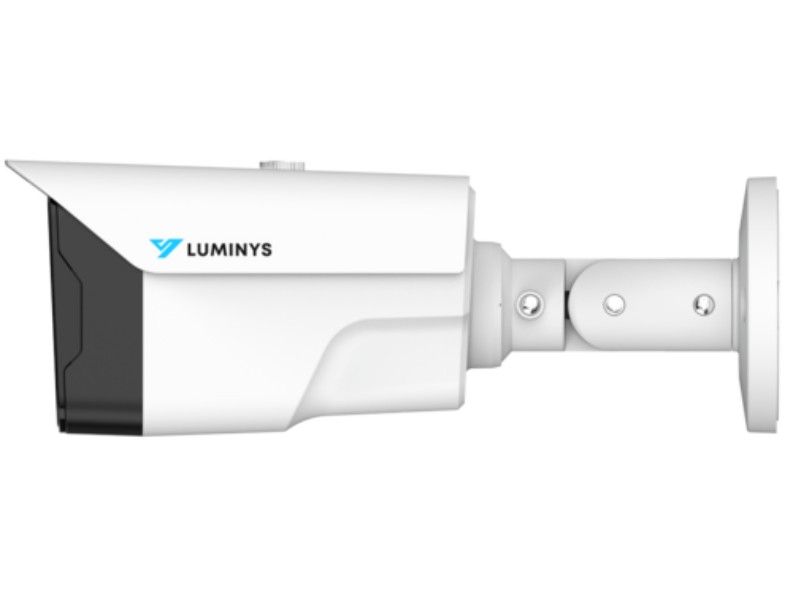

Luminys N4B-4VA2 4 Megapixel Network IP LumiNightKing Bullet Camera with 2.8mm Lens
SKU
N4B-4VA2
Model No
N4B-4VA2
$203.41
Product Highlights
- 4MP Bullet Housing
- 2.8 mm Lens
- AI-ISP
- White-Light LEDs
- Video Content Analytics: Line Crossing, Intrusion
Speak to an expert
The Luminys N4B-4VA2 is part of the renowned Mainstream series of security devices, engineered to address the modern security landscape. Incorporating advanced LumiTechnologies, it ensures reliable surveillance with enhanced performance and durability. With LumiNightKing technology, users can access full-color video in low-light conditions, while the robust design makes it suitable for extreme environments. The camera’s dual capabilities allow for discreet monitoring or visible deterrent lighting, making it perfect for various applications, including industrial sites, transportation hubs, and outdoor areas.
Luminys N4B-4VA2 Camera Features
- 4MP Bullet Housing: Provides high-resolution video capture, ensuring clear images for effective monitoring.
- 2.8 mm Lens: Offers a wide field of view, allowing for better coverage of large areas without blind spots.
- AI-ISP: Enhances image processing with artificial intelligence, ensuring superior video quality and intelligent monitoring capabilities.
- White-Light LEDs: Enables visible deterrent monitoring, enhancing security measures during nighttime.
- Video Content Analytics: Features capabilities like Line Crossing and Intrusion detection, automating security responses and reducing false alerts.
- iMD: Integrated motion detection technology for instant alerts and high accuracy in activity recognition.
- LumiPolarPro and LumiDesertPro: Built to withstand extreme environments, ensuring reliable operation regardless of external conditions.
Detailed Specifications for Luminys N4B-4VA2
| Camera Resolution | 4MP |
| Lens Type | 2.8 mm |
| Lighting Technology | LumiNightKing and White-Light LEDs |
| Power Options | 12 VDC and PoE |
| Video Analytics | Line Crossing, Intrusion |
| Environmental Resistance | LumiPolarPro and LumiDesertPro |
SKU  | N4B-4VA2 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Pole, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 220.1 mm x 87.4 mm x 78.8 mm (8.7 in. x 3.4 in. x 3.1 in.) |
| Electronic Shutter | Automatic, Manual 1/3 s to 1/100,000 s |
| Image Device | 1/1.8-in. 4MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.0006 lux at F1.0 |
| Operating Humidity | < 95% RH (Non-Condensing) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
| Power Consumption | 12 VDC: Maximum: 5.5 W, Normal: 2.0 W , PoE: Maximum: 7.2 W, Normal: 3.0 W |
| Protocols | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, PPPoE, UPnP, SNMP, Bonjour, QoS, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| S/N Ratio | > 50 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D NR |
| Mirror | Supported |
| Angle of View | Horizontal: 112° , Vertical: 60° , Diagonal: 134° |
| Rotation Angle | 0° to 360° |
| Motion Detection Tracking | Supported with Alarms for Vehicles and Humans |
| IR Distance | 45.7m/150ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
