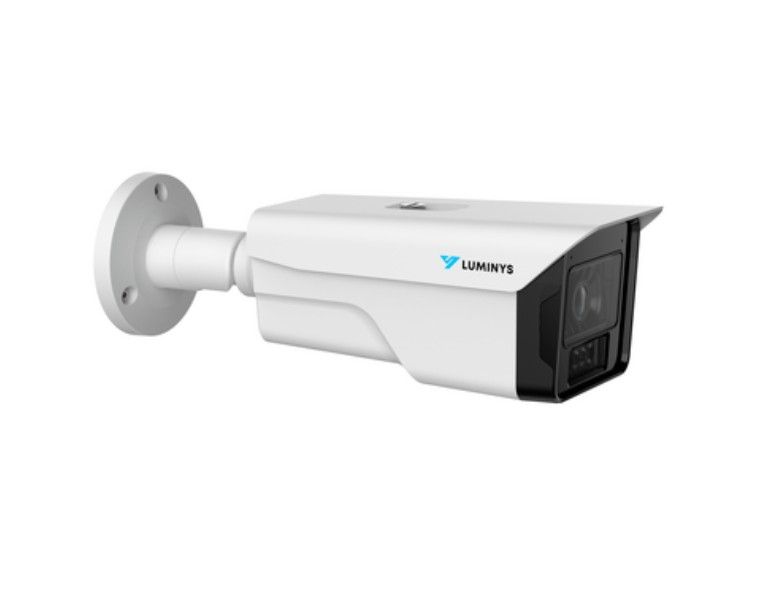

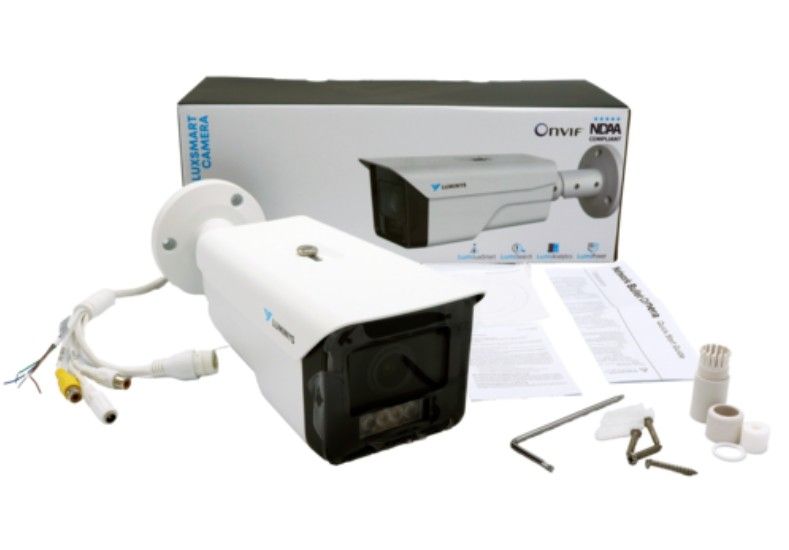

Luminys N5B-8LA2 8 Megapixel Network IP LumiLuxSmart Bullet Camera with 2.8mm Lens

SKU
N5B-8LA2
Model No
N5B-8LA2
$305.54
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 8MP Bullet Housing
  • 2.8 mm Fixed Lens
  • LumiLuxSmart — IR and White-Light LEDs
  • Video Content Analytics+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
  • iMD

Luminys LumiLuxSmart N5 Mainstream Series Camera Features

Luminys is lighting the way for flexible low-light solutions with the LumiLuxSmart N5 Mainstream Series, the industry’s most extensive dual-functioning camera lineup.

LumiLuxSmart cameras allow users to switch between three low-light functionalities: covert IR-only mode, nighttime white-light LED lighting, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution.

The LumiLuxSmart series provide unparalleled customization and flexibility to meet the needs of today’s evolving security market.

Features

  • 8MP Bullet Housing: Delivers high-resolution video for clear image capture and enhanced surveillance capabilities.
  • 2.8 mm Fixed Lens: Provides a wide field of view for comprehensive monitoring of large areas.
  • LumiLuxSmart — IR and White-Light LEDs: Versatile low-light capabilities for various lighting conditions; ideal for both day and night operation.
  • Video Content Analytics+: Advanced detection features including line crossing, intrusion, loitering, and parking detection ensure proactive security monitoring.
  • iMD: Intelligent Motion Detection enhances accuracy in differentiating between actual threats and false alarms.
  • LumiSearch+: Efficient search capabilities to easily locate key events or incidents within recorded footage.
  • LumiAnalytics: In-depth analytical features such as face detection, people counting, queue management, smart object detection, and heat map generation improve operational efficiency.
  • LumiPower: Optimized power management extends device lifespan and reduces energy costs.

Detailed Camera Specifications

Camera Resolution8 Megapixels
Lens TypeFixed 2.8 mm Lens
LED LightsIR and White-Light LEDs
Video AnalyticsLine Crossing, Intrusion, Loitering, Parking Detection
Special FeaturesiMD, LumiSearch+, LumiAnalytics
Power ManagementLumiPower technology
SKU  N5B-8LA2
Features  Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, Facial Recognition
Manufacturer  Luminys
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    8 Megapixel
Lens Type    Fixed
Lens Size    2.8mm
Mount Type  Ceiling, Pole, Wall
Compression Method    H.264, M-JPEG, H.265, H.264+, H.265+
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  290.6 mm × 98.6 mm × 88.2 mm (11.4 in. × 3.9 in. × 3.5 in.)
Electronic Shutter    Automatic, Manual 1/3 s to 1/100,000 s
Image Device    1/1.8-in. 8MP Progressive CMOS
IR LEDs  Two (2)
Minimum Scene Illumination  Color: 0.0005 Lux (F1.0) , Black/White: 0.0003 Lux (F1.0) 0 Lux With IR Light On
Operating Humidity    < 95% RH (Non-Condensing)
Operating Temperature    -40 °C to 60 °C (-40 °F to 140 °F)
Power Consumption  12 VDC: Maximum: 8.3 W, Normal: 4.1 W , PoE: Maximum: 9.8 W, Normal: 5.2 W
Protocols  IPv4, IPv6, HTTP, TCP, RTSP, RTMP, SNMP, FTP, NAS, DHCP, DDNS, QoS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP
S/N Ratio  > 50 dB
Weatherproof    IP67, IK10
Digital Noise Reduction    3D NR
Mirror    Supported
Angle of View    Horizontal: 109° , Vertical: 59° , Diagonal: 131°
Rotation Angle0° to 360°
Motion Detection Tracking    Supported with Alarms for Vehicles and Humans
IR Distance  30m/98ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
