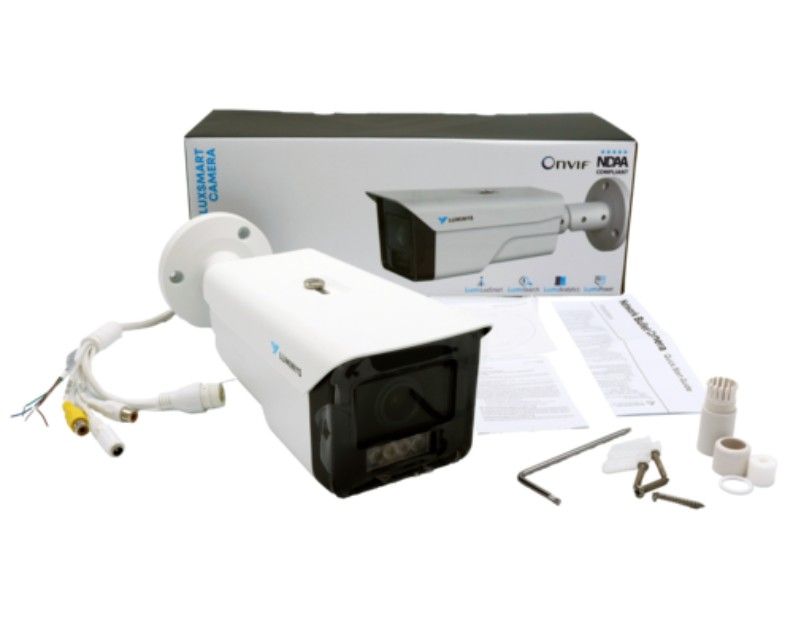

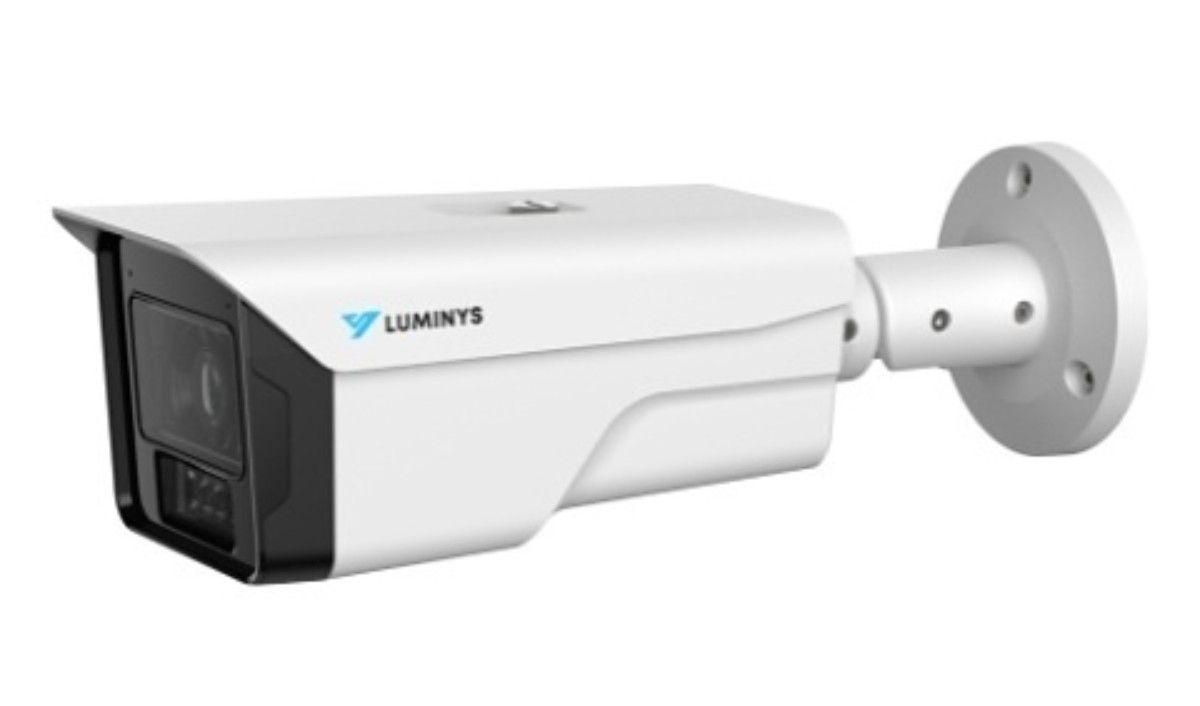

Luminys N5B-8LAV 8 Megapixel Network IP LumiLuxSmart Bullet Camera with 2.7-12mm Lens
SKU
N5B-8LAV

Luminys Model N5B-8LAV

Luminys N5B-8LAV 8 Megapixel Network IP LumiLuxSmart Bullet Camera with 2.7-12mm Lens

  • 4K
  • 2.7–12mm
  • AI
  • Night Vision
Free shipping
Model No
N5B-8LAV
$611.98
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 8MP Bullet Housing
  • 2.7 mm to 12 mm Motorized Lens
  • LumiLuxSmart — IR and White-Light LEDs
  • Video Content Analytics+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
  • iMD

Overview

Luminys is lighting the way for flexible low-light solutions with the LumiLuxSmart N5 Mainstream Series, the industry’s most extensive dual-functioning camera lineup.

LumiLuxSmart cameras allow users to switch between three low-light functionalities: covert IR-only mode, nighttime white-light LED lighting, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution.

The LumiLuxSmart series provide unparalleled customization and flexibility to meet the needs of today’s evolving security market.

Luminys LumiLuxSmart N5 Camera Features

  • 8MP Bullet Housing: Offers high-resolution images for detailed surveillance and monitoring.
  • 2.7 mm to 12 mm Motorized Lens: Provides adjustable field of view, allowing users to customize coverage according to their needs.
  • LumiLuxSmart — IR and White-Light LEDs: Enables versatile illumination options for various low-light conditions, ensuring optimal visibility.
  • Video Content Analytics+: Includes advanced detection capabilities such as Line Crossing, Intrusion, Loitering Detection, and Parking Detection for enhanced situational awareness.
  • iMD: Intelligent Motion Detection technology increases the accuracy of motion alerts and reduces false alarms.
  • LumiSearch+: Facilitates quick video searches based on specific parameters, saving time and improving efficiency.
  • LumiAnalytics: Features algorithms for Face Detection, People Counting, Queue Management, Smart Object Detection, and Heat Map for actionable insights and reporting.
  • LumiPower: Optimizes power management to enhance the reliability and longevity of the camera.

Detailed Camera Specifications for Luminys LumiLuxSmart N5

Resolution8MP
Lens TypeMotorized, 2.7 mm to 12 mm
Illumination ModesIR-only, White-Light, Dual-illumination
Analytics FeaturesLine Crossing, Intrusion, Loitering, Parking Detection
Detection TechnologyiMD
Search FunctionalityLumiSearch+
Face DetectionEnabled
People CountingEnabled
Queue ManagementEnabled
Smart Object DetectionEnabled
Heat MapEnabled
Power ManagementLumiPower

Built-in Functions

  • Audio
  • Auto Gain Control
  • Day/Night
  • Digital Noise Reduction
  • Motion Detection Tracking
  • Privacy Masking
  • Wide Dynamic Range
  • Mirror
  • ONVIF

Specifications

SKU  N5B-8LAV
Features  Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, Facial Recognition
Manufacturer  Luminys
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    8 Megapixel
Lens Type    Varifocal
Lens Size    2.7-12mm
Mount Type  Ceiling, Pole, Wall
Compression Method    H.264, M-JPEG, H.265, H.264+, H.265+
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  290.6 mm × 98.6 mm × 88.2 mm (11.4 in. × 3.9 in. × 3.5 in.)
Electronic Shutter    Automatic, Manual 1/3 s to 1/100,000 s
Image Device    1/1.8-in. 8MP Progressive CMOS
Minimum Scene Illumination  Color: 0.0007 Lux at F1.2 , Black/White: 0.0004 Lux at F1.2 0 Lux With IR Light On
Operating Humidity    < 95% RH (Non-Condensing)
Operating Temperature    -30 °C to 60 °C (-22 °F to 140 °F)
Power Consumption  12 VDC: Maximum: 12.5 W, Normal: 5.0 W , PoE: Maximum: 14.7 W, Normal: 5.7 W
Protocols  IPv4, IPv6, HTTP, TCP, RTSP, RTMP, SNMP, FTP, NAS, DHCP, DDNS, QoS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP
S/N Ratio  > 50 dB
Weatherproof    IP67, IK10
Digital Noise Reduction    3D NR
Mirror    Supported
Angle of View    Horizontal: 112° to 48° , Vertical: 58° to 27° , Diagonal: 137° to 55°
Rotation Angle0° to 360°
Motion Detection Tracking    Supported with Alarms for Vehicles and Humans
IR Distance  50m/164ft
