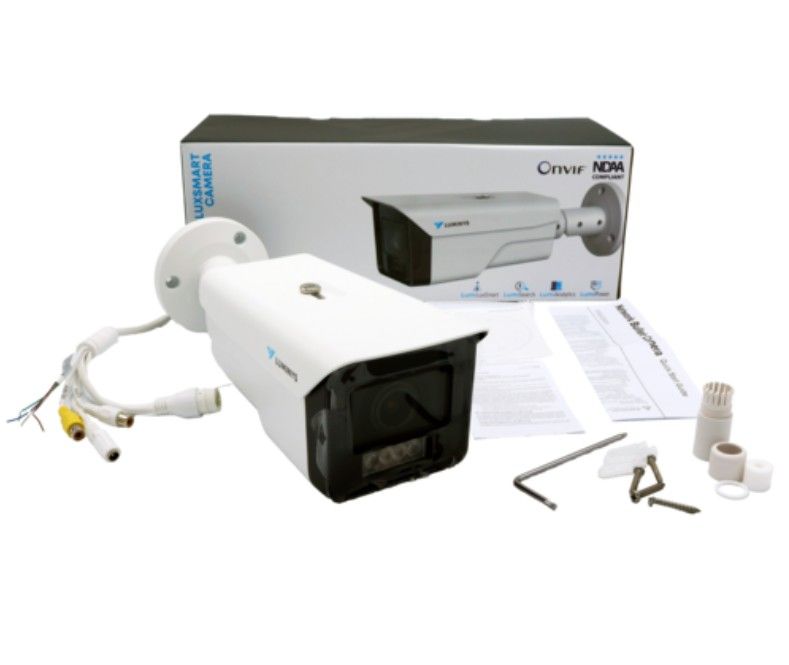

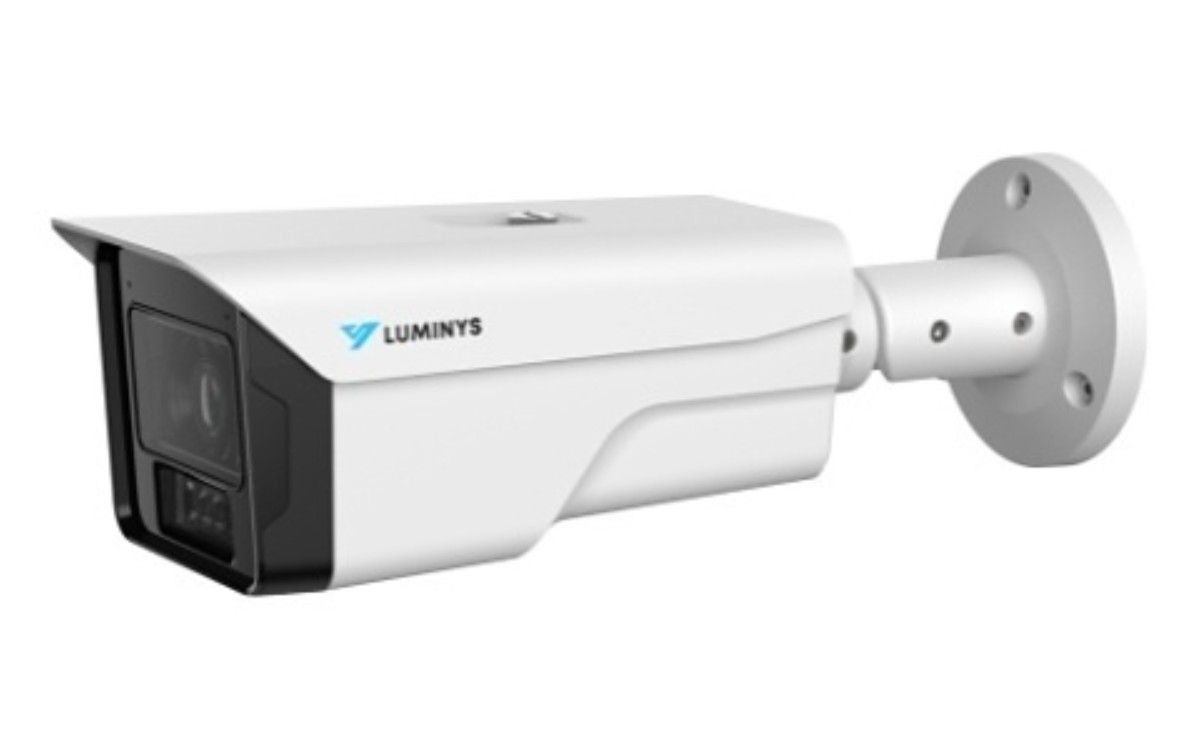

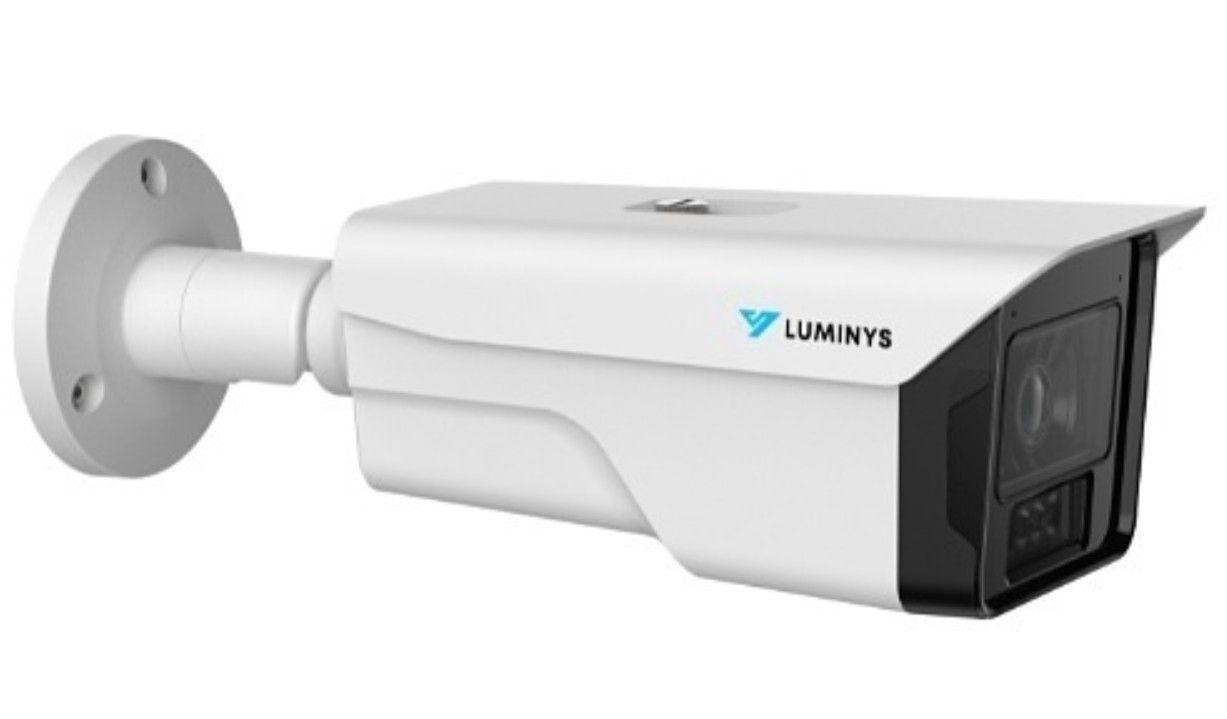

Luminys N5B-4LAV 4 Megapixel Network IP LumiLuxSmart Bullet Camera with 2.7-12mm Lens

SKU
N5B-4LAV
Model No
N5B-4LAV
$400.73
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 4MP Bullet Housing
  • 2.7 mm to 12 mm Motorized Lens
  • LumiLuxSmart — IR and White-Light LEDs
  • Video Content Analytics+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
  • iMD

Luminys is lighting the way for flexible low-light solutions with the LumiLuxSmart N5 Mainstream Series, the industry’s most extensive dual-functioning camera lineup. LumiLuxSmart cameras allow users to switch between three low-light functionalities: covert IR-only mode, nighttime white-light LED lighting, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution. The LumiLuxSmart series provide unparalleled customization and flexibility to meet the needs of today’s evolving security market.

Luminys LumiLuxSmart N5 Mainstream Series Camera Features

  • 4MP Bullet Housing: High-resolution imagery for enhanced surveillance clarity and detail.
  • 2.7 mm to 12 mm Motorized Lens: Adjustable focal length to capture a wide range of scenes without reinstallation.
  • LumiLuxSmart — IR and White-Light LEDs: Versatile lighting options for both stealth operation and clear visibility in various conditions.
  • Video Content Analytics+: Advanced detection features including Line Crossing, Intrusion, Loitering Detection, and Parking Detection enhance security monitoring.
  • iMD: Intelligent Motion Detection that reduces false alarms and increases efficiency in security management.
  • LumiSearch+: Powerful search capabilities enabling quick retrieval of video footage related to specific events or objects.
  • LumiAnalytics: Robust analytic tools for Face Detection, People Counting, Queue Management, Smart Object Detection, and Heat Map generation to optimize security and operational efficiency.
  • LumiPower: Efficient power management ensuring consistent performance and longevity.

Detailed Specifications for Luminys LumiLuxSmart N5

Resolution4MP
Lens TypeMotorized Lens (2.7 mm to 12 mm)
Lighting OptionsIR-only, White-Light LEDs, Dual-Illumination
Analytics FeaturesLine Crossing, Intrusion, Loitering, Parking Detection
Advanced AnalyticsFace Detection, People Counting, Queue Management, Smart Object Detection, Heat Map
Power ManagementLumiPower
SKU  N5B-4LAV
Features  Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, Facial Recognition
Manufacturer  Luminys
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    4 Megapixel
Lens Type    Varifocal
Lens Size    2.7-12mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265, H.264+, H.265+
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  290.6 mm × 98.6 mm × 88.2 mm (11.4 in. × 3.9 in. × 3.5 in.)
Electronic Shutter    Automatic, Manual 1/3 s to 1/100,000 s
Image Device    1/1.8-in. 4MP Progressive CMOS
Minimum Scene Illumination  Color: 0.0006 Lux at F1.2 , Black/White: 0.0003 Lux at F1.2 0 Lux With IR Light On
Operating Humidity    < 95% RH (Non-Condensing)
Operating Temperature    -30 °C to 60 °C (-22 °F to 140 °F)
Power Consumption  12 VDC: Maximum: 11.9 W, Normal: 4.3 W , PoE: Maximum: 13.8 W, Normal: 5.3 W
Protocols  IPv4, IPv6, HTTP, TCP, RTSP, RTMP, SNMP, FTP, NAS, DHCP, DDNS, QoS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP
S/N Ratio  > 50 dB
Weatherproof    IP67, IK10
Digital Noise Reduction    3D NR
Mirror    Supported
Angle of View    Horizontal: 114° to 48° , Vertical: 59° to 27° , Diagonal: 143° to 56°
Rotation Angle0° to 360°
Motion Detection Tracking    Supported with Alarms for Vehicles and Humans
IR Distance  50m/164ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
