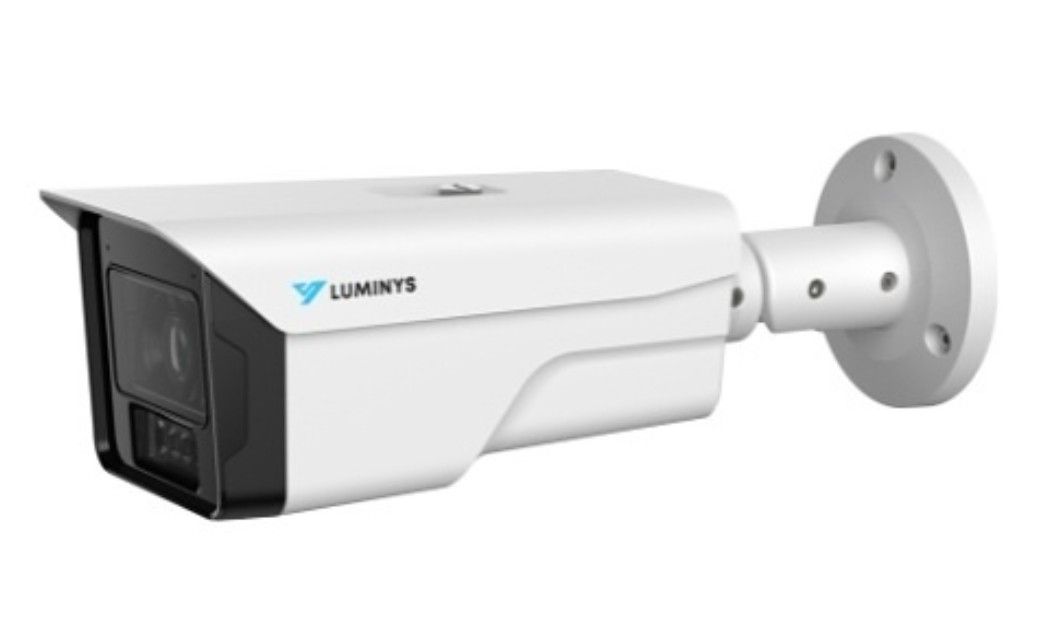

Luminys N5B-4LA2 4 Megapixel Network IP LumiLuxSmart Bullet Camera with 2.8mm Lens

SKU
N5B-4LA2
Model No
N5B-4LA2
$229.15
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 4MP Bullet Housing
  • 2.8 mm Lens
  • LumiLuxSmart — IR and White-Light LEDs
  • Video Content Analytics+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
  • LumiAnalytics: Face Detection, People Counting, Heat Map, Queue Management, Smart Object Detection

Luminys is lighting the way for flexible low-light solutions with the LumiLuxSmart N5 Mainstream Series, the industry’s most extensive dual-functioning camera lineup. LumiLuxSmart cameras allow users to switch between three low-light functionalities: covert IR-only mode, nighttime white-light LED lighting, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution. The LumiLuxSmart series provide unparalleled customization and flexibility to meet the needs of today’s evolving security market.

Luminys LumiLuxSmart N5 Camera Features

  • 4MP Bullet Housing: Offers high-resolution imaging for clear and detailed video, enhancing security monitoring capabilities.
  • 2.8 mm Lens: Wide-angle view captures more of the scene, improving overall surveillance coverage.
  • LumiLuxSmart — IR and White-Light LEDs: Versatile illumination options ensure visibility in various lighting conditions, making it adaptable for different environments.
  • Video Content Analytics+: Advanced features like Line Crossing, Intrusion, Loitering Detection, and Parking Detection enhance security and reduce false alarms.
  • LumiAnalytics: Includes Face Detection, People Counting, Heat Map, Queue Management, and Smart Object Detection for actionable insights in real-time.
  • LumiSearch+: Intelligent search capabilities streamline footage review, allowing users to quickly find relevant events or incidents.
  • iMD: Intelligent Motion Detection minimizes video storage needs while ensuring critical events are captured.
  • LumiPower: Energy-efficient design helps reduce operational costs while maintaining high performance.

Detailed Camera Specifications

Camera Type4MP Bullet
Lens2.8 mm
Illumination ModesIR-only, White-Light, Dual-Illumination
Video Content AnalyticsLine Crossing, Intrusion, Loitering Detection, Parking Detection
LumiAnalytics FeaturesFace Detection, People Counting, Heat Map, Queue Management, Smart Object Detection
Search FunctionalityLumiSearch+
Motion Detection TechnologyiMD
Power Efficiency TechnologyLumiPower
SKU  N5B-4LA2
Features  Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, Facial Recognition
Manufacturer  Luminys
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    4 Megapixel
Lens Type    Fixed
Lens Size    2.8mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265, H.264+, H.265+
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  290.6 mm × 98.6 mm × 88.2 mm (11.4 in. × 3.9 in. × 3.5 in.)
Electronic Shutter    Automatic, Manual 1/3 s to 1/100,000 s
Image Device    1/1.8-in. 4MP Progressive CMOS
IR LEDs  Two (2)
Minimum Scene Illumination  Color: 0.0005 Lux (F1.0) , Black/White: 0.0003 Lux (F1.0) 0 Lux With IR Light On
Operating Humidity    < 95% RH (Non-Condensing)
Operating Temperature    -40 °C to 60 °C (-40 °F to 140 °F)
Power Consumption  12 VDC: Maximum: 8.0 W, Normal: 3.8 W , PoE: Maximum: 9.5 W, Normal: 4.9 W
Protocols  IPv4, IPv6, HTTP, TCP, RTSP, RTMP, SNMP, FTP, NAS, DHCP, DDNS, QoS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP
S/N Ratio  > 50 dB
Weatherproof    IP67, IK10
Digital Noise Reduction    3D NR
Mirror    Supported
Angle of View    Horizontal: 111° , Vertical: 60° , Diagonal: 135°
Rotation Angle0°/90°/180°/270° (Supports 90°/270° with 2MP Resolution and Lower)
Motion Detection Tracking    Supported with Alarms for Vehicles and Humans
IR Distance  30m/98.4ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
