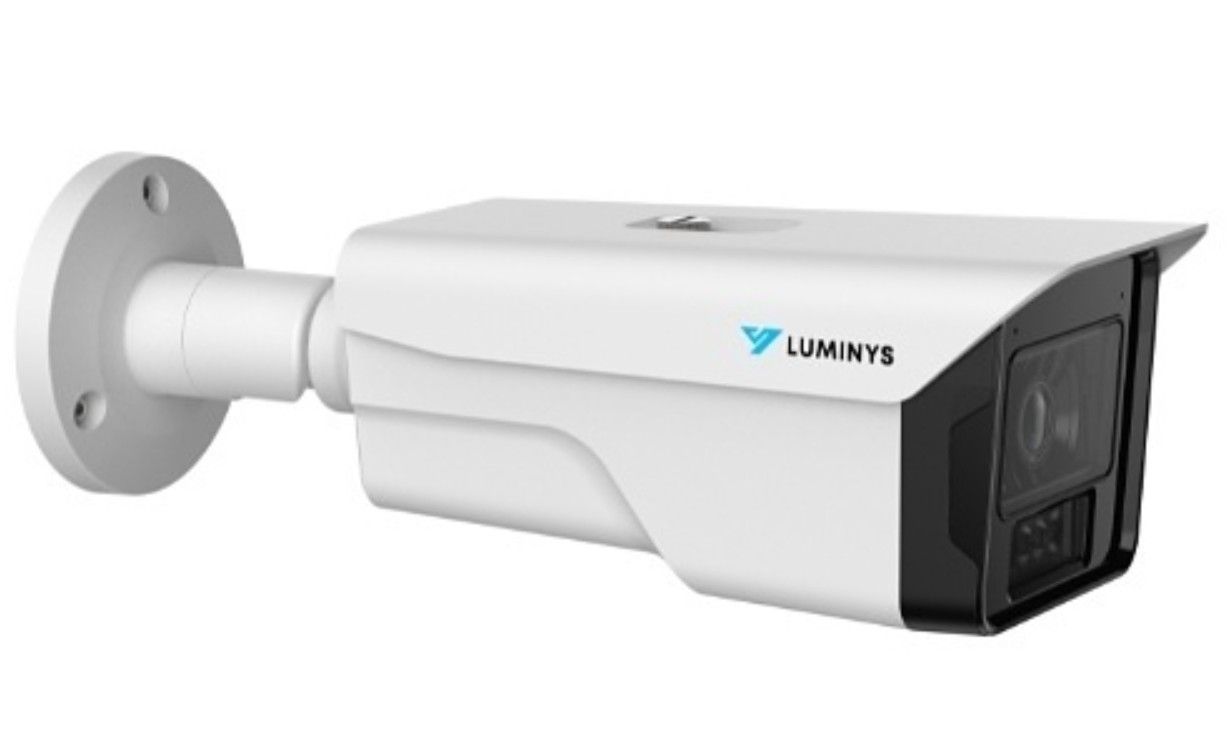

Luminys N5B-12LA2 12 Megapixel Network IP LumiLuxSmart Bullet Camera with 2.8mm Lens

SKU
N5B-12LA2
Model No
N5B-12LA2
$330.22
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 12MP Bullet Housing
  • 2.8 mm Fixed Lens
  • LumiLuxSmart — IR and White-Light LEDs
  • Video Content Analytics+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
  • iMD

Luminys is lighting the way for flexible low-light solutions with the LumiLuxSmart N5 Mainstream Series, the industry’s most extensive dual-functioning camera lineup.

LumiLuxSmart cameras allow users to switch between three low-light functionalities: covert IR-only mode, nighttime white-light LED lighting, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution.

The LumiLuxSmart series provide unparalleled customization and flexibility to meet the needs of today’s evolving security market.

Features

  • 12MP Bullet Housing: Delivers high-resolution images for superior clarity and detail in surveillance footage.
  • 2.8 mm Fixed Lens: Provides a wide field of view, ensuring comprehensive coverage of monitored areas.
  • LumiLuxSmart — IR and White-Light LEDs: Offers versatile lighting options to enhance visibility in various conditions.
  • Video Content Analytics+: Includes features like Line Crossing, Intrusion, Loitering Detection, and Parking Detection to improve security response and efficiency.
  • iMD: Intelligent Motion Detection helps minimize false alarms by filtering out non-threatening movements.
  • LumiSearch+: Allows for rapid video searches, saving time during investigations.
  • LumiAnalytics: Advanced analytics capabilities, including Face Detection, People Counting, Queue Management, Smart Object Detection, and Heat Map functions to enhance operational insights.
  • LumiPower: Ensures reliable performance with energy-efficient operations, optimizing power usage without sacrificing performance.

Luminys LumiLuxSmart N5 Camera Specifications

Camera Resolution12 Megapixels
Lens Type2.8 mm Fixed Lens
Low-Light ModesIR-only, White-Light, Dual-Illumination
Video Analytics FeaturesLine Crossing, Intrusion, Loitering, Parking Detection
Smart FeaturesFace Detection, People Counting, Queue Management
Power SourceEnergy Efficient
SKU  N5B-12LA2
Features  Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, Facial Recognition
Manufacturer  Luminys
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    12 Megapixel
Lens Type    Fixed
Lens Size    2.8mm
Mount Type  Ceiling, Pole, Wall
Compression Method    H.264, M-JPEG, H.265, H.264+, H.265+
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  290.6 mm × 98.6 mm × 88.2 mm (11.4 in. × 3.9 in. × 3.5 in.)
Electronic Shutter    Automatic, Manual 1/3 s to 1/100,000 s
Image Device    1/2.5-in. 12MP Progressive CMOS
IR LEDs  Two (2)
Minimum Scene Illumination  Color: 0.0085 Lux at F1.6 , Black/White: 0.0008 Lux at F1.6 0 Lux With IR Light On
Operating Humidity    < 95% RH (Non-Condensing)
Operating Temperature    -40 °C to 60 °C (-40 °F to 140 °F)
Power Consumption  12 VDC: Maximum: 9.0 W, Normal: 4.6 W , PoE: Maximum: 11.3 W, Normal: 5.4 W
Protocols  IPv4, IPv6, HTTP, TCP, RTSP, RTMP, SNMP, FTP, NAS, DHCP, DDNS, QoS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP
S/N Ratio  > 50 dB
Weatherproof    IP67, IK10
Digital Noise Reduction    3D NR
Mirror    Supported
Angle of View    Horizontal: 112° , Vertical: 58° , Diagonal: 139°
Rotation Angle0° to 360°
Motion Detection Tracking    Supported with Alarms for Vehicles and Humans
IR Distance  30m/98ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
