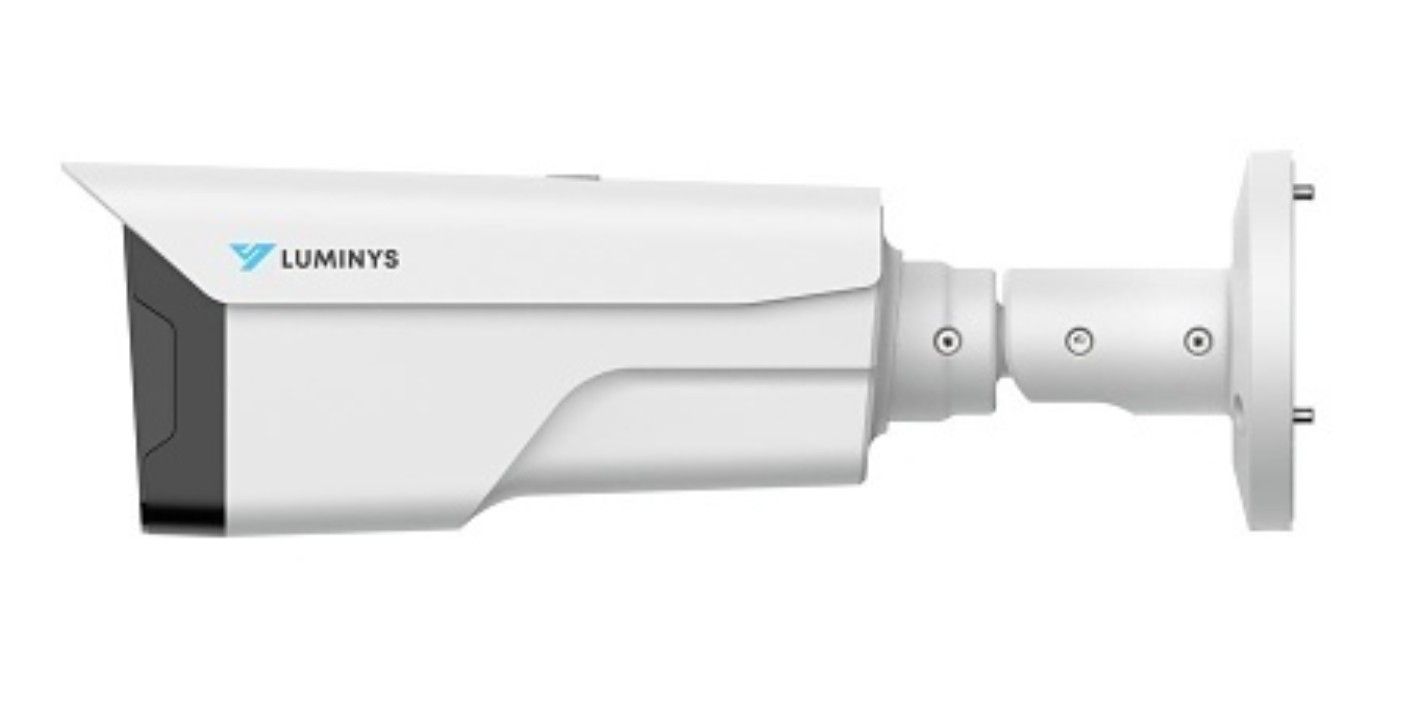

Luminys N3B-4LAV 4 Megapixel Network IP LumiLuxSmart Bullet Camera with 2.7-13.5mm Lens
SKU
N3B-4LAV
Model No
N3B-4LAV
$232.12
Product Highlights
- 4MP Bullet Housing
- 2.7 mm to 13.5 mm Motorized Vari-Focal Lens
- LumiLuxSmart — IR and White-Light LEDs
- Video Content Analytics: Line Crossing, Intrusion
- iMD
Speak to an expert
Luminys N3B-4LAV Camera Features
The N3B-4LAV is part of Luminys’s Starter series. Starter series devices are designed with a curated selection of technologies and features to provide high-quality security without unnecessary or complicated add-ons.
This camera is equipped with LumiLuxSmart technology to provide unparalleled customization and flexibility to meet the needs of today's security market. LumiLuxSmart cameras allow users to switch between three low-light functionalities: covert IR-only mode, nighttime white-light LED lighting, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution. With its smart design, this camera is ideal for small to mid-sized applications.
Features
- 4MP Bullet Housing: Offers superior clarity and detail for enhanced surveillance.
- 2.7 mm to 13.5 mm Motorized Vari-Focal Lens: Provides flexible focal length options to adapt to various surveillance needs.
- LumiLuxSmart — IR and White-Light LEDs: Ensures the ability to capture clear footage in low-light conditions while minimizing light pollution.
- Video Content Analytics: Features like Line Crossing and Intrusion detection enhance security by automating monitoring.
- iMD: Intelligent Motion Detection technology optimizes camera performance and reduces false alarms.
- LumiPolarPro and LumiDesertPro: Tailored imaging technologies that enhance performance in diverse environments.
Detailed Specifications for Luminys N3B-4LAV
| Model | N3B-4LAV |
| Sensor Resolution | 4 Megapixels |
| Lens Type | Motorized Vari-Focal |
| Lens Range | 2.7 mm to 13.5 mm |
| Low-Light Options | Covert IR, White-Light LED, Motion-Activated Dual-Illumination |
| Video Analytics | Line Crossing, Intrusion Detection |
| Intelligent Features | iMD |
| Design Series | Starter Series |
| Usage Application | Small to Mid-Sized Environments |
SKU  | N3B-4LAV |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-13.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 290.6 mm × 98.6 mm × 91.2 mm (11.4 in. × 3.9 in. × 3.6 in.) |
| Electronic Shutter | Automatic, Manual 1/3 s to 1/100,000 s |
| Image Device | 1/2.9-in. 4MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.005 Lux at F1.5 , Black/White: 0.0005 Lux at F1.5 0 Lux With IR Light On |
| Operating Humidity | < 95% RH (Non-Condensing) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
| Power Consumption | 12 VDC: Maximum: 6.9 W, Normal: 2.6 W , PoE: Maximum: 8.3 W, Normal: 3.3 W |
| Protocols | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| S/N Ratio | > 56 dB |
| Weatherproof | IP67, IK10 |
| Digital Noise Reduction | 3D NR |
| Mirror | Supported |
| Angle of View | Horizontal: 97° to 28° , Vertical: 52° to 16° , Diagonal: 117° to 32° |
| Rotation Angle | 0° to 360° |
| Motion Detection Tracking | Supported with Alarms for Vehicles and Humans |
| IR Distance | 61m/200ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
N3B-4LAV-Specsheet N-Network-Camera-User-Manual.pdf Bullet-Camera-Quick-Start-Guide.pdf
