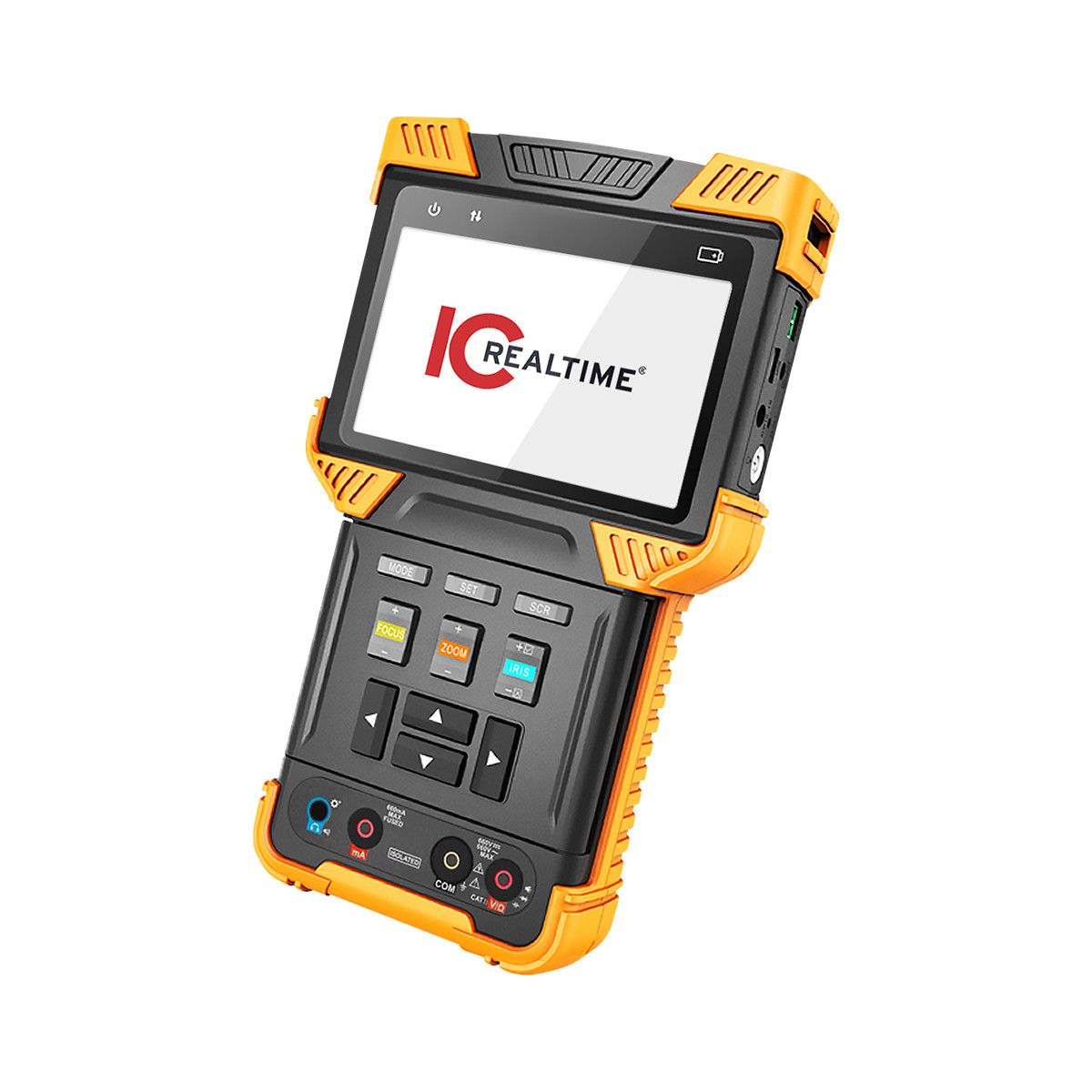

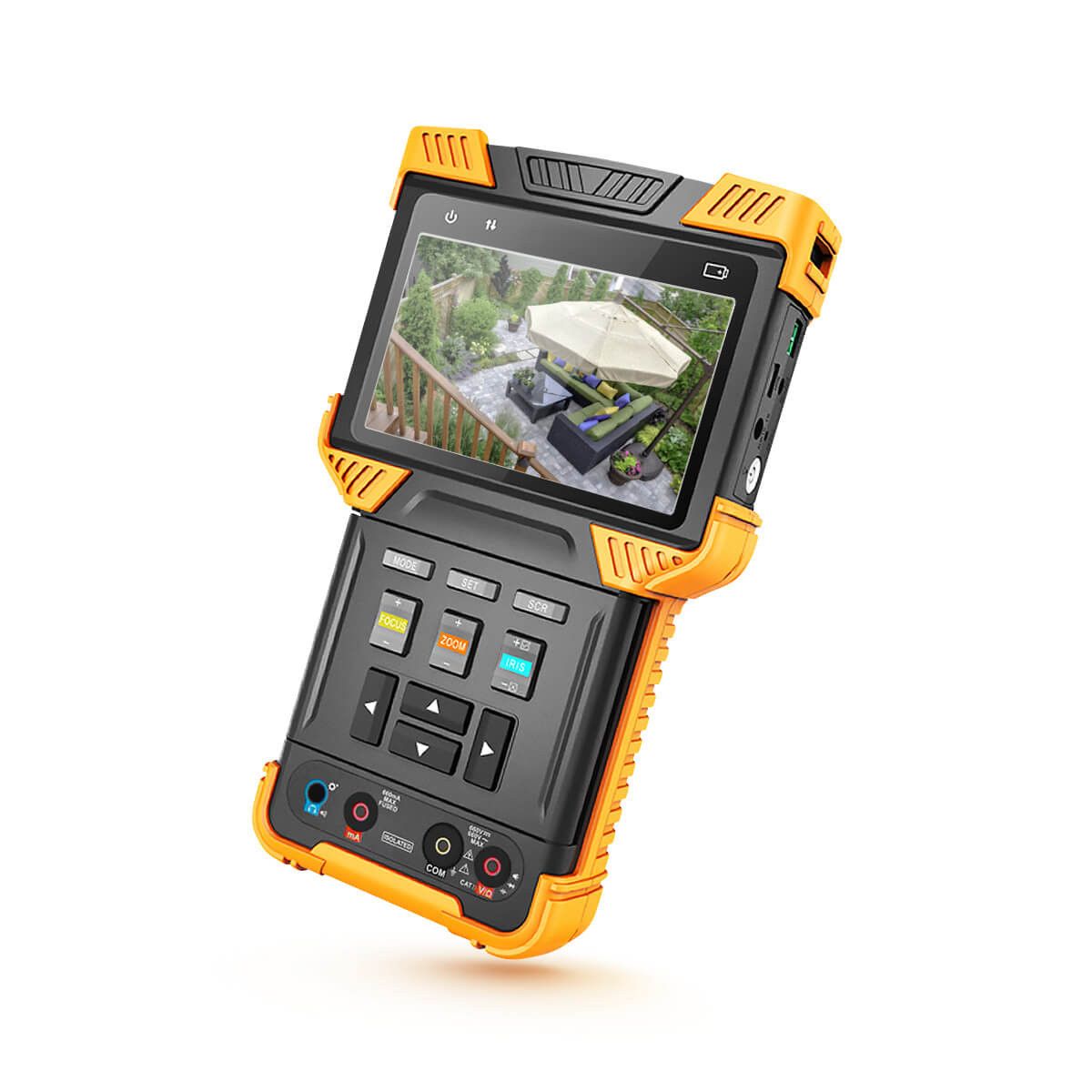

ICRealtime ITM-9000-V3 Multi-Function Test Tool

The ITM-9000-V3 from ICRealtime is a multi-function camera test tool designed to streamline the installation and maintenance of modern security systems. Supporting multiple video formats including IP, AVS, AHD, TVI, and CVBS, this tool features upgraded hardware with impressive capabilities for high-resolution testing. With its intuitive interface and extensive diagnostic features, installers can easily determine signal quality, power levels, and cable integrity, saving valuable time and enhancing efficiency on the job site.

ICRealtime ITM-9000-V3 Key Features

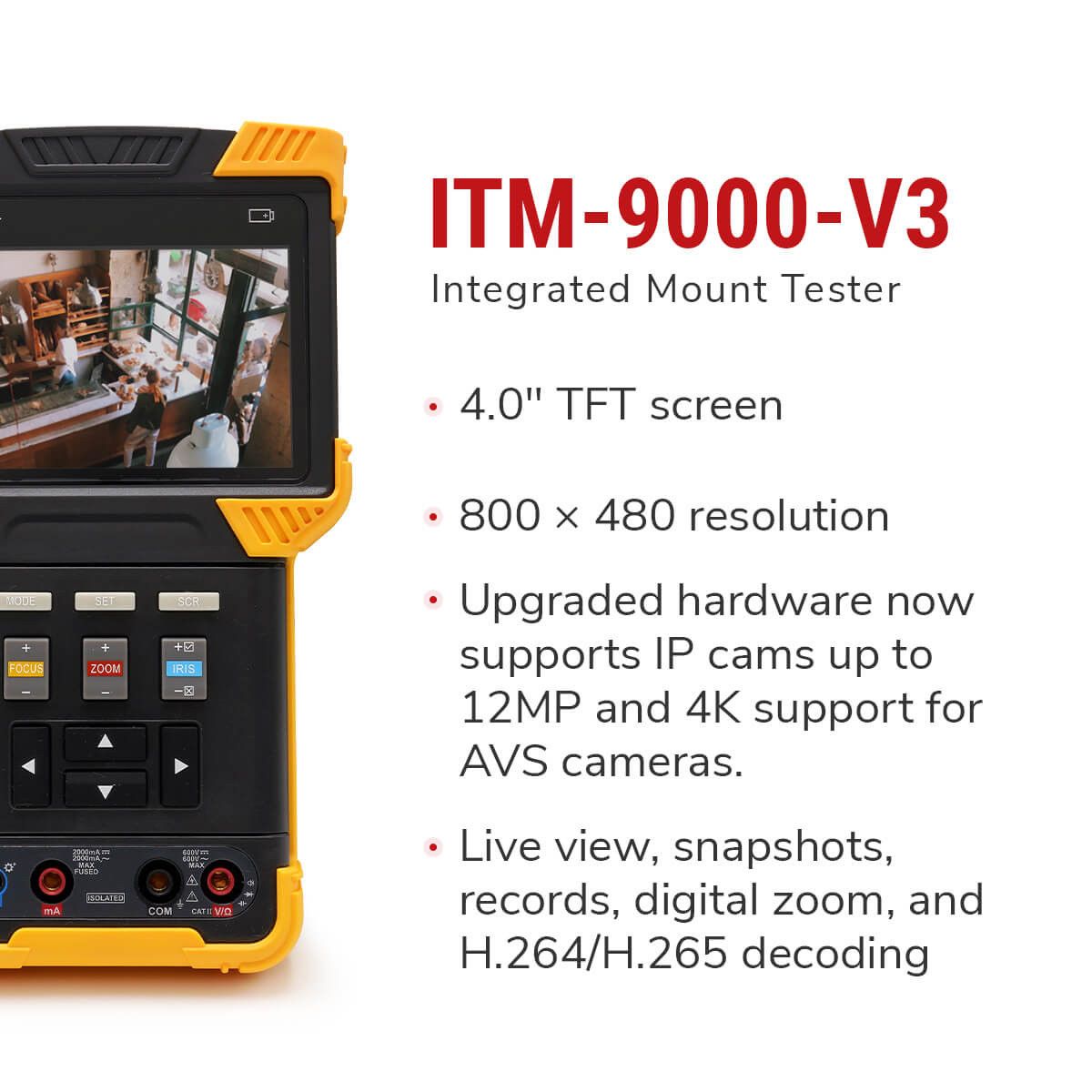

• 4.0" TFT Screen: Provides clear and vibrant display with a resolution of 800 × 480 for easy navigation and viewing of camera feeds.
• H.264/H.265 Decoding Support: Enables compatibility with a wide range of IPCs for versatile testing capabilities.
• HD Video Support: In addition to IPC, the tester supports AVS, AHD, TVI, and CVBS, making it a comprehensive solution for various camera technologies.
• 12V/2A DC Power Supply: Allows powering of the camera directly from the tester, eliminating the need for additional power sources.
• RS-485 Control and Audio Test: Supports additional functionality for PTZ control and audio testing, ensuring complete system diagnostics.
• Ethernet Cable Testing: Quickly analyzes cable length and attenuation, helping to locate shorts and ensuring optimal performance.
• Built-in Digital Multimeter: Facilitates electrical testing for efficient troubleshooting of camera installations.

ICRealtime ITM-9000-V3 Detailed Specifications
