ICRealtime Model IPEL-D12V-IRW2
ICRealtime IPEL-D12V-IRW2 12 Megapixel IP Indoor/Outdoor IR Vandal Dome Camera with 2.7-12mm Lens
- 12MP
- 2.7–12mm
- Night Vision
- Outdoor
- Audio
- 1/1.7 CMOS Starvis | 12MP | 30fps@12MP
- 2.7 Mm-12 Mm | Motorized Varifocal | AoV 103 To 44
- Max. IR Length 131ft | Smart IR | 3 IR LEDs
- 1ch Audio In 1ch Audio Out | 3 Ch Alarm In 2 Ch Alarm Out | 256GB MSD
- IVS | Perimeter Protection | Face Detection+ Recognition

Overview

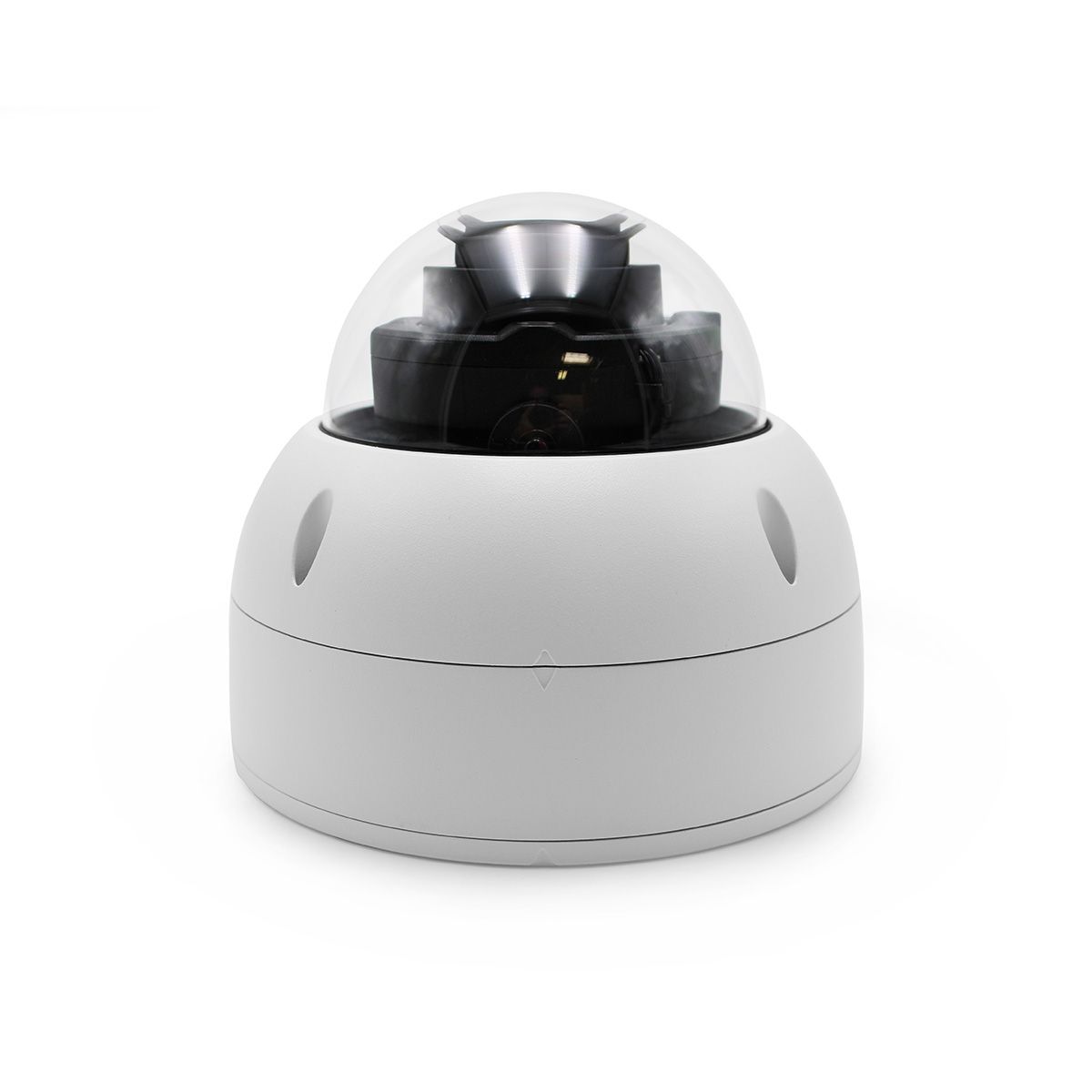

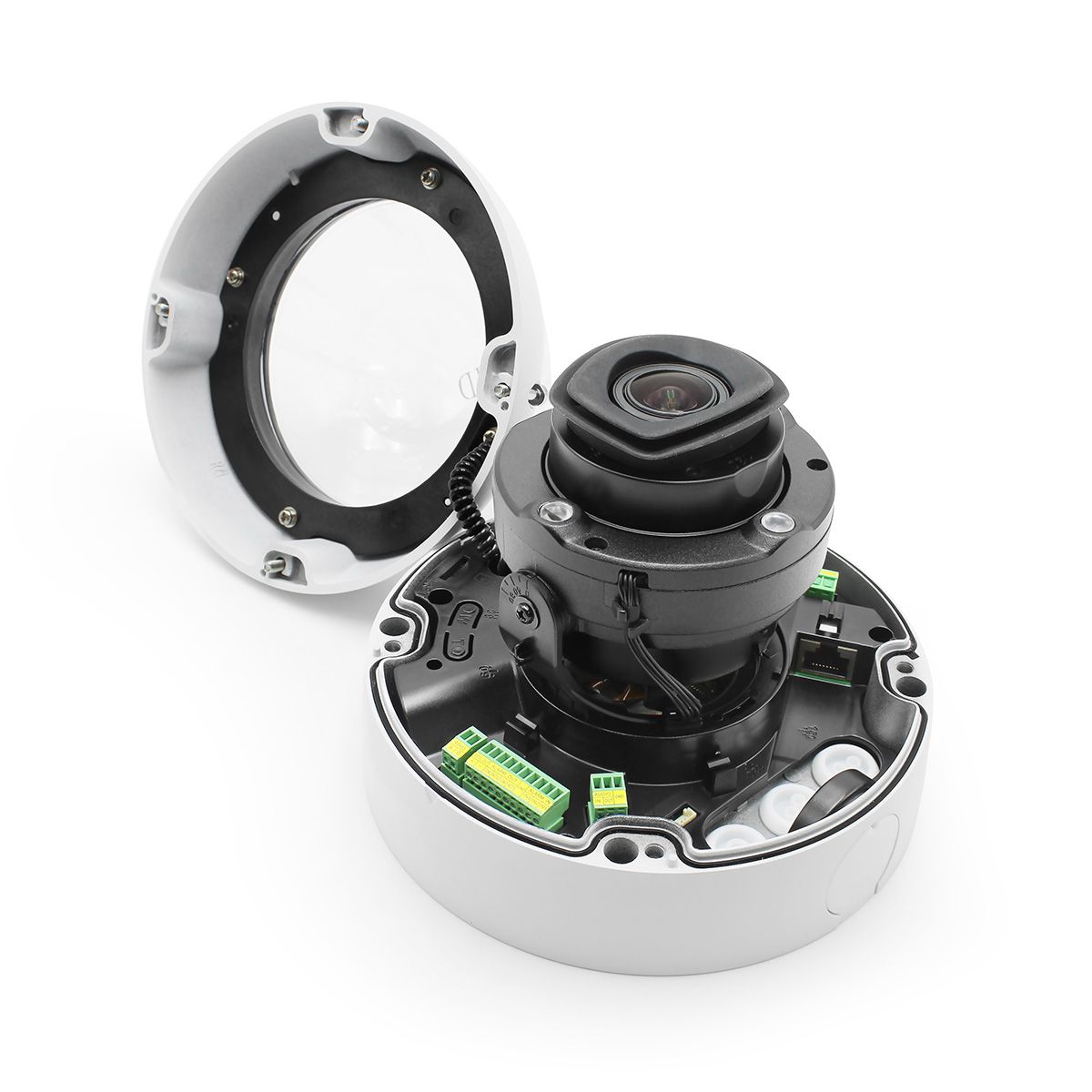

IC Realtime’s IPEL-D12V-IRW2 is a 12MP Ultra HD Vandal-proof Dome camera featuring a 1/1.7” CMOS high image definition image sensor paired with a 2.7-12mm motorized varifocal lens. It outputs 12MP (4000 × 3000) @25/30 fps with H.265 support for optimized storage. In addition, the camera features an IR distance up to 131 feet and enclosed in an IP67 weatherproof and IK10 rated casing. The camera also comes equipped with a 256GB Micro SD card support for onboard storage.
This Elite series camera also sports an impressive AI suite with not only IVS and People Counting, but also Perimeter Protection, which features human/ vehicle recognition. This helps to drastically reduce false positive triggers. Working with other AI enabled recorders, the camera also supports Face Detection and Recognition technology with a built-in Face database.
ICRealtime IPEL-D12V-IRW2 Camera Features
- 1/1.7” CMOS Starvis: Captures high-quality images even in low-light conditions, enhancing night surveillance capabilities.
- 12MP Resolution: Delivers ultra-high definition video at 30fps, ensuring clear and detailed footage for comprehensive monitoring.
- 2.7-12mm Motorized Varifocal Lens: Offers versatile focal length options, allowing for flexible installation in various environments.
- Max. IR Length: 131ft: Features Smart IR with 3 IR LEDs for enhanced visibility in complete darkness, ideal for outdoor installations.
- Audio and Alarm Functionality: Supports 1ch audio in and out, as well as alarm inputs and outputs for integrated security systems.
- Advanced AI Features: Includes IVS, Perimeter Protection, and Face Detection, significantly reducing false alarms and improving security response.
- IP67 and IK10 Rating: Ensures durability and resistance to harsh weather conditions and vandalism, making it suitable for both indoor and outdoor use.
- 256GB Micro SD Support: Allows for onboard storage of video footage, facilitating easy retrieval and backup of important data.
ICRealtime IPEL-D12V-IRW2 Detailed Specifications
| Feature | Details |
| Sensor Type | 1/1.7" CMOS Starvis |
| Resolution | 12 Megapixels (4000 × 3000) |
| Frame Rate | 30 fps @ 12MP |
| Lens Type | 2.7-12mm Motorized Varifocal |
| Field of View (AoV) | 103° to 44° |
| IR Distance | Max. 131ft |
| Audio Input/Output | 1ch Audio In / 1ch Audio Out |
| Alarm Inputs/Outputs | 3 Ch Alarm In / 2 Ch Alarm Out |
| Storage Support | Up to 256GB Micro SD |
| Weatherproof Rating | IP67 |
| Vandal Resistance | IK10 |
| Power Supply | 12VDC, 24VAC or PoE+ (EPOE Support) |
Built-in Functions
- Audio
- Auto Gain Control
- Day/Night
- Digital Noise Reduction
- Automatic White Balance
- Back Light Compensation
- Motion Detection Tracking
- Privacy Masking
- Wide Dynamic Range
- Mirror
- ONVIF
Specifications
| SKU | IPEL-D12V-IRW2 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | ICRealtime |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 12 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264B, H.264H, H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE+, 12vDC, 24vAC |
| Automatic Gain Control (AGC) | Auto / Manual |
| Dimensions (W x H) | (5.08" × 6.22")129.1 mm × 157.9 mm |
| Electronic Shutter | Supported |
| Image Device | 1/1.7 12 Megapixel progressive scan CMOS |
| Image Pixels-Effective | 4000(H) x 3000(V) |
| IR LEDs | 3 |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | 0.01 [email protected] (Color, 30IRE)0.001 [email protected] (B/W, 30IRE)0 Lux (Illuminator on) |
| Operating Humidity | Less than 95% RH |
| Operating Temperature | –40°F to +140°F (–40°C to +60°C) |
| Power Consumption | Basic power consumption: 6.1W (12V DC); 6.1W (24VAC active power); 5.4W (PoE) Max. power consumption: 17.9W (12V DC); 17.1W(24V AC active power); 16.8W (PoE) |
| Privacy Zone | Off / On (4 Area Rectangle) |
| Protocols | HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Mirror | Off / On |
| Angle of View | Horizontal: 103°–44°, Vertical: 75°–33° |
| Motion Detection Tracking | Off / On (4 Zones Rectangular) |
| Back Light Compensation | BLC / HLC / DWDR |
| Automatic White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| IR Distance | 40m/131.2ft |
