ICRealtime IPFX-E20V-IRW1 2 Megapixel Starlight Eyeball Network IR Dome Camera, 2.7-13.5mm Lens
SKU
IPFX-E20V-IRW1

ICRealtime Model IPFX-E20V-IRW1

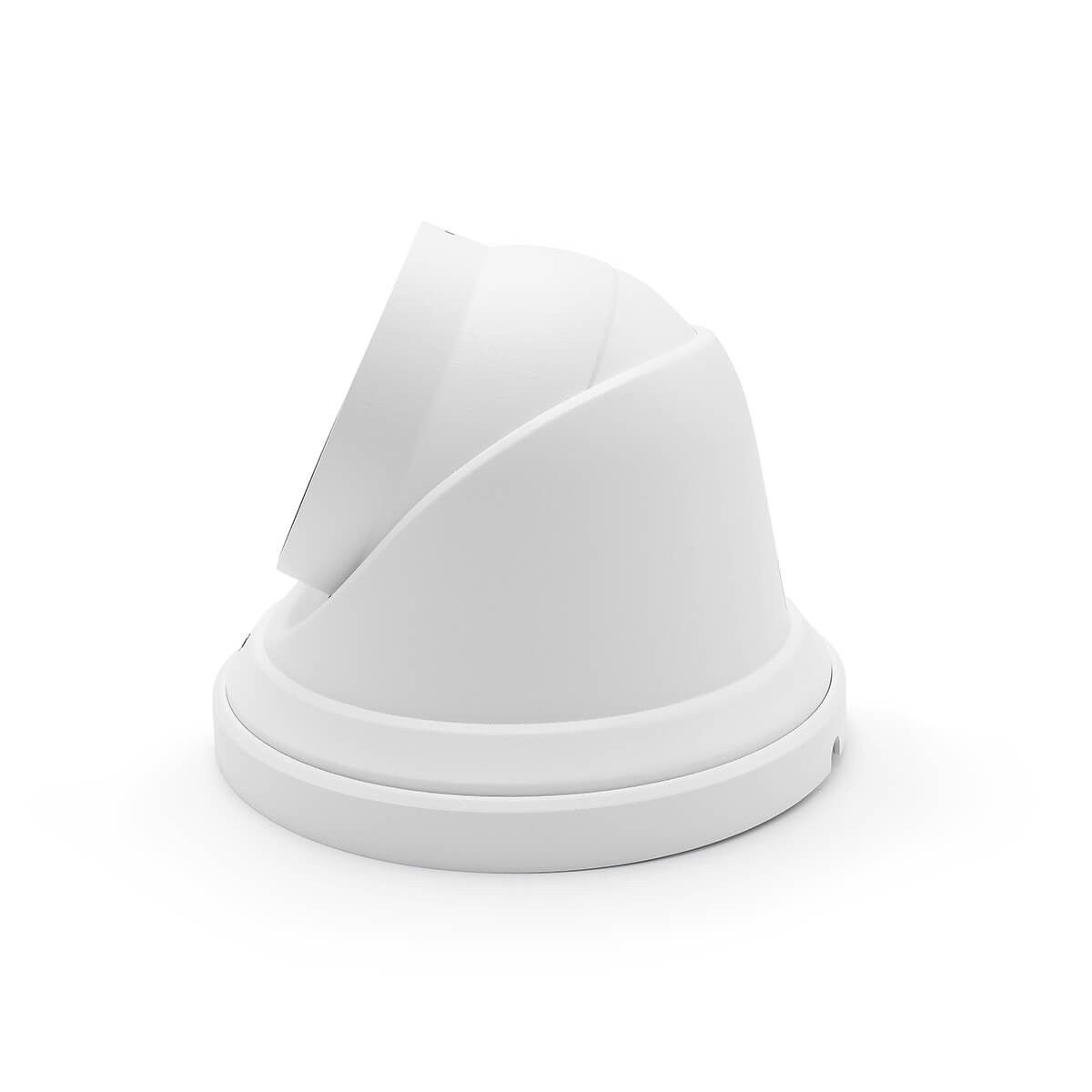

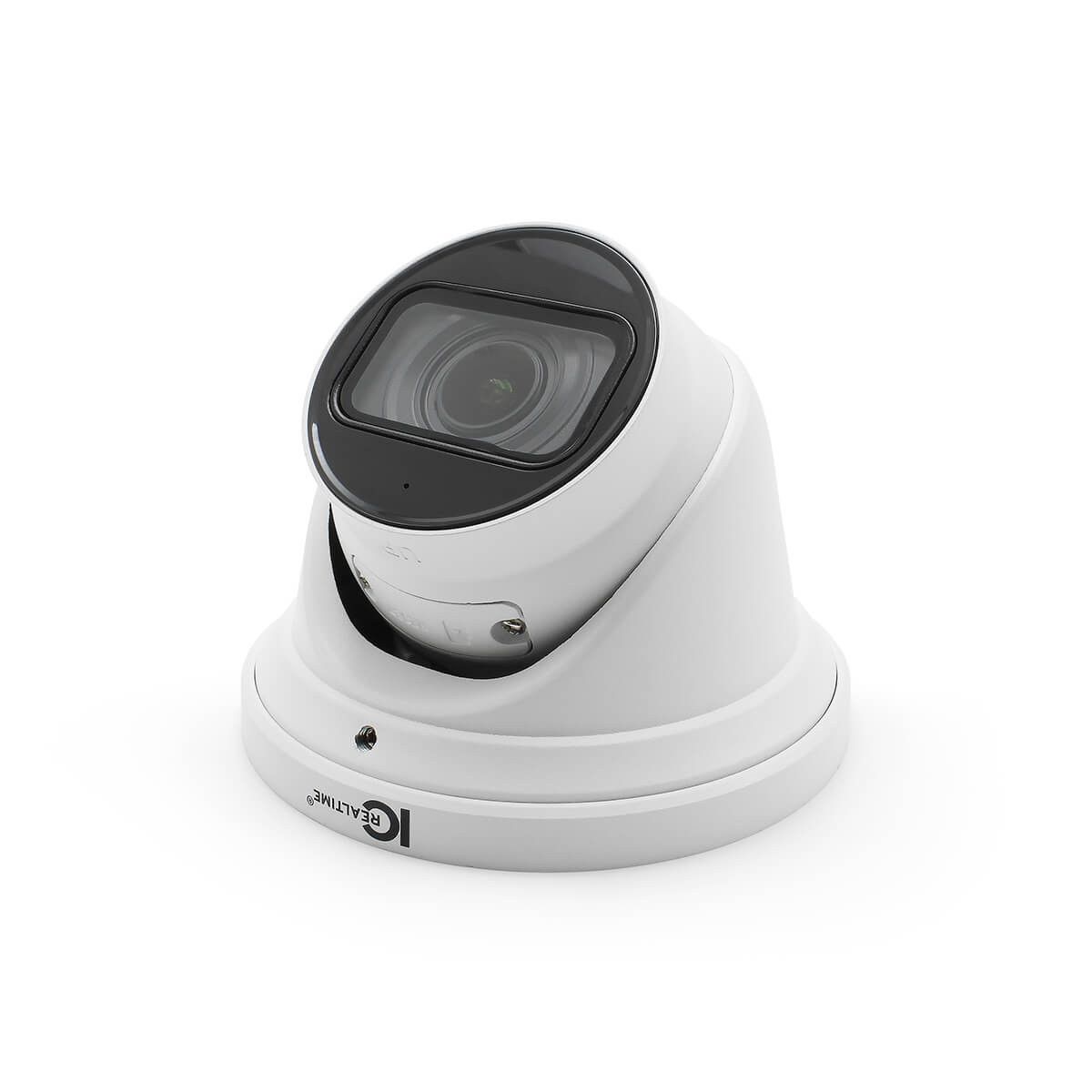

ICRealtime IPFX-E20V-IRW1 2 Megapixel Starlight Eyeball Network IR Dome Camera, 2.7-13.5mm Lens

  • 2MP
  • 2.7–13.5mm
  • Night Vision
Free shipping over $450
Model No
IPFX-E20V-IRW1
$340.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
  • H.265 & H.264 triple-steam encoding
  • Outputs max. 2MP (1920 × 1080)@30 fps
  • Intelligent Motion Detect and Perimeter Protection
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC

Overview

The IPFX-E20V-IRW1 is a cutting-edge 2 Megapixel Eyeball Network IR Dome Camera designed for superior performance in various lighting conditions. Equipped with a sophisticated 1/2.8″ low illuminance CMOS sensor and a versatile 2.7mm-13.5mm motorized varifocal lens, this camera excels in low-light environments thanks to its Starlight technology and impressive IR capabilities. Enhanced with intelligent motion detection and perimeter protection, it reduces false alarms while providing high-definition video output, ensuring a reliable surveillance solution for any setting.

ICRealtime IPFX-E20V-IRW1 Camera Features

  • 2MP, 1/2.8″ CMOS Image Sensor: Delivers high image definition with excellent low light performance for clear visuals.
  • H.265 & H.264 Triple-Stream Encoding: Efficiently compresses video without sacrificing quality, optimizing bandwidth usage.
  • Outputs Max. 2MP (1920 - 1080)@30 fps: Provides smooth and clear video playback at high resolutions.
  • Intelligent Motion Detect and Perimeter Protection: Utilizes advanced AI algorithms to accurately recognize objects and reduce false alerts.
  • WDR (120dB), Day/Night (ICR), 3DNR, AWB, AGC, BLC: Ensures optimal image quality in diverse lighting conditions with enhanced dynamic range and noise reduction.
  • Starlight Technology: Allows for exceptional low-light performance with vivid color images even in near darkness.
  • Max. IR LEDs Length 131 ft, Built-in Mic: Enhances night visibility and supports audio recording for comprehensive surveillance.
  • 256GB Micro SD Memory, IP67, PoE: Offers expandable storage, durability against environmental elements, and easy Power over Ethernet installation.

ICRealtime IPFX-E20V-IRW1 Detailed Specifications

Image Sensor2MP, 1/2.8″ CMOS
Lens2.7mm-13.5mm Motorized Varifocal
Video OutputMax. 1920 - 1080@30 fps
CompressionH.265 & H.264 Triple-Stream
Smart FeaturesIntelligent Motion Detect, Perimeter Protection
Night VisionStarlight, Max. IR Distance 131 ft
AudioBuilt-in Microphone
StorageSupport up to 256GB Micro SD
Weather ProofingIP67 Rating
PowerPower over Ethernet (PoE)

Built-in Functions

  • Audio
  • Auto Gain Control
  • Day/Night
  • Digital Noise Reduction
  • Automatic White Balance
  • Back Light Compensation
  • Motion Detection Tracking
  • Privacy Masking
  • Wide Dynamic Range
  • Mirror
  • ONVIF
  • Digital Zoom

Specifications

SKU  IPFX-E20V-IRW1
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  ICRealtime
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    2 Megapixel
Lens Type    Varifocal
Lens Size    2.7-13.5mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Weather Resistant
Voltage  12vDC, PoE
Automatic Gain Control (AGC)    Auto / Manual
Dimensions (W x H)  108.3 mm × 122 mm (4.3" × 4.8")
Electronic Shutter    Auto/Manual 1/3 s–1/100000 s
Image Device    1/2.8” 2 Megapixel progressive CMOS
Image Pixels-Effective1920 (H) ×1080 (V)
IR LEDs  2
Minimum Scene Illumination  0.002 [email protected]
Operating Humidity    Less than 95% RH
Operating Temperature    –30°C to +60°C (–22°F to +140°F)
Power Consumption  <7.8W
Privacy Zone    Off / On (4 Area, Rectangle)
Protocols  HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
S/N Ratio  > 56 dB
Scanning System    Progressive
Weatherproof    IP67
Digital Noise Reduction    3D DNR
Mirror    Off / On
Angle of View    Horizontal: 108°–28°, Vertical: 57° –16
Rotation Angle0°–360°
Motion Detection Tracking    Off / On (4 Zone, Rectangle)
Back Light Compensation  BLC / HLC / WDR (120dB)
Automatic White Balance    Auto/Natural/Street Lamp/Outdoor/Manual
IR Distance  40m/131.2ft
