ICRealtime Model IPMX-E40F-IRW3

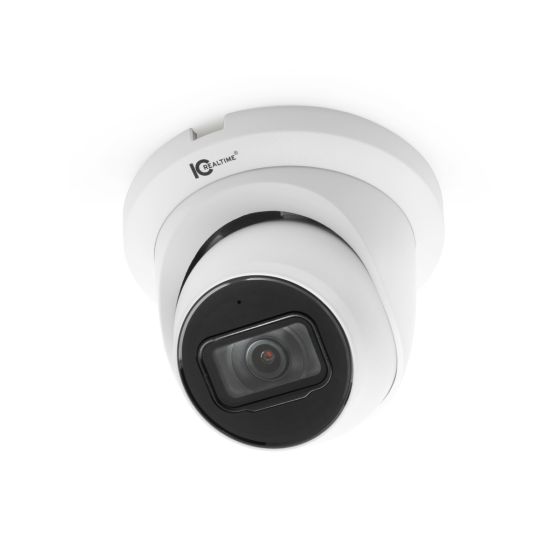

ICRealtime IPMX-E40F-IRW3 4 Megapixel Network IR Indoor/Outdoor Dome Camera with 2.8mm Lens
- 4MP
- 2.8mm
- AI
- Night Vision
- Outdoor
- 4MP, 1/3 CMOS image sensor Low illuminance, high image definition
- H.265 & H.264 triple-steam encoding|AI SSA
- Intelligent Motion Detect 2.0|Perimeter Protection
- 2.8 mm fixed lens Built-in Microphone
- Starlight support Max. IR LEDs Length 164 ft

Overview
IC Realtime's eyeball dome cameras have been our most popular camera design and a favorite with our integrators for years. Our new IRW3 version of IPMX-E40F combines a 4MP QHD Starlight video sensor and built-in audio mic with our latest cutting-edge iMD 2.0 AI metadata detection, all in an eyeball dome’s easy installation, flexible aiming, and low-profile design.
NEW AI FEATURES, SAME GREAT DESIGN
Outside, the IRW3 version of this Max Series E40F camera stays a compact 4.1" round and less than 3.7" high. Its sealed metal “cam ball” continues to bring IP67 weather resistance. But inside, IC Realtime’s next-generation of FlexSmartAi detection features have been added. Our new AI-enhanced Intelligent Motion Detection (iMD 2.0) lets the E40F add a new stream beyond the camera’s incredible video feed. The camera now discerns streams frame-by-frame image metadata. When recorded by an IC Realtime AI NVR equipped with our "select click" multi-channel Object Search, this metadata lets the NVR find your selection on every channel equipped with an IC Realtime's iMD 2.0 AI camera.
ICRealtime IPMX-E40F-IRW3 Camera Features
- 4MP, 1/3” CMOS Image Sensor: Low illuminance and high image definition provide clear and detailed footage even in low light.
- H.265 & H.264 Triple-Stream Encoding: Efficient video compression technology saves bandwidth while delivering high-quality video.
- Intelligent Motion Detection 2.0: Advanced mechanism enhances security by recognizing and monitoring motion in designated areas.
- 2.8mm Fixed Lens: Ensures a wide field of view, making it ideal for various indoor and outdoor settings.
- Built-in Microphone: Captures audio alongside video for a comprehensive surveillance experience.
- Starlight Support with Up to 164 ft IR LEDs: Provides superior night vision capabilities, allowing for effective monitoring in complete darkness.
- 256GB Micro SD Support: Enables extensive local storage options for recorded footage.
- IP67 Weather Resistance: Designed for outdoor use, resistant to dust and water for reliable performance in harsh conditions.
- Power over Ethernet (PoE): Simplifies installation by allowing the camera to receive power and data through a single cable.
ICRealtime IPMX-E40F-IRW3 Detailed Specifications
| Camera Type | Indoor/Outdoor Dome |
| Resolution | 4 Megapixels |
| Image Sensor | 1/3” CMOS |
| Lens | 2.8mm Fixed Lens |
| Starlight Technology | Yes |
| Audio | Built-in Microphone |
| IR Night Vision | Up to 164 ft |
| Weather Resistance | IP67 |
| Video Compression | H.265 & H.264 Triple-Stream |
| Storage Support | 256GB Micro SD |
| Power Supply | Power over Ethernet (PoE) |
Built-in Functions
- Audio
- Auto Gain Control
- Day/Night
- Digital Noise Reduction
- Automatic White Balance
- Back Light Compensation
- Wide Dynamic Range
- Mirror
- ONVIF
Specifications
| SKU | IPMX-E40F-IRW3 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Wide Dynamic Range |
| Manufacturer | ICRealtime |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264B, H.264H, H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto / Manual |
| Dimensions (W x H) | 3.69" × Φ4.17" (93.6 mm × Φ106.0 mm) |
| Image Device | 1/3” CMOS |
| Image Pixels-Effective | 2688 (H) ×1520 (V) |
| IR LEDs | 2 |
| Minimum Scene Illumination | 0.005 [email protected] (Color, 30 IRE)0.0005 [email protected] (B/W, 30 IRE)0 lux (Illuminator on) |
| Operating Humidity | -40°C to +60°C (-40°F to +140°F)/ less than≤95% |
| Operating Temperature | –40°F to 140°F (–40°C to +60°C) |
| Power Consumption | Basic: 3.3 W (12 VDC); 4.2 W (PoE)Max. (WDR + IR intensity + Intelligence): 7.1 W (12 VDC); 7.9 W (PoE) |
| Protocols | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
| Scanning System | Progressive |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal:102°; Vertical: 54° |
| Rotation Angle | Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360° |
| Back Light Compensation | BLC / HLC / WDR(120dB) |
| Automatic White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| IR Distance | 50m/164ft |
