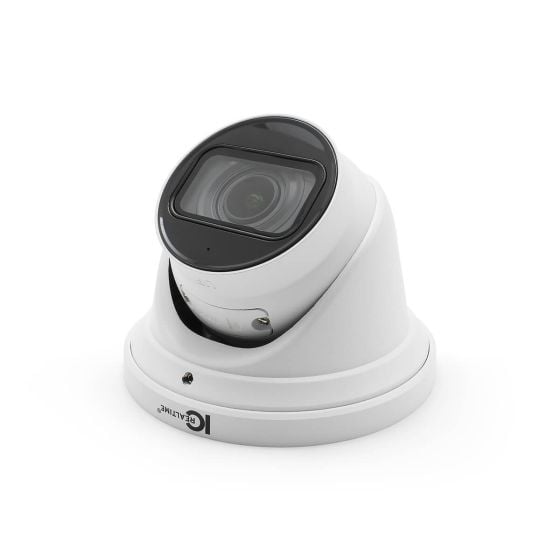

ICRealtime IPFX-E40V-IRW1 4 Megapixel Starlight Eyeball Network IR Dome Camera, 2.7-13.5mm Lens
SKU
IPFX-E40V-IRW1
Model No
IPFX-E40V-IRW1
$513.99
Product Highlights
- 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
- H.265 & H.264 triple-steam encoding
- Outputs max. 4MP (2688 × 1520)@30 fps
- Intelligent Motion Detect and Perimeter Protection
- WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC

Speak to an expert
The ICRealtime IPFX-E40V-IRW1 is a state-of-the-art 4MP varifocal eyeball network IR dome camera designed to deliver exceptional performance in both daytime and low light conditions. With its advanced features like a 2.7-13.5mm motorized lens, Starlight technology, and intelligent motion detection, this camera ensures high-definition surveillance and enhanced security. The built-in microphone and H.265 compression contribute to efficient storage and clear audio functionality, while the rugged IP67 design ensures durability in various environmental conditions.
ICRealtime IPFX-E40V-IRW1 Camera Features
- 4MP Image Sensor: The 1/3″ low illuminance, high image definition sensor captures crisp, clear images, ideal for surveillance in diverse lighting conditions.
- Triple-Stream Encoding: Supports H.265 & H.264 encoding for flexible streaming options, allowing optimal balance between video quality and bandwidth usage.
- High Frame Rate: Outputs a maximum resolution of 4MP (2688 - 1520) at 30 fps, ensuring smooth video playback without motion blur.
- Intelligent Motion Detection: Features AI-driven motion detection and perimeter protection that significantly reduces false alarms, enhancing security efficacy.
- Wide Dynamic Range: WDR (120dB) enhances image quality in high-contrast lighting, producing clearer images and better visibility.
- Starlight Technology: Provides excellent low-light performance with infrared LEDs extending up to 131 ft, allowing for night-time surveillance.
- Durability and Flexibility: Equipped with a built-in microphone, Micro SD memory support, IP67 protection, and PoE capabilities for easy installation and reliable performance.
ICRealtime IPFX-E40V-IRW1 Detailed Camera Specifications
| Image Sensor | 4MP, 1/3″ Low Illuminance CMOS |
| Lens | 2.7-13.5mm Motorized Varifocal Lens |
| Max Resolution | 2688 - 1520@30 fps |
| Compression | H.265 & H.264 Triple-Stream |
| Special Features | Intelligent Motion Detect, Perimeter Protection, Starlight, WDR, 3DNR |
| Night Vision | Max. IR LEDs Length 131 ft |
| Audio Capability | Built-In Microphone |
| Storage Support | Micro SD Memory |
| Protection Rating | IP67 |
| Power Supply | PoE |
| SKU | IPFX-E40V-IRW1 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ICRealtime |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-13.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto / Manual |

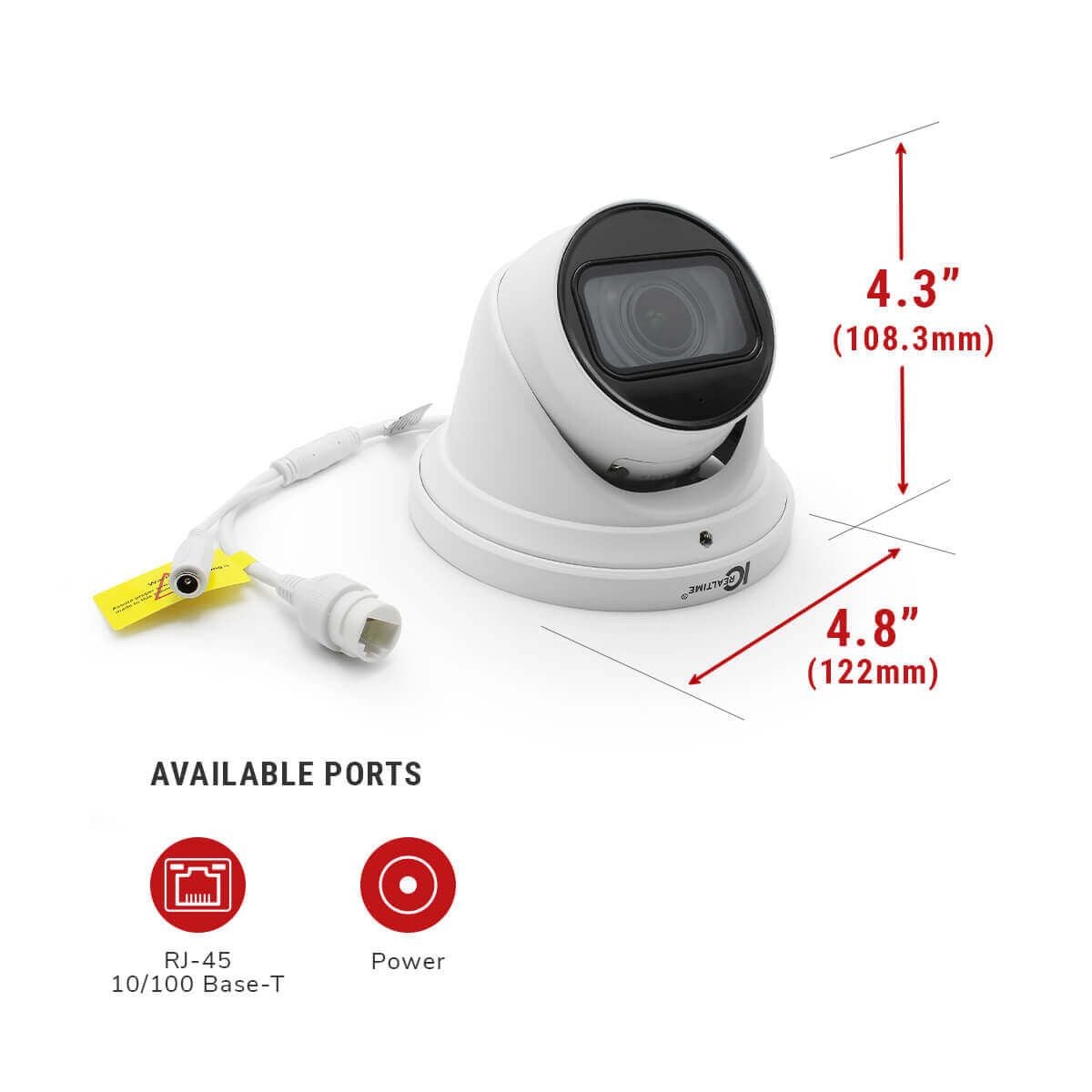

| Dimensions (W x H) | 108.3 mm × 122 mm (4.3" × 4.8") |
| Electronic Shutter | Auto/Manual 1/3 s–1/100000 s |
| Image Device | 1/3” 4 Megapixel progressive CMOS |
| Image Pixels-Effective | 2688 (H) ×1520 (V) |
| IR LEDs | 2 |
| Minimum Scene Illumination | 0.005 [email protected] |
| Operating Humidity | Less than 95% RH |
| Operating Temperature | –30°C to +60°C (–22°F to +140°F) |
| Power Consumption | <8.3W |
| Privacy Zone | Off / On (4 Area, Rectangle) |
| Protocols | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP |
| S/N Ratio | > 56 dB |
| Scanning System | Progressive |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Mirror | Off / On |
| Angle of View | Horizontal: 104°–27°, Vertical: 55° –15° |
| Rotation Angle | 0°–360° |
| Motion Detection Tracking | Off / On (4 Zone, Rectangle) |
| Back Light Compensation | BLC / HLC / WDR (120dB) |
| Automatic White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| IR Distance | 40m/131.2ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
