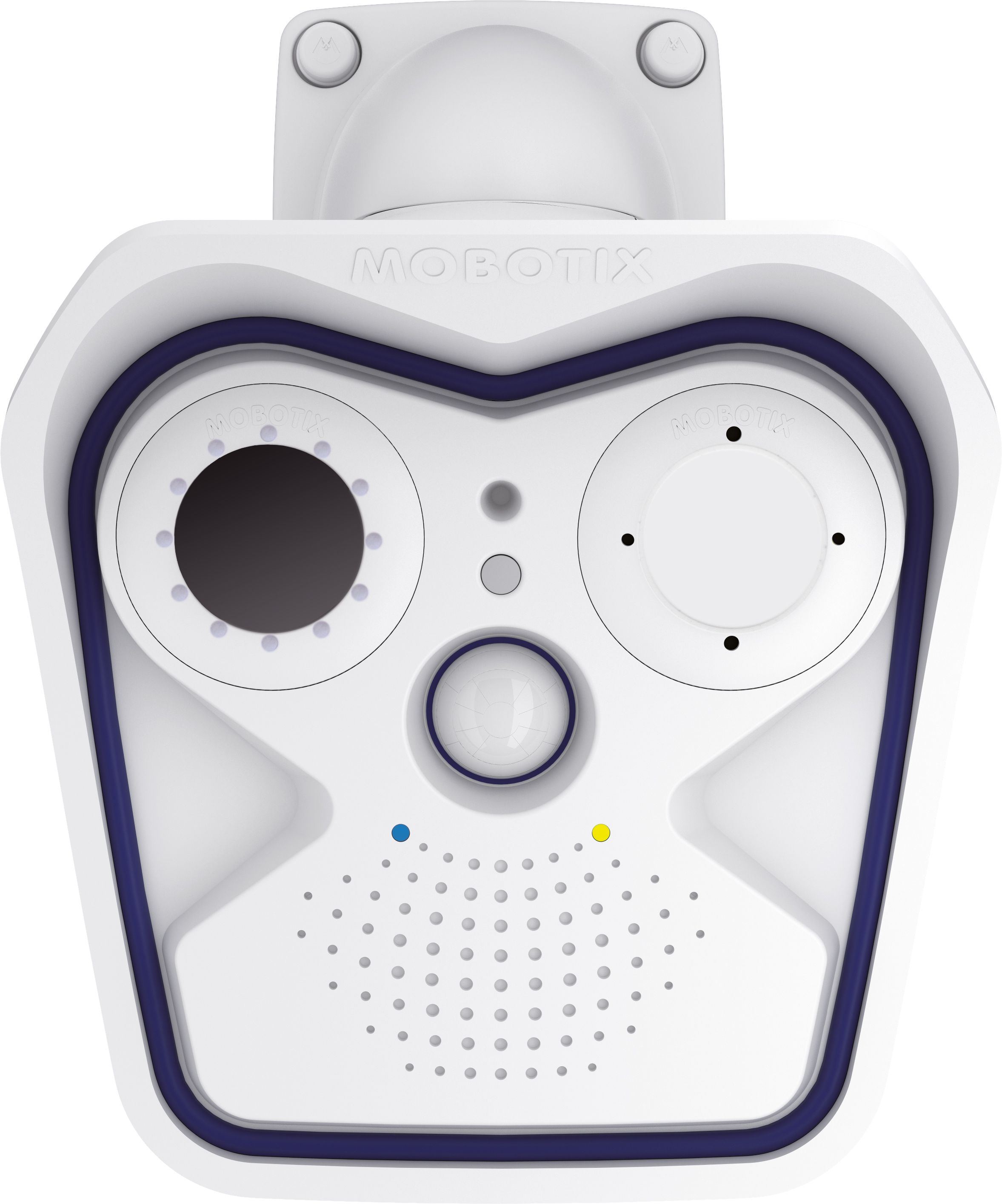

Mobotix MX-M15D-Thermal-L43 IP Thermographic Network Camera 6 Megapixel L43 Sensor Module
SKU
MX-M15D-Thermal-L43
Model No
MX-M15D-Thermal-L43
$5,740.33
Product Highlights
- High-end thermografic camera with L43 thermal sensor of typically 50 mK and Max. image size (Thermal image) 336 x 252 pixel
- Temperature measuring range of -40 to +550°C/-40 to +1022°F
- The thermal sensor is capable of detecting in complete darkness and/or through smoke, smog, or a thin plastic film (limited during thick fog); applications include border protection: view of the sea in coastal areas, ships in the distance can be recognized in hazy conditions.
- The combination with the MxActivitySensor in particular delivers extremely reliable video analysis results of person/vehicle movements, as it is now possible to block out disruptive factors such as regular movements of "cold" objects such as bushes, grass, water, clouds, waves etc.
- No glare from strong sources of light (such as headlights, hand-held lamps).
Speak to an expert
The MX-M15D-Thermal-L43 from Mobotix is a weatherproof thermographic PoE camera for detection plus a 6 MP sensor module for identification. The M15-Thermal comes standard with a thermal image sensor and a dummy module (to remain weatherproof to IP66). This network camera provides an entirely new range of applications. Combined with the elaborate array of camera sensors (PIR sensor, microphone, etc.) and the analytic capabilities of the camera software (MxActivitySensor, video motion detection, event logic, etc.), it is now possible to detect, for example, moving persons even in total darkness. The different display options of the thermographic image sensor (off-color/black & white) add to the existing possibilities for analyzing and using the generated images.
Mobotix MX-M15D-Thermal-L43 Camera Features
- High-end thermographic camera: The L43 thermal sensor provides a sensitivity of typically 50 mK, enabling precise temperature readings for enhanced analysis.
- Temperature measuring range: Capable of measuring temperatures from -40 to +550°C/-40 to +1022°F, making it suitable for a variety of environments and conditions.
- Night vision capability: The thermal sensor can detect objects in complete darkness and through obstructions like smoke and fog, ideal for surveillance in low visibility.
- MxActivitySensor integration: Provides reliable video analysis by filtering out irrelevant movements, ensuring accurate detection of persons and vehicles.
- No glare detection: Effectively works in bright conditions without being affected by strong light sources like headlights.
- Body temperature detection: Capable of identifying overheated body parts or technical devices, useful for monitoring equipment and safety.
- Energy-efficient: Operates with a low power consumption of just 5.5 W while utilizing both the thermal and 6 MP sensors.
- User-friendly software configuration: Allows thermal image settings to be adjusted via a web browser, compatible with various Mobotix user software applications.
Mobotix MX-M15D-Thermal-L43 Detailed Specifications
| Image Sensor | L43 Thermal Sensor Module |
| Max Image Size | 336 x 252 pixels (Thermal Image) |
| Temperature Measuring Range | -40 to +550°C/-40 to +1022°F |
| Power Consumption | Max. 5.5 W |
| Weatherproof Rating | IP66 |
| Analytic Features | MxActivitySensor, Video Motion Detection, Event Logic |
| Configuration Method | Web Browser Interface |
SKU  | MX-M15D-Thermal-L43 |
|---|---|
| Features | Motion Detection Tracking, Weather Resistant |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 6 Megapixel |
| Lens Type | Fixed |
| Lens Size | 7.9mm |
| Mount Type | Wall |
| Compression Method | JPEG |
| Durability | Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | W x H x D with wall mount: 158 x 244 x 239 mm |
| Image Device | 1/2.5“ CMOS, 5 MP (2592x1944 pixels), progressive scan |
| Operating Temperature | -30 to 60°C/-22 to 140°F |
| Power Consumption | < 5 W |
| Weatherproof | IP66 |
| Audio | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
