ICRealtime IPMX-E20F-IRB2 2 Megapixel Starlight Eyeball Network IR Dome Camera, 2.8mm Lens
SKU
IPMX-E20F-IRB2
Model No
IPMX-E20F-IRB2
$382.00
Product Highlights
- 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
- H.265 & H.264 triple-steam encoding
- Outputs 2MP (1920 × 1080)@30 fps
- Intelligent Motion Detect and Perimeter Protection
- WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
Speak to an expert
The ICRealtime IPMX-E20F-IRB2 is a high-performance 2 Megapixel Starlight Eyeball Network IR Dome Camera designed for versatile surveillance needs. Equipped with advanced 1/2.8'' CMOS sensors, this camera delivers crisp 1080P video at 30 fps utilizing H.265 encoding for efficient storage. Its Intelligent Motion Detect feature enhances security by providing smart alerts, while Starlight technology ensures clear imaging in low-light conditions up to 164 feet. With robust WDR capabilities and a durable IP67 rating, this camera is perfect for both indoor and outdoor installations.
ICRealtime IPMX-E20F-IRB2 Camera Features
- 2MP Image Sensor: Low illuminance performance combined with high image definition ensures clear footage in various lighting conditions.
- Triple-Stream Encoding: H.265 & H.264 encoding allows for flexible bandwidth management and efficient storage usage.
- High Frame Rate: Outputs 2MP (1920 - 1080) at 30 fps for real-time monitoring without lag.
- Intelligent Motion Detection: Offers advanced perimeter protection, including tripwire and intrusion alerts, enhancing security monitoring.
- Wide Dynamic Range: True WDR (120dB) enables the camera to capture clear images in challenging lighting environments.
- Fixed 2.8 mm Lens: Provides a 106-degree horizontal field of view, making it ideal for comprehensive monitoring.
- Starlight Support: Excellent low-light performance with IR illumination reaching up to 164 feet for nighttime visibility.
- Robust Durability: IP67 weatherproof rating and Power over Ethernet (PoE) support for versatile installation options.
ICRealtime IPMX-E20F-IRB2 Detailed Camera Specifications
| Image Sensor | 2MP, 1/2.8″ CMOS |
| Resolution | 1920 - 1080 |
| Frame Rate | 30 fps |
| Encoding | H.265 & H.264 |
| Dynamic Range | 120 dB (True WDR) |
| Lens | 2.8mm fixed |
| Field of View | 106 degrees (horizontal) |
| IR Range | Max. 164 ft |
| Protection Rating | IP67 |
| Power Supply | PoE |
SKU  | IPMX-E20F-IRB2 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ICRealtime |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |

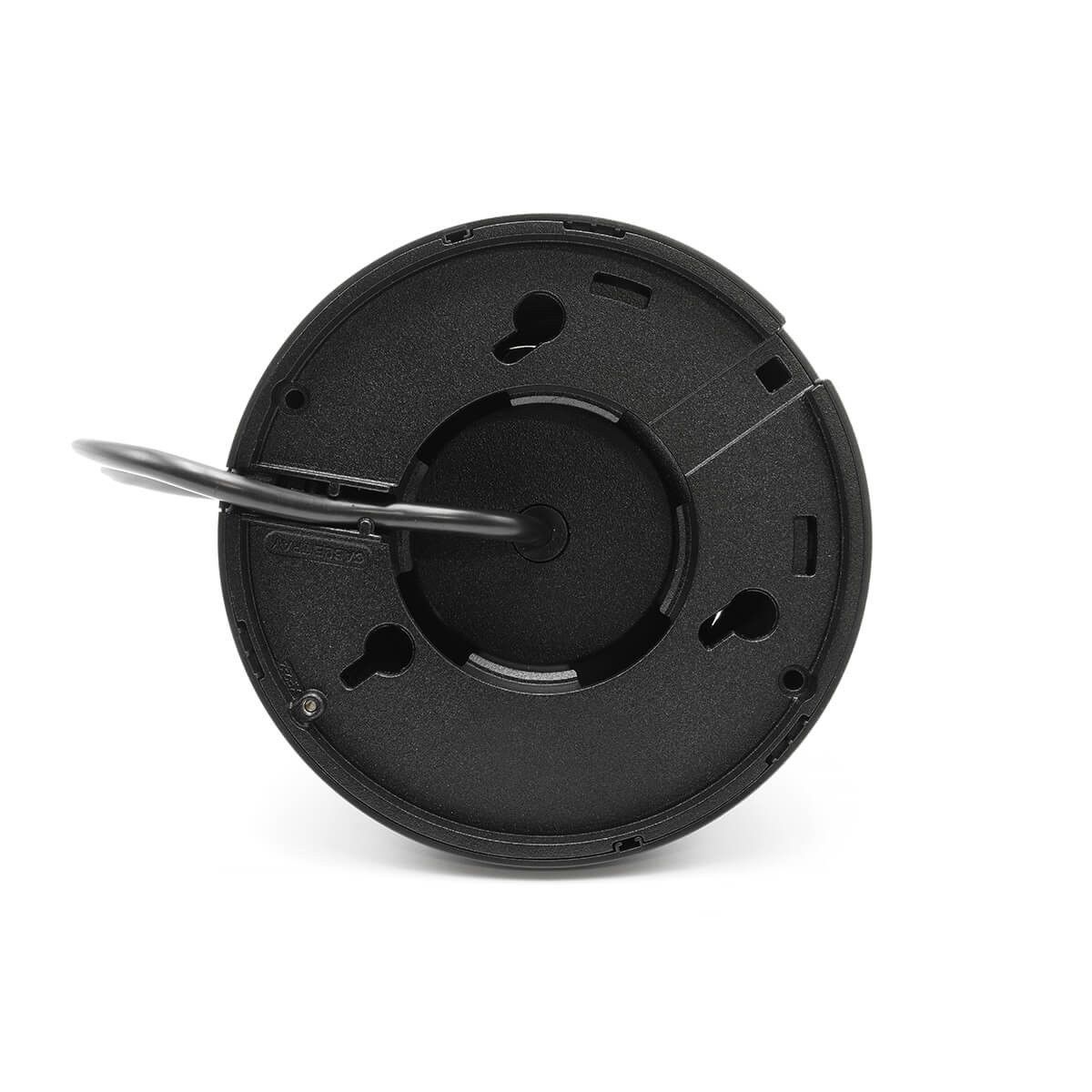

| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto / Manual |

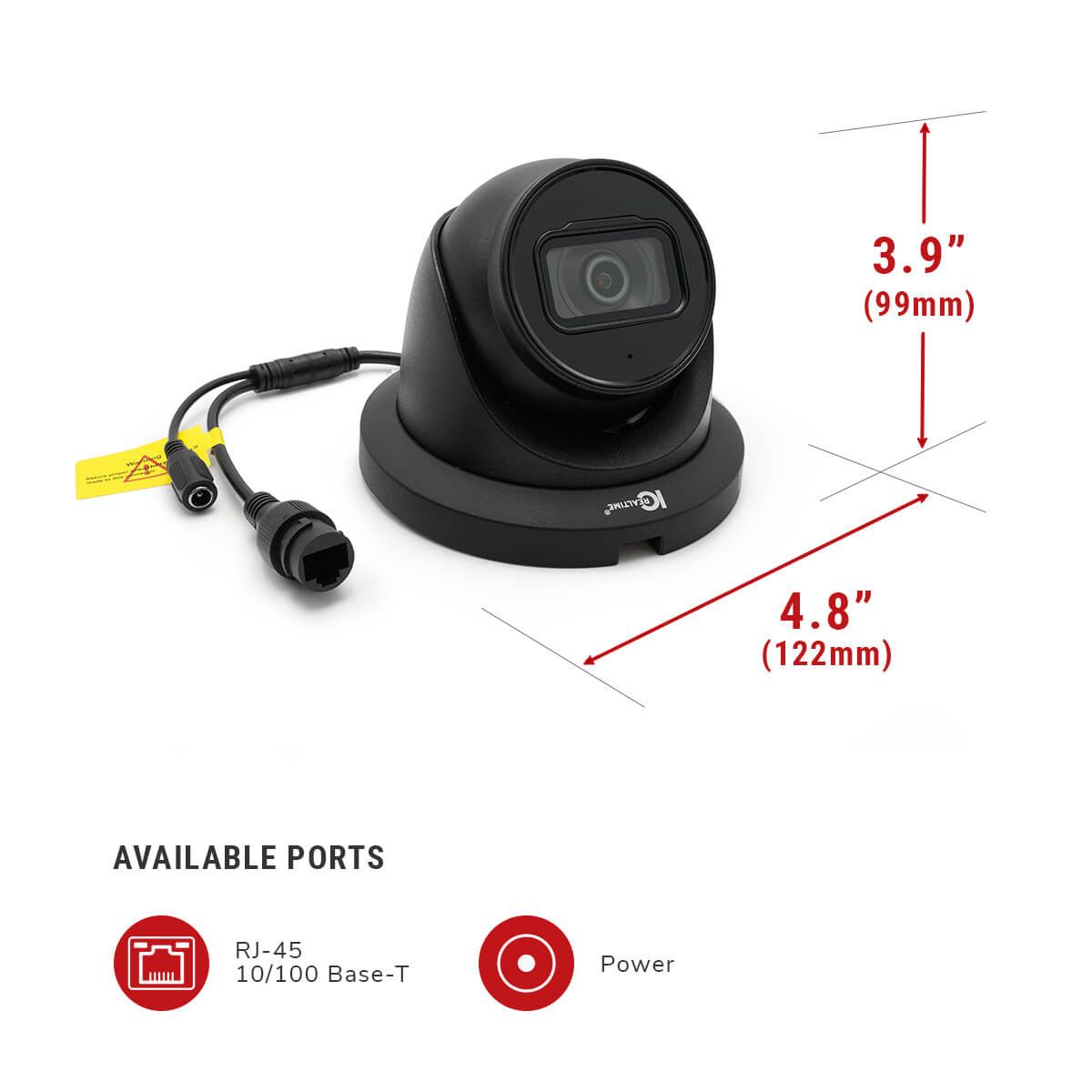

| Dimensions (W x H) | 99.1 mm × 121.9 mm (3.9" × 4.8") |
| Electronic Shutter | Auto/Manual 1/3 s–1/100000 s |
| Image Device | 1/2.8” 2 Megapixel progressive scan CMOS |
| Image Pixels-Effective | 1920(H) x 1080(V), 2 Megapixels |
| IR LEDs | 2 |
| Minimum Scene Illumination | 0.002 [email protected] |
| Operating Humidity | Less than≤95% |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Power Consumption | <7.7W |
| Privacy Zone | Off / On (4 Area, Rectangle) |
| Protocols | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP |
| S/N Ratio | > 56 dB |
| Scanning System | Progressive |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Mirror | Off / On |
| Angle of View | Horizontal: 106°, Vertical: 57°, Diagonal: 126° |
| Rotation Angle | 0°–360° |
| Motion Detection Tracking | Off / On (4 Zone, Rectangle) |
| Back Light Compensation | BLC / HLC / WDR (120dB) |
| Automatic White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| IR Distance | 50m/164.0ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
