Wireless Receiver
-
Linear 2GIG-VAR-RECU Vario 2GIG Wireless Receiver
- Power: 13 V DC +/- 10%
- Current Consumption: Typical 40 mA, Maximum 65 mA
- Main Panel Connection: RS485, 4 Wire Bus, up to 1,000 ft. (300m) from Main Panel
- Relay Outputs: Two 12 V DC @ 1 A Max, Dry Contract Relays
- Frequency: 345 MHz
-
Camden Door Controls CM-RX-92 Full Function Dual Relay Receiver, 12/24V AC/DC
- Full Function Dual Relay Receiver, 12/24V AC/DC
-

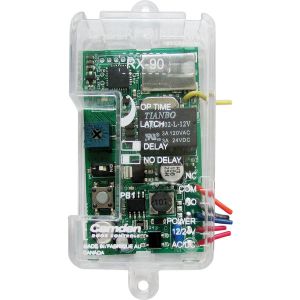

Camden Door Controls CM-RX-90 Advanced Compact Single Relay Receiver
- Advanced Compact Single Relay Receiver
-
Linear 2GIG-VAR-BOX Vario Panel Enclosure
- Material: Polycarbonate
- Tamper: Front door tamper included, Wall mount tamper available
- Dimensions: 9.92” W x 11.42” H x 3.74” D (252mm W x 290mm H x 95mm D)
- Operating Temperature: 14°F to 131°F (-10°C to 55°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
-
Camden Door Controls CV-TACIP-6RX 6 Channel Wiegand Wireless Receiver
- 6 Channel Wiegand Wireless Receiver
-
Linear 2GIG-VAR-RECH Honeywell Wireless Receiver
- Power: 8V DC to 14V DC
- Current Consumption: Typical 40 mA, Maximum 65 mA
- Main Panel Connection: RS485, 4 Wire Bus, up to 1,000 ft. (300m) from Main Panel
- Relay Outputs: Two 12 V DC @ 1 A Max, Dry Contract Relays
- Frequency: 345 MHz
