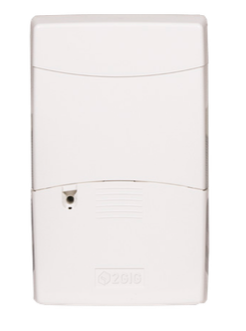

Linear 2GIG-VAR-RECU Vario 2GIG Wireless Receiver

The 2GIG-VAR-RECU Vario Wireless Receiver offers exceptional performance and flexibility for your security system. With two on-board Form C, NO/NC relays and proprietary RF jam protection, this receiver ensures reliable communication and robust coverage. Easily integrated into existing setups, its impressive range and compact design make it an optimal choice for enhancing your security infrastructure.

2GIG-VAR-RECU Receiver Features

• Power: 13 V DC +/- 10%, ensuring stable operation across various conditions.
• Current Consumption: Typical 40 mA, Maximum 65 mA for efficient energy management.
• Main Panel Connection: RS485, 4 Wire Bus, supports distances up to 1,000 ft. (300m) from Main Panel for flexible installation.
• Relay Outputs: Two 12 V DC @ 1 A Max, Dry Contract Relays provide versatile connectivity options.
• Frequency: 345 MHz, compatible with all 2GIG wireless sensors for enhanced security integration.
• Dimensions: 3.07” W x 4.9” H x 1” D, compact design for easy placement.
• Operating Temperature: 32°F to 120°F (0°C to 49°C), ensuring reliability in a range of environments.
• Storage Temperature: -4°F to 140°F (-20°C to 60°C), suitable for various storage conditions.

Detailed Specifications for 2GIG-VAR-RECU
