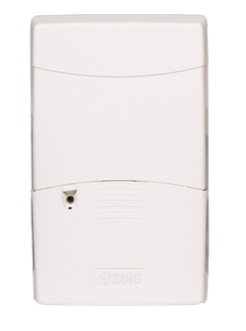

Linear 2GIG-VAR-RECH Honeywell Wireless Receiver

SKU
2GIG-VAR-RECH
Linear 2GIG-VAR-RECH Honeywell Wireless Receiver 2GIG-VAR-RECH by Linear
Linear 2GIG-VAR-RECH Honeywell Wireless Receiver 2GIG-VAR-RECH by Linear
Model No
2GIG-VAR-RECH
$132.99
Qty:
Product Highlights
    • Power: 8V DC to 14V DC
    • Current Consumption: Typical 40 mA, Maximum 65 mA
    • Main Panel Connection: RS485, 4 Wire Bus, up to 1,000 ft. (300m) from Main Panel
    • Relay Outputs: Two 12 V DC @ 1 A Max, Dry Contract Relays
    • Frequency: 345 MHz

The 2GIG-VAR-RECH has two on-board Form C, NO/NC relays. The receiver is installed as a Vario BUS device, allowing the receiver to be installed in an optimal area to maximize wireless range.

Features

  • Power: 8V DC to 14V DC
  • Current Consumption: Typical 40 mA, Maximum 65 mA
  • Main Panel Connection: RS485, 4 Wire Bus, up to 1,000 ft. (300m) from Main Panel
  • Relay Outputs: Two 12 V DC @ 1 A Max, Dry Contract Relays
  • Frequency: 345 MHz
  • Dimensions: 3.07” W x 4.9” H X 1” D
  • 75 mm W x 125 mm H x 25 mm D)
  • Operating Temperature: 32°F to 120°F (0°C to 49°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
SKU  2GIG-VAR-RECH
Manufacturer  Linear
