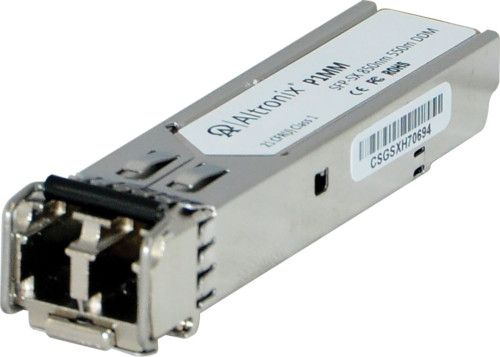

Altronix P1MM Small Form-Factor Pluggable (SFP) Multi-Mode Transceiver

The P1MM from Altronix is a state-of-the-art hot-pluggable SFP fiber transceiver module, perfect for seamless integration with all Altronix Spectrum fiber optic equipment. It supports 1G transmission rates over Multi-Mode Fiber, allowing for distances up to 550 meters. Ideal for network setups requiring reliable and efficient connectivity, this transceiver ensures optimal performance with recommended pairing for enhanced stability.

Altronix P1MM Features

• Compliance: IEEE 802.3a compliant for standard network integration.
• Distance Capability: Spans up to 550m (1804 ft.), ideal for various installation scenarios.
• Plug-and-Play: Conforms to (SFP) Small Form-Factor Pluggable Multi-Source Agreement, ensuring compatibility.
• Connector Type: LC Duplex for easy and secure connections.
• High Data Rate: Supports data rates up to 1.25Gbps for fast and efficient data transmission.
• Laser Technology: Utilizes 850nm VCESL Laser Transmitter for effective signal delivery.
• TX Power Range: Ranges from -18 to 0 dBm, offering flexibility in power requirements.
• RX Sensitivity Range: Ranges from -8 to -4 dBm, ensuring reliable incoming signal detection.
• Optimal Fiber Specifications: Supports a distance of 550m with 50/125 micron MMF for enhanced performance.

Altronix P1MM Standards

• Laser Safety: Class 1 FDA and IEC60825-1 Laser Safety Compliant, ensuring user safety.
• MSA Compliance: Fully compliant with MSA SFP Specification for universal compatibility.

Altronix P1MM Specifications
