Altronix NETWAYSP41BTWPN 4 Port Hardened 802.3bt 4 PPoE Switch
SKU
NETWAYSP41BTWPN
Model No
NETWAYSP41BTWPN
was $962.00 Special Price $830.00
Product Highlights
- Four (4) 10/100/1000 Mbps ports
- Connectivity: RJ45, auto-crossover
- Wire type: 4-pair CAT5e or higher structured cable
- Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
- ALOS LED indicates fiber connection for SFP port
- Heartbeat LED indicates proper operation of the unit
Speak to an expert

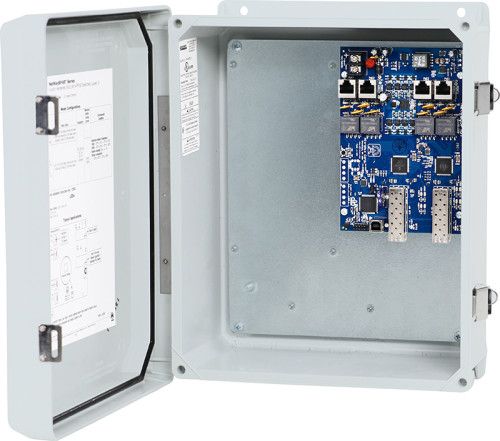

The Altronix NETWAYSP41BTWPN is a high-performance 4-port hardened 802.3bt PoE switch designed for reliable deployment of high-powered IP devices in remote locations. With a total power output of 320W and the ability to transmit data over long distances through its dual SFP ports, this switch is ideal for installations where power and data need to be delivered simultaneously over fiber or copper cabling.
Altronix NETWAYSP41BTWPN Key Features
- Power Output: Delivers up to 90W per port, supporting the latest high-powered devices and ensuring reliable operation in remote setups.
- Data Transmission: Equipped with two Gigabit SFP ports for long-distance data transmission while maintaining high performance.
- PoE Compliance: Compatible with IEEE 802.3af, 802.3at, and 802.3bt standards, providing flexibility for various devices.
- Temperature Resilience: Operates in extreme temperatures from -40ºC to 75ºC, making it suitable for challenging environments.
- Easy Installation: Comes with mounting hardware for straightforward setup, saving time and effort during installation.
Altronix NETWAYSP41BTWPN Detailed Specifications
| Feature | Details |
| Input Voltage | 48V-57V (UL Listed ITE power supply) |
| Output Ports | Four (4) 10/100/1000 Mbps Ethernet ports rated at 90W each (limited to 320W total power) |
| SFP Ports | Two (2) Gigabit SFP ports |
| Ethernet Connectivity | RJ45, auto-crossover |
| Wire Type | 4-pair CAT5e or higher structured cable |
| Network Speed | 10/100/1000 Mbps, half/full duplex, auto negotiation |
| Indicators (LED) | Individual PoE On LEDs, IP Link status, 10/100/1000 Base-T/active LEDs, ALOS LED for fiber, Heartbeat LED for operation indication |
| Operating Temperature | -40ºC to 55ºC (240W), -40ºC to 65ºC (180W), -40ºC to 75ºC (150W) |
| Storage Temperature | -40ºC to 85ºC |
| Relative Humidity | 85% +/-5% |
| Operating Altitude | - 304.8 to 2,000m |
| Included Accessories | Mounting hardware |
SKU  | NETWAYSP41BTWPN |
|---|---|
| Manufacturer | Altronix |
| Number of Outputs | 4 |
| Certification | CE |
