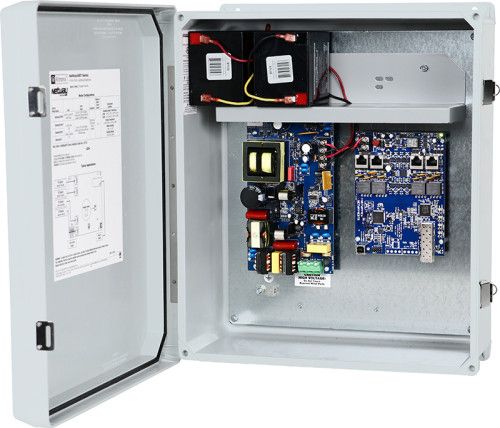

Altronix NETWAY4E1BTWPX 4 Port Hardened 802.3bt 4 PPoE Switch and Power Supply/Charger
SKU
NETWAY4E1BTWPX
Model No
NETWAY4E1BTWPX
$879.95
Product Highlights
- Four (4) 10/100/1000 Mbps ports
- Connectivity: RJ45, auto-crossover
- Wire type: 4-pair CAT5e or higher structured cable
- Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
- Fusing: 5A/250V
Speak to an expert
The Altronix NETWAY4E1BTWPX is a state-of-the-art 4-port hardened PoE switch and power supply designed for high-powered IP devices in remote locations. With the capability to deliver up to 90W per port and a total power output of 240W, this unit supports advanced networking needs while ensuring robust performance and reliability. Ideal for applications requiring long-distance data transmission, this switch seamlessly integrates with various network configurations.
Features
Altronix NETWAY4E1BTWPX Camera Features
- Input Voltage: Supports both 115VAC and 230VAC options for versatile installation.
- Power Output: Four PoE ports deliver 90W each, ensuring compatibility with high-power devices.
- Surge Protection: Integral protection against voltage spikes to safeguard connected equipment.
- SFP Port: One Gigabit SFP port for long-distance data transmission.
- Ethernet Ports: Four 10/100/1000 Mbps ports with auto-crossover for seamless connectivity.
- Battery Backup: Compatible with LiFePO4 and lead-acid batteries for reliable operation during power loss.
- LED Indicators: Clear status indicators for each port, facilitating easy monitoring and troubleshooting.
- Operating Temperature: Wide operating temperature range from -30ºC to 75ºC, enhancing durability in harsh conditions.
- Operating Altitude: Functional in altitudes up to 2000m, suitable for diverse installations.
Altronix NETWAY4E1BTWPX Detailed Specifications
| Feature | Details |
| Input Voltage | 115VAC, 60Hz, 1.8A or 230VAC, 50/60Hz, 1A |
| Fusing | 5A/250V |
| Maximum Power Output | 90W per PoE port, 240W total |
| Compliance | IEEE 802.3af, 802.3at, 802.3bt |
| SFP Ports | One Gigabit SFP port |
| Ethernet Ports | Four 10/100/1000 Mbps RJ45 ports |
| Backup Battery Type | 24VDC charging for LiFePO4 or sealed lead acid batteries |
| Operating Temperature | -30ºC to 55ºC (240W), -30ºC to 65ºC (180W), -30ºC to 75ºC (150W) |
| Storage Temperature | -30ºC to 85ºC |
| Relative Humidity | 85% +/- 5% |
| Operating Altitude | -304.8 to 2000m |
| BTU/Hr | Approximately 61 BTU/Hr |
SKU  | NETWAY4E1BTWPX |
|---|---|
| Manufacturer | Altronix |
| Input Voltage | 115VAC |
| Number of Outputs | 4 |
| Output Protection | Fuse |
| Certification | CE |
There are no related videos.
Write Your Own Review
Manuals & Specifications
NETWAY4E1BTWPX-Specsheet NETWAY4E1BTWPX-Installation-Instructions
