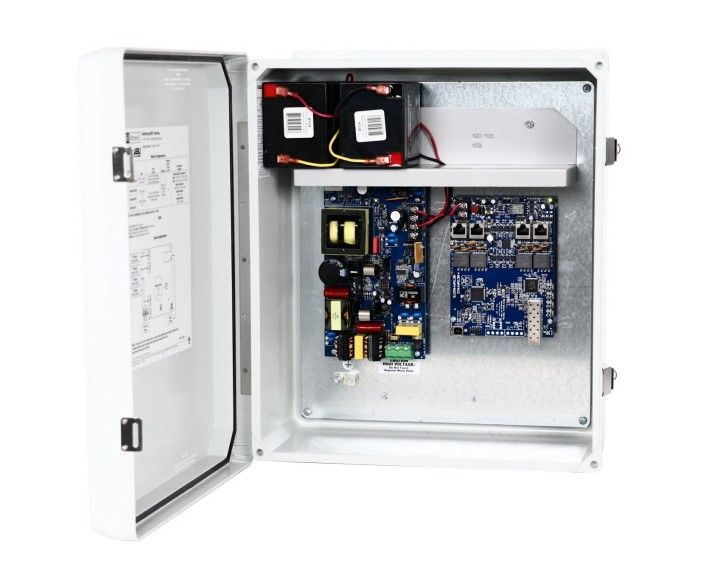

Altronix NETWAY4EBTWPX Single 1G Fiber Optic SFP, 4 Ports 10/100/1000 802.3bt 4 PPoE Network Switch
SKU
NETWAY4EBTWPX
Model No
NETWAY4EBTWPX
$842.28
Product Highlights
- Voltage: 115VAC, 60Hz, 1.8A or 230VAC, 50/60Hz, 1A
- Four (4) 10/100/1000 Mbps ports
- Connectivity: RJ45, auto-crossover
- Wire type: 4-pair CAT5e or higher structured cable
- Individual PoE On LEDs for each port
Speak to an expert
Altronix NetWay4EBTWPX is a high-performance network switch designed to support advanced IP devices with up to 90W per port, totaling 240W of power. Its 1Gb SFP port enables long-distance data transmission, while four 802.3bt-compliant Ethernet ports allow for seamless integration of both power and data. Enhanced with LINQ Technology for remote monitoring and diagnostics, this switch is ideal for deployment in challenging and remote environments.
Altronix NETWAY4EBTWPX Camera Features
- Maximum Power: Supplies up to 90W per port for high-powered IP devices, ensuring robust functionality in remote areas.
- Embedded LINQ Technology: Enables remote monitoring and diagnostics, providing immediate access to device status and alerts.
- Four PoE Ethernet Ports: Supports 802.3af, 802.3at, and 802.3bt standards for versatile device compatibility.
- Single 1G SFP Port: Facilitates long-range data transmission, enhancing network flexibility and efficiency.
- Temperature Resistant: Operates in extreme temperatures from -30ºC to 75ºC, suitable for various environments.
Altronix NETWAY4EBTWPX Detailed Specifications
| Input Voltage | 115VAC, 60Hz, 1.8A or 230VAC, 50/60Hz, 1A |
| Fusing | 5A/250V |
| Power Output | Four (4) PoE ports rated at 90W each, 240W total power |
| Compliant Standards | IEEE 802.3af (15W), IEEE 802.3at (30W), IEEE 802.3bt (90W) |
| SFP Ports | One (1) Gigabit SFP port |
| Ethernet Ports | Four (4) 10/100/1000 Mbps ports with auto-crossover |
| Wire Type | 4-pair CAT5e or higher structured cable |
| Back-up Battery Type | 24VDC charging circuit supports LiFePO4 or sealed lead acid batteries |
| Failover | Instantaneous upon AC loss |
| Operating Temperature | -30ºC to 55ºC (-22ºF to 131ºF) for 240W |
| Humidity | 85% +/- 5% |
| Operating Altitude | -304.8 to 2,000m |
SKU  | NETWAY4EBTWPX |
|---|---|
| Manufacturer | Altronix |
| # of Ports | 4 PORT |
| Data Rate | 10/100/1000 Mbps |
| PoE | Yes |
| Features | Hardened, VLAN |
