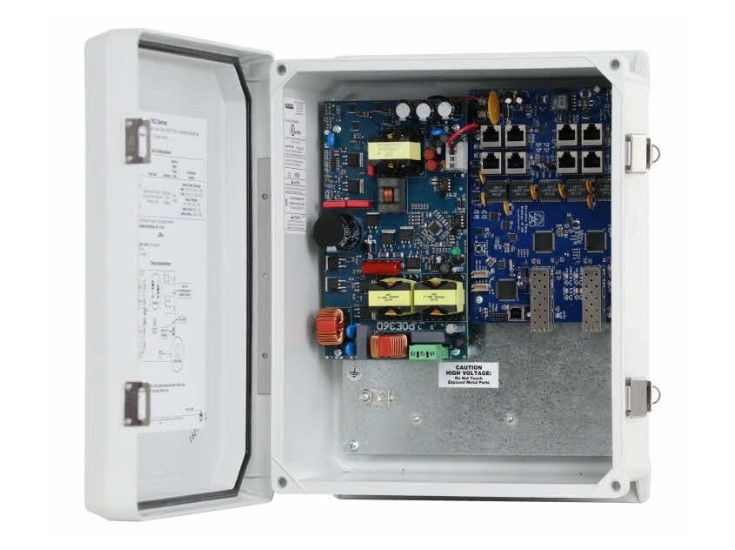

Altronix NETWAYSP8WP3 Dual Fiber Optic SFP 1G Link, 8-port Network Managed PoE+ Switch
SKU
NETWAYSP8WP3
Model No
NETWAYSP8WP3
$1,438.00
Product Highlights
- Six (6) 10/100 Mbps and two (2) 10/100/1000 Mbps ports
- Connectivity: RJ45, auto-crossover
- Wire type: 4-pair CAT5e or higher structured cable
- Distance: up to 100m
- Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
Speak to an expert
Altronix NetWaySP8WP3 is a robust 8-port Network Managed PoE+ Switch designed to deliver unmatched power and data capabilities for high-demand IP devices in remote locations. With up to 60W per port and advanced monitoring technology, this switch ensures seamless performance, energy efficiency, and reliable connectivity for your surveillance and networking needs.
Altronix NETWAYSP8WP3 - Key Features
- Power Capacity: Up to 60W per port (totaling 360W), allowing for the deployment of high-powered IP devices in various settings.
- SFP Ports: Two (2) Gigabit SFP ports for transmitting data over long distances, enhancing connectivity options for remote installations.
- PoE+ Ports: Eight (8) PoE+ ports delivering 30W each or two (2) Hi-PoE ports providing 60W, accommodating diverse power needs.
- Linq Technology: Enables remote management and diagnostics for efficient troubleshooting and monitoring of power status.
- Surge Protection: Integral surge protection ensures device safety and uninterrupted operation during power fluctuations.
- Temperature Resilience: Reliable operation in extreme temperatures ranging from -40ºC to 75ºC, making it suitable for challenging environments.
- VLAN Support: Multiple VLAN assignment options with up to 10 VLAN groups for effective network segmentation and management.
- LED Indicators: Individual LEDs for PoE status, link status, and overall health monitoring for real-time performance tracking.
Altronix NETWAYSP8WP3 - Detailed Specifications
| Feature | Details |
| Input Voltage | 115VAC, 60Hz, 3.5A or 230VAC, 50/60Hz, 2A |
| Input Fuse | 5A/250V |
| Maximum Power Output | 360W total power, with eight (8) PoE+ (30W) ports or two (2) Hi-PoE (60W) ports |
| Compliance | IEEE 802.3at (30W) and IEEE 802.3af (15W) |
| Ethernet Ports | Six (6) 10/100 Mbps and two (2) 10/100/1000 Mbps ports |
| Operating Temperature | -40ºC to 75ºC (-40ºF to 167ºF) |
| Storage Temperature | -30ºC to 85ºC (-22ºF to 185ºF) |
| Humidity | 85% +/- 5% |
| Operating Altitude | 304.8 to 2000m |
| Battery Type | 24VDC charging circuit for LiFePO4 or sealed lead acid batteries (sold separately) |
| LED Indicators | Individual PoE On LEDs, link status LEDs, ALOS and Heartbeat indicators |
| VLAN Support | Up to 10 VLAN groups with 802.1Q tagging |
| LINQ Technology | Remote management for device reset and diagnostic monitoring |
SKU  | NETWAYSP8WP3 |
|---|---|
| Manufacturer | Altronix |
| Type | Outdoor |
| Input Voltage | 115VAC |
| Output Protection | Fuse |
| Battery Charging | Yes |
| Certification | CE |
