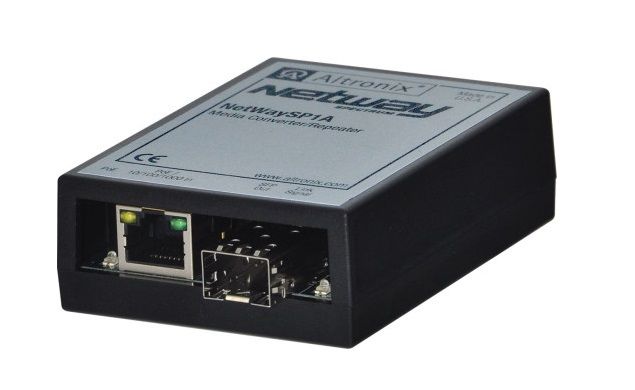

Altronix NETWAYSP1A Media Converter/Repeater
SKU
NETWAYSP1A
Model No
NETWAYSP1A
$87.50
Product Highlights
- PoE IEEE 802.3AF compliant, Power: 2W
- One (1) 1Gb SFP port
- Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included)
- IEEE 802.3af (15W) compliant
- Wire type: 4-pair CAT5e and higher
Speak to an expert
The NETWAYSP1A from Altronix is a PoE powered media converter/repeater that converts data speeds of 10/100/1000 Mbps to Fiber (1000Base-X/SX/LX), enabling efficient and reliable connections for network setups.
Altronix NETWAYSP1A Media Converter Features
- PoE Compliance: IEEE 802.3AF compliant, delivering efficient power with only 2W necessary.
- SFP Port: One (1) 1Gb SFP port for high-speed fiber connectivity.
- Modular Flexibility: Compatible with SFP module 1000Base-X (1Gb), offering versatility (module not included).
- Power Efficiency: Also compliant with IEEE 802.3af providing up to 15W for powering devices.
- Quality Wiring: Utilizes 4-pair CAT5e and higher wiring for optimal performance.
- Easy Connectivity: Features RJ45 with auto-crossover for simple setup.
- High Speed: Supports speeds of 10/100/1000Mbps for fast data transfer.
- Extended Distance: Capable of maintaining connections up to 100m.
- PoE Indicator: Green LED to indicate when PoE power is present and the unit is operational.
- Signal Indicator: Green LED to signal active SFP connection.
Altronix NETWAYSP1A Detailed Specifications
| Technology | Media Converter/Repeater |
| Power Over Ethernet | IEEE 802.3AF compliant, 2W |
| SFP Port | One (1) 1Gb SFP |
| Compatibility | SFP module 1000Base-X (not included) |
| Power Capability | Up to 15W (IEEE 802.3af) |
| Required Wiring | 4-pair CAT5e or higher |
| Connectivity Type | RJ45 with auto-crossover |
| Supported Speeds | 10/100/1000Mbps |
| Distance Capability | Up to 100m |
| LED Indicators | PoE Green LED, Link Signal Green LED |
SKU  | NETWAYSP1A |
|---|---|
| Manufacturer | Altronix |
| Data Rate | 10/100/1000 Mbps |
| Connection Type | SFP |
