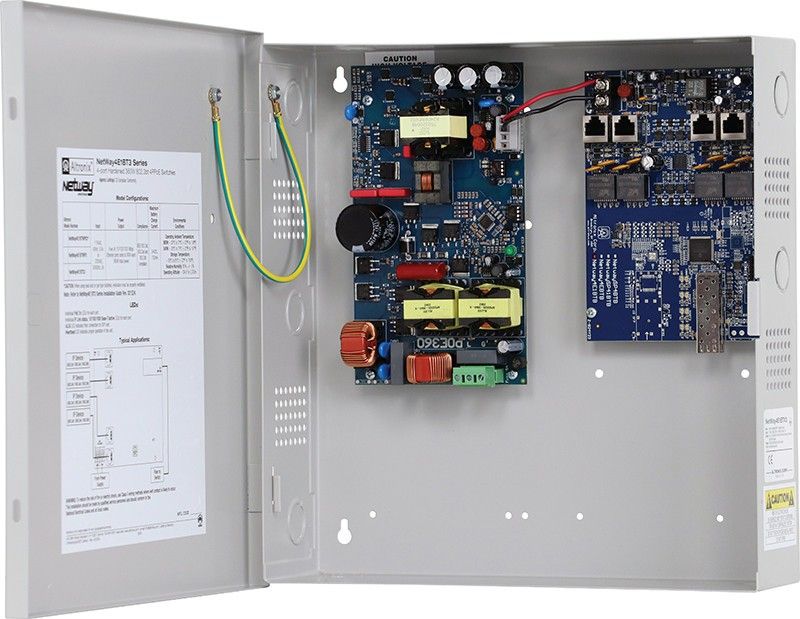

Altronix NETWAY4E1BTX3 4-port Hardened 802.3bt 4PPoE Switch and Power Supply/Charger

Altronix NETWAY4E1BTX3 is a robust 4-port hardened switch designed to deliver up to 90W per port, making it ideal for powering high-demand IP devices in remote environments. With its one 1Gb SFP port and four 802.3bt compliant Ethernet ports, it provides seamless integration of power and data transmission, accommodating a variety of fiber and copper setups. Enjoy reliable performance with built-in surge protection and temperature resilience, ensuring your devices function optimally even in challenging conditions.

Altronix NETWAY4E1BTX3 Features

Input:

• Voltage: 115VAC, 60Hz, 3.5A or 230VAC, 50/60Hz, 2A – Allows for flexible installation in various electrical environments.
• Input Fuse: 5A/250V – Protects the unit from electrical faults and ensures durability.

Power Output:

Maximum Power:

• Four (4) PoE ports rated at 90W each, 360W total power – Sufficient power supply for multiple high-performance devices.
• IEEE 802.3af (15W), IEEE 802.3at (30W), IEE 802.3bt (90W) compliant – Compatibility with various device power requirements.
• Integral surge protection – Ensures safety and longevity of connected devices.

SFP Ports:

• One (1) Gigabit SFP port – Facilitates long-distance data transmission.

Ethernet Ports:

• Four (4) 10/100/1000 Mbps ports – Provides versatile connectivity options.
• Connectivity: RJ45, auto-crossover – Simplifies connectivity without needing special cables.
• Wire type: 4-pair CAT5e or higher structured cable – Supports modern networking standards.
• Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation – Optimizes data transfer based on connected devices.

Battery Charging:

• Type: 24VDC charging circuit charges LiFePO₄ or sealed lead acid – Enhances flexibility in battery options.
• Failover: Upon AC loss, instantaneous – Ensures continuous operation during power outages.
• (Batteries are sold separately) – Allows for customization based on specific needs.
• (Separate ventilated enclosure is required) – Promotes safety and efficiency in battery management.

Indicators (LED):

• Individual PoE On LEDs for each port – Instantaneous visual confirmation of power delivery.
• Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port – Provides real-time monitoring of network connectivity.
• ALOS LED indicates fiber connection for SFP port – Simplifies troubleshooting and connectivity verification.
• Heartbeat LED indicates proper operation of the unit – Assures users of active functioning status.

Temperature:

Operating Temperature:

• 360W: – 40ºC to 45ºC (– 40ºF to 113ºF) – Suitable for extreme environmental conditions.
• 240W: – 30ºC to 55ºC (– 22ºF to 131ºF) – Ensures stable operation across a wide temperature range.
• 180W: – 30ºC to 65ºC (– 22ºF to 149ºF) – Adapts to varying application needs.
• 150W: – 30ºC to 75ºC (– 22ºF to 167ºF) – Ideal for higher thermal settings.
• Storage Temperature: - 30ºC to 85ºC (- 22º to 185ºF) – Safe for product longevity even in storage conditions.
• Relative Humidity: 85% +/- 5% – Maintains functionality despite humidity fluctuations.
• BTU/Hr.(approx.): 183 BTU/Hr – Provides a benchmark for energy consumption monitoring.

Operating Altitude:

• - 304.8 to 2,000m – Versatile for installation in various geographical elevations.

Altronix NETWAY4E1BTX3 Detailed Specifications
