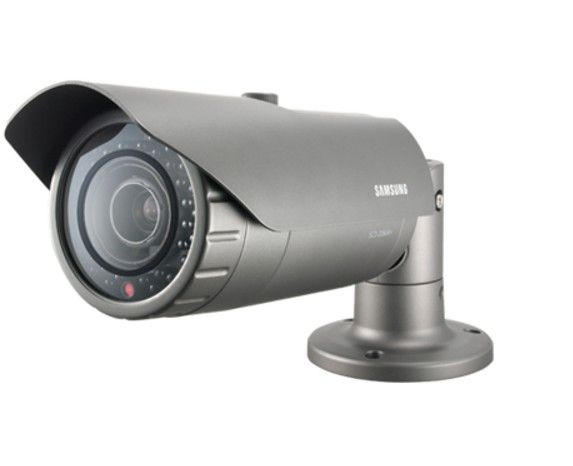

Hanwha Vision SCO-2080RHN 700TVL Resolution Weatherproof IR Bullet Camera, 2.8-10mm

Name: Hanwha Vision SCO-2080RHN 700TVL Resolution Weatherproof IR Bullet Camera, 2.8-10mm
Brand: Hanwha Vision
SKU: SCO-2080RHN
Price: 362.00 USD
Availability: InStock

SKU

SCO-2080RHN

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hanwha Vision SCO-2080RHN 700TVL Resolution Weatherproof IR Bullet Camera, 2.8-10mm SCO-2080RHN by Hanwha Vision

Model No

SCO-2080RHN

$362.00

Add to Quote

Volume
Discounts

Free System
Design

Lifetime
Tech Support

Free Shipping
Over $450*

Add to Wishlist Add to Compare

Product Highlights

High resolution of 600TV lines (Color), 700TV lines (B/W)
Min. illumination 0Lux (IR LED On), IR distance 165 ft
Built-in V/F lens (2.8 ~ 10mm)
True Day & Night (ICR), MD, SSNRIII
Built-in fan & heater

Add to Wishlist Add to Compare

Speak to an expert

Call: 800.955.5201 | Request A Call | Live Chat | Message Support

Details

700TVL Resolution Weatherproof IR Bullet Camera, 2.8-10mm

The SCO-2080RHN from Hanwha Vision is a high-performance 700TVL Resolution Weatherproof IR Bullet Camera equipped with a versatile 2.8-10mm Lens, designed to provide exceptional surveillance capabilities in various environments.

Camera Functions

Auto Gain Control

Auto White Balance

BLC

Coaxitron

Day/Night Vision

3D DNR

Digital Zoom

Motion Detection

On Screen Display Menu

Privacy Masking

Camera Features


High resolution of 600TV lines (Color) , 700TV lines (B/W)	True Day & Night (ICR) , MD, SSNRIII
Min. illumination 0Lux (IR LED On) , IR distance 165 ft	Built-in fan & heater
Built-in V/F lens (2.8 ~ 10mm)	IP66, Coax control support

Specifications

SKU	SCO-2080RHN
Features	Auto Gain Control, Automatic White Balance, Back Light Compensation, Coaxitron, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, Privacy Masking
Manufacturer	Hanwha Vision
Camera Signal	Analog
Resolution	700 TVL
Sensor Option	1/3" CCD
Lens Type	Varifocal
Lens Size	2.8-10mm
Infrared Distance	101 Feet +
Durability	Weather Resistant
Mount Type	Wall
Voltage	12vDC, 24vAC
Electronic Shutter	1/60 ~ 1/120,000sec
Image Device	1/3" Super HAD CCD II
Image Pixels Total	811(H) x 508(V)
Image Pixels-Effective	768(H) x 494(V)
IR Distance	50m/164ft
IR Wavelength	850nm
Minimum Scene Illumination	Color : [email protected] (50IRE), 0.0003Lux (Sens-up, 512x)B/W : 0Lux (IR LED 0n
Operating Humidity	90% RH
Operating Temperature	-50°C ~ +50°C (-58°F ~ +122°F)
Dimensions (W x H)	Ø114.0 x 383.0 (Ø4.49" x 15.08")
OSD Menu	English, Japanese, Spanish, French,Portuguese, Taiwanese, Korean
Power Consumption	Max. 15W (Heater on), Max. 7.2W (Heater off)
Protocols	Coax : Pelco-C (Coaxitron)RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon
S/N Ratio	52dB (AGC off, Weight on)
Video Output	CVBS : 1.0 Vp-p / 75? composite
Weatherproof	IP66
Synchronization	Internal / Line lock
Digital Noise Reduction	SSNRIII (Off / On)
Angle of View	H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele)
Backlight Compensation	Off / BLC / HLC
Automatic White Balance	ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
Auto Gain Control	Off / Low / High
IR LEDs	32ea
Motion Detection	Off / On (8 programmable zones)
Back Light Compensation	Yes
Automatic White Balance	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
On Screen Display Menu	Yes
Privacy Masking	Yes
Auto Gain Control	Yes
Motion Detection Tracking	Yes
Coaxitron	Yes
Digital Zoom	Yes
