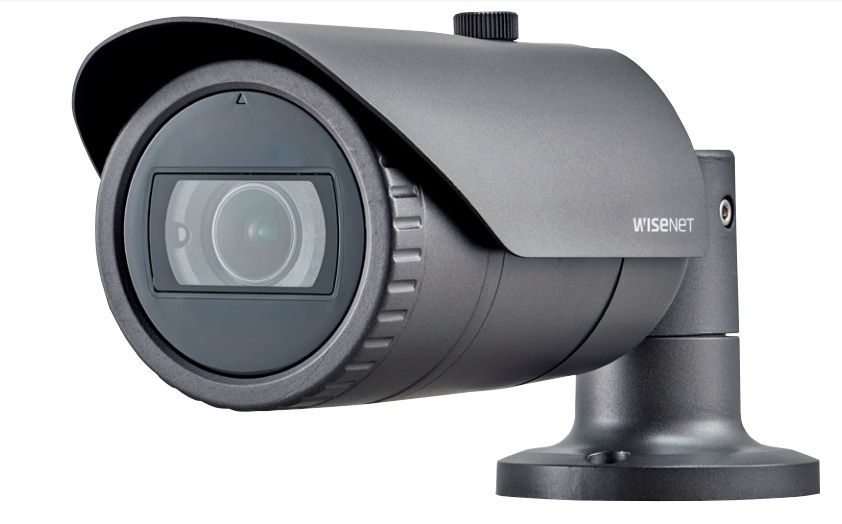

Hanwha Vision HCO-7070RA 2560 x 1440 QHD Analog IR Outdoor Bullet Camera, 3.2 -10mm Lens
Product Highlights
QHD (2560 x 1440, 30fps) resolution
0.16 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
3.2 ~ 10mm (3.1x) varifocal lens
Day & Night (ICR), DWDR, Motion detection
Transmission distance Max. 500m
The HCO-7070RA from Hanwha Vision is a 2560 x 1440 QHD Analog IR Outdoor Bullet Camera, 3.2 -10mm Lens.
Features
QHD (2560 x 1440, 30fps) resolution
0.16 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
3.2 ~ 10mm (3.1x) varifocal lens
Day & Night (ICR), DWDR, Motion detection
Transmission distance Max. 500m
Easy installation (Plug & play), Dual power
IP66, IK10 support
SKU
HCO-7070RA
Features
Auto Gain Control, Automatic White Balance, Back Light Compensation, Coaxitron, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer
Samsung
NDAA
Compliant
Camera Signal
Analog, HD-AHD
Resolution
2560 X 1440
Sensor Option
1/3" CMOS
Lens Type
Varifocal
Infrared Distance
61~100 Feet
Durability
Vandal Resistant, Weather Resistant
Mount Type
Ceiling, Wall
Voltage
12vDC, 24vAC, Dual Voltage
Electronic Shutter
NTSC: 1/30sec ~ 1/12,000sec, PAL: 1/25sec ~ 1/12,000sec
Image Device
1/3" 4M CMOS
Image Pixels Total
2,720(H) x 1,536(V)
Image Pixels-Effective
2,688(H) x 1,520(V)
IR Distance
30m/98.43ft
Minimum Scene Illumination
Color : 0.16 Lux (F1.6), B/W : 0 Lux (IR LED on)
Operating Humidity
Less than 90% RH
Operating Temperature
-30°C ~ +55°C (-22°F ~ +131°F)
Dimensions (W x H)
Ø78.0 x 259.8mm (Ø3.07" x 10.23") (Without sunshield)
OSD Menu
English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish
Power Consumption
MAX. 5.8W
Privacy Zone
Off / On (2 zones rectangle)
Protocols
AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron)
S/N Ratio
52dB (AGC off, Weight on)
Scanning System
Progressive Scan
Video Output
BNC (AHD), Additional CVBS for installation (2Pin connector type)
Weatherproof
IP66
Digital Noise Reduction
2D DNR
Angle of View
H : 93.48?(Wide) ~ 29.44?(Tele) / V : 50.47?(Wide) ~ 16.64?(Tele) / D : 112.53?(Wide) ~ 33.7?(Tele)
Backlight Compensation
Off / User BLC / HLC
Automatic White Balance
ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°)
Auto Gain Control
Off / Low / Middle / High / Very High
Motion Detection
Off / On (4 zones)
Back Light Compensation
Yes
Automatic White Balance
Yes
Day/Night
Yes
Digital Noise Reduction
Yes
On Screen Display Menu
Yes
Wide Dynamic Range
Yes
Privacy Masking
Yes
Auto Gain Control
Yes
Motion Detection Tracking
Yes
Coaxitron
Yes
