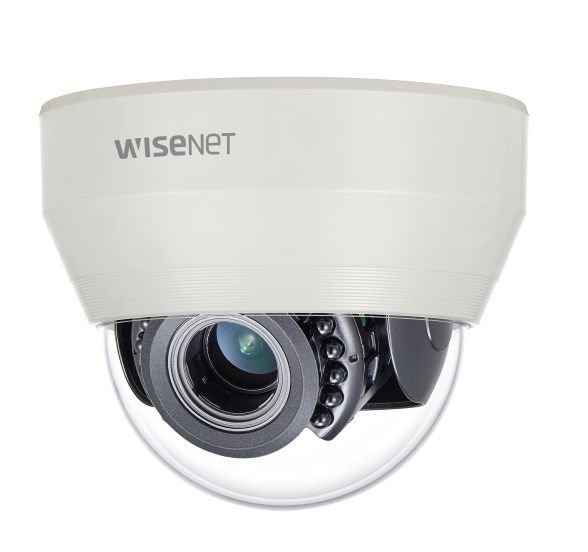

Hanwha Vision SCD-6085R 1080p Analog IR Dome Camera, 3.2-10mm Lens
SKU
SCD-6085R
Model No
SCD-6085R
$167.74
Product Highlights
- Full HD (1,920 x 1,080 30fps) resolution
- 0.11Lux (Color), 0Lux (B/W : IR LED on)
- 3.2 ~ 10mm (3.1x) varifocal lens
- Day & Night (ICR), Motion detection
- IR viewable length 20m (65.62ft)
Speak to an expert
1080p Analog IR Dome Camera, 3.2-10mm Lens
- The Hanwha Vision SCD-6085R 1080p Analog IR Dome Camera is an advanced surveillance solution that combines high-definition video quality with innovative features designed for enhanced security. With its easy installation over existing coax cabling and a range of functionalities like Day/Night operation and motion detection, this camera provides reliable performance while minimizing costs. The compact design and low power consumption make it an efficient choice for both residential and commercial applications.
Camera Functions
Auto Gain Control
Automatic White Balance
BLC
Day/Night Vision
3D DNR
Motion Detection Tracking
Privacy Masking
Camera Features
| Full HD (1,920 x 1,080 30fps) resolution | Day & Night (ICR) , Motion detection |
| 0.11Lux (Color) , 0Lux (B/W: IR LED on) | IR viewable length 20m (65.62ft) |
| 3.2 ~ 10mm (3.1x) varifocal lens | Transmission distance max. 500m |
Additional Hanwha Vision Products
SKU  | SCD-6085R |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, Privacy Masking |
| Manufacturer | Hanwha Vision |
Camera Signal  | Analog |
| Resolution | 1080p |
| Sensor Option | 1/2.8" CMOS |
| Lens Type | Varifocal |
| Lens Size | 3.2-10mm |
| Infrared Distance | 61~100 Feet |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC |
| Electronic Shutter | 1 ~ 1/12,000sec |
| Image Device | 1/2.8" CMOS |
| IR Distance | 20m/65.62ft |
| Minimum Scene Illumination | Color: 0.11Lux (F1.6, 1/30sec) , BW: 0Lux(IR LED on) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Dimensions (W x H) | Ø119.8 x 98.5mm (Ø4.72" x 3.88") |
| Power Consumption | AC 24V / 0.45A, DC 12V / 0.46A |
| Privacy Zone | 8ea, rectangular zones |
| Protocols | ACP (AHD Coax Protocol), CVBS: Pelco-C (Coaxitron) |
| Digital Noise Reduction | SSNRâ…£ |
| Angle of View | H : 110.2°(Wide) ~ 32°(Tele), V : 55.4°(Wide) ~ 18°(Tele), D : 128.4°(Wide) ~ 36.6°(Tele) |
| Backlight Compensation | BLC, HLC, DWDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Auto Gain Control | Low / Middle / High / Very High |
| Motion Detection | 4ea |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Digital Zoom | Yes |
