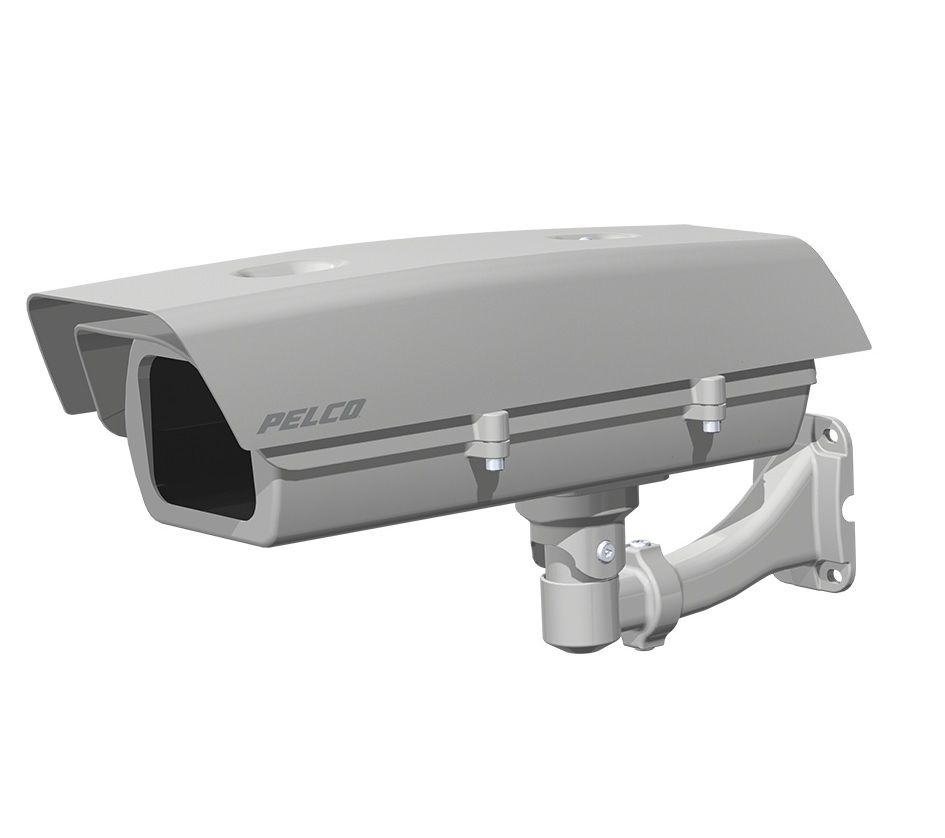

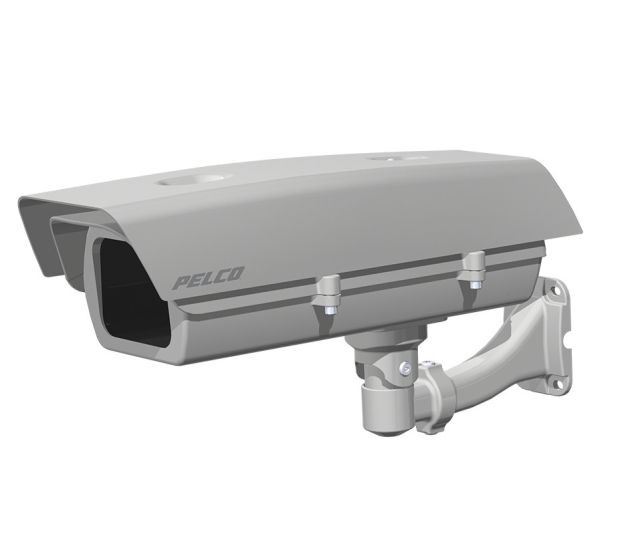

Pelco EH20-2-H Compact Indoor/Environmental IP-Enabled with Heater & Blower, 24VAC

The Pelco EH20-2-H Compact Indoor/Environmental IP-Enabled Enclosure is engineered for durability and reliability, featuring a side-hinged lid for easy access and a robust design suitable for diverse conditions. With a heat and blower system included, as well as compliance with IP66 and IK10 ratings, it ensures optimal performance across temperatures from -30°C to 50°C, providing exceptional protection for analog and IP cameras alike.

Pelco EH20-2-H Key Features

• Side Opening: Facilitates easy access for servicing and installation, reducing downtime.
• Die-Cast Construction: High reliability and durability to withstand harsh environmental conditions.
• Megapixel Camera Support: Advanced optics suitable for both fixed and variable focal length lenses, enhancing image quality.
• Temperature Range: Operates effectively in temperatures from -30° to 50°C (-22° to 122°F), ensuring functionality in extreme conditions.
• IP66 and Type 4X Standards: Provides excellent protection against dust and water ingress, ideal for environmental resilience.
• IK10 Resistance: Vandal resistant design ensures the enclosure withstands mechanical impact.
• Cable Entry Glands: Adjustable PG11 glands allow for easy installation of power and video cables for streamlined setup.
• Power Options: Supports 24VAC, Power Over Ethernet (PoE), and Mains Power models for versatile connectivity.
• Heater and Blower: Included for maintaining optimal internal temperatures in varying climates.
• Sun Shroud: Provides added protection against direct sunlight, enhancing camera performance.

Pelco EH20-2-H Detailed Specifications
