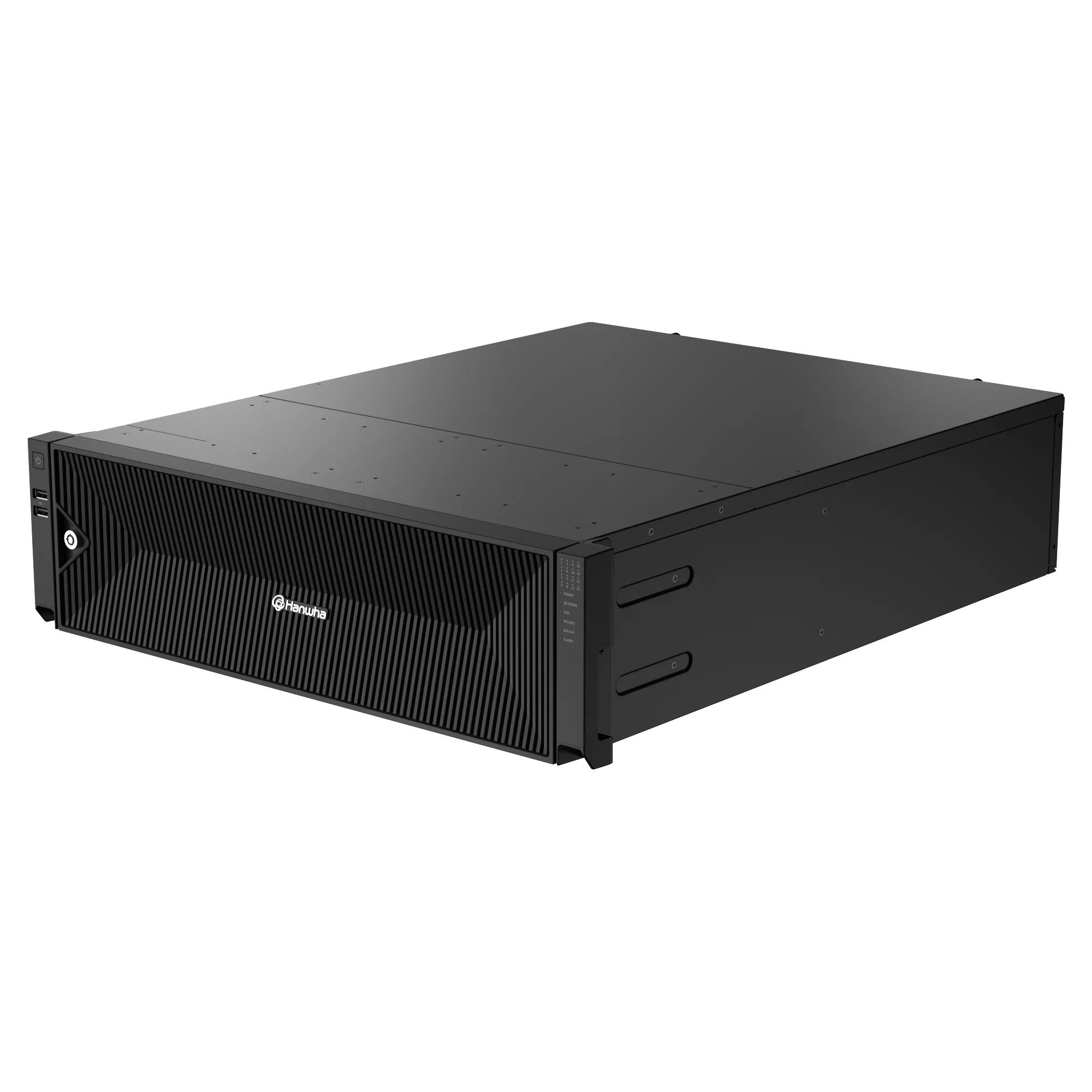

Hanwha Vision XRN-3220B4-48TB 32 Channels 8K Intel Based NVR with 48TB
SKU
XRN-3220B4-48TB
Model No
XRN-3220B4-48TB
$12,305.90
Product Highlights
- 32CH, 32MP resolution
- SATA 16ea (up to 160TB
- Up to 520Mbps recording / transmission bandwidth
- Easy Channel/Event/Alarm configuration
- Virual channal view
Speak to an expert
32 Channels 8K Intel Based NVR with 48TB
- The Hanwha Vision XRN-3220B4-48TB is a state-of-the-art 8K Intel-based NVR designed to meet the demands of modern surveillance systems. With the capability to support 32 channels and a massive 48TB storage capacity, this NVR ensures high-resolution recording and playback, delivering exceptional performance and reliability. Its advanced features include dual-stream recording, iSCSI support, and seamless integration with Wisenet AI cameras for enhanced surveillance capabilities.
NVR Functions
Alarm Notification by E-mail
Compression Supported
DDNS Functionality
H.264 Compression
H.265 Compression
MJPEG Compression
Supports PTZ Control
Supports the Full HD Output (HDMI)
Two-way Audio
NVR Features
| 32CH, 32MP resolution | Virual channal view |
| SATA 16ea (up to 160TB | Up to 520Mbps recording / transmission bandwidth |
| Easy Channel/Event/Alarm configuration | Manual event support |
Additional Hanwha Vision Products
SKU  | XRN-3220B4-48TB |
|---|---|
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
| IP Channels | 32 Channels |
| Harddrive Size | 48TB |
| Protocols | ONVIF protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 32MP ~ CIF |
| Compression | H.265, H.264, MJPEG |
| Bandwidth | Up to 200Mbps(32CH simultaneously) |
| Operating temperature | 0°C to +40°C(32℉ to 104℉) |
| Dimensions | 440.0 x 132.0 x 571.1mm |
| Voltage | 100 ~ 240 VAC ±10%; 50/60 Hz, 2.7A (Single SMPS) |
| Power Consumption | Max. 265W (904.2 BTU with HDD 16ea) |
| SATA | 16ea |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
| Audio | 2-Way |
| Compression Supported | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Watermark Capability | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
