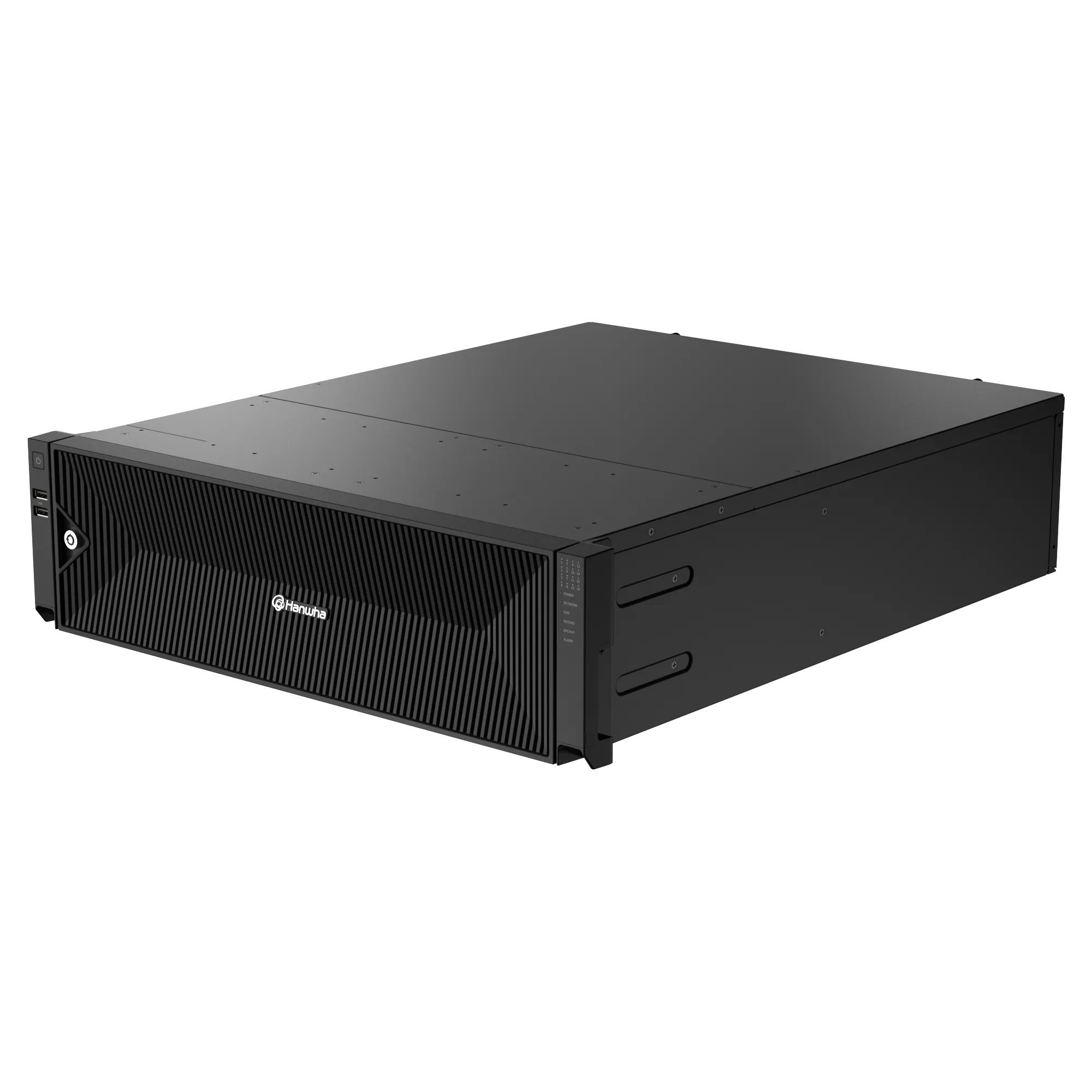

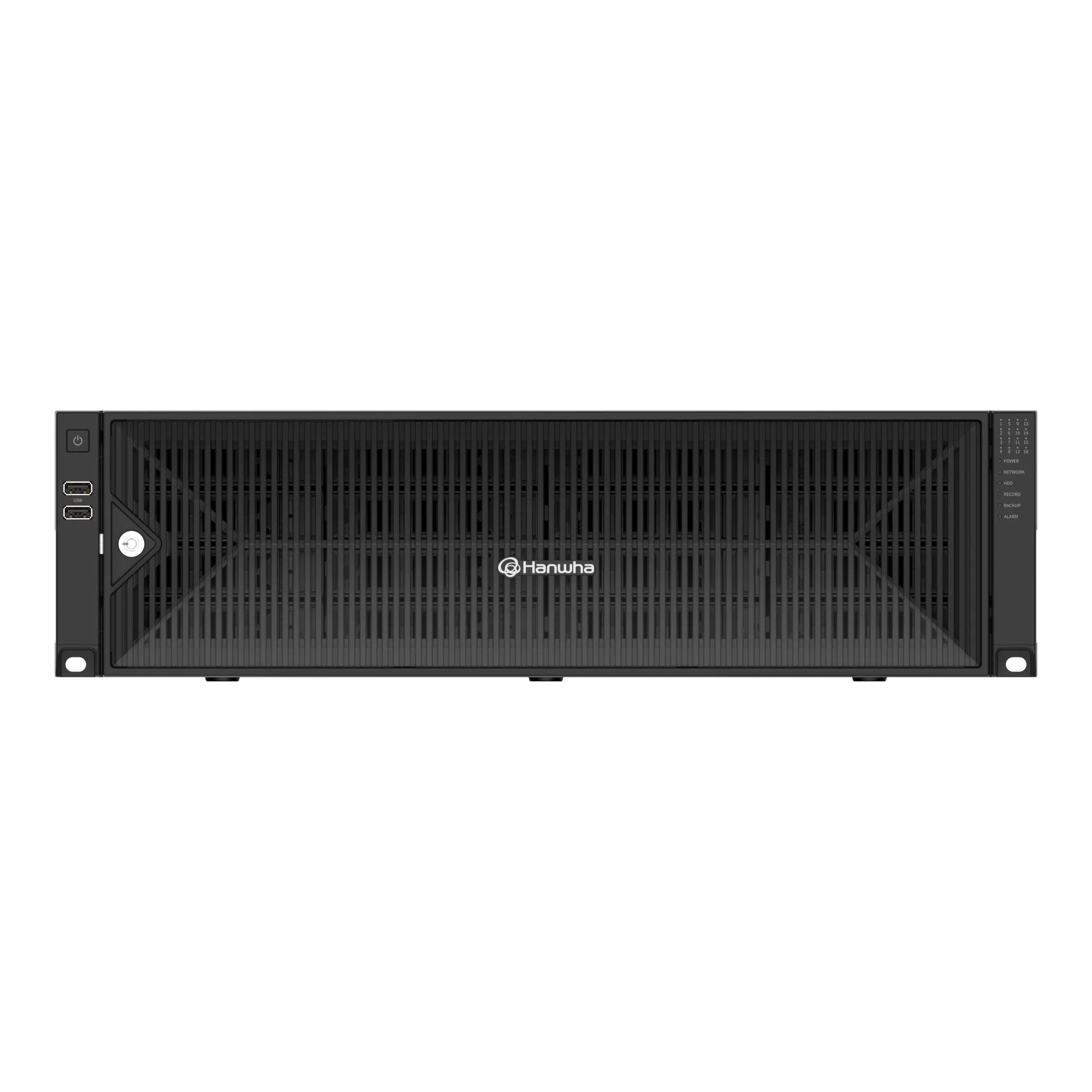

Hanwha Vision XRN-3220B4-32TB 32 Channels 8K Intel Based NVR with 32TB
SKU
XRN-3220B4-32TB
Model No
XRN-3220B4-32TB
$10,550.00
Product Highlights
- 32CH, 32MP resolution
- SATA 16ea (up to 160TB
- Up to 520Mbps recording / transmission bandwidth
- Easy Channel/Event/Alarm configuration
- Virual channal view
Speak to an expert
32 Channels 8K Intel Based NVR with 32TB
- The Hanwha Vision XRN-3220B4-32TB is a high-performance 32-channel NVR designed for advanced surveillance needs. With its powerful Intel architecture and 32TB of storage, this NVR supports up to 8K resolution and provides seamless recording and playback capabilities. Key features include robust support for various video codecs, dual HDMI outputs for multiple display setups, and advanced AI search functionalities to enhance your security monitoring experience.
NVR Functions
Alarm Notification by E-mail
Compression Supported
DDNS Functionality
H.264 Compression
H.265 Compression
MJPEG Compression
Supports PTZ Control
Supports the Full HD Output (HDMI)
Two-way Audio
NVR Features
| 32CH, 32MP resolution | Virual channal view |
| SATA 16ea (up to 160TB | Up to 520Mbps recording / transmission bandwidth |
| Easy Channel/Event/Alarm configuration | Manual event support |
Additional Hanwha Vision Products
SKU  | XRN-3220B4-32TB |
|---|---|
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
| IP Channels | 32 Channels |
| Harddrive Size | 32TB |
| Protocols | ONVIF protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 32MP ~ CIF |
| Compression | H.265, H.264, MJPEG |
| Bandwidth | Up to 200Mbps(32CH simultaneously) |
| Operating temperature | 0°C to +40°C(32℉ to 104℉) |
| Dimensions | 440.0 x 132.0 x 571.1mm |
| Voltage | 100 ~ 240 VAC ±10%; 50/60 Hz, 2.7A (Single SMPS) |
| Power Consumption | Max. 265W (904.2 BTU with HDD 16ea) |
| SATA | 16ea |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
| Audio | 2-Way |
| Compression Supported | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Watermark Capability | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
