Hanwha Vision XRN-3220B4-40TB 32 Channels 8K Intel Based NVR with 40TB
SKU
XRN-3220B4-40TB
Model No
XRN-3220B4-40TB
$11,368.62
Product Highlights
- 32CH, 32MP resolution
- SATA 16ea (up to 160TB
- Up to 520Mbps recording / transmission bandwidth
- Easy Channel/Event/Alarm configuration
- Virual channal view
Speak to an expert

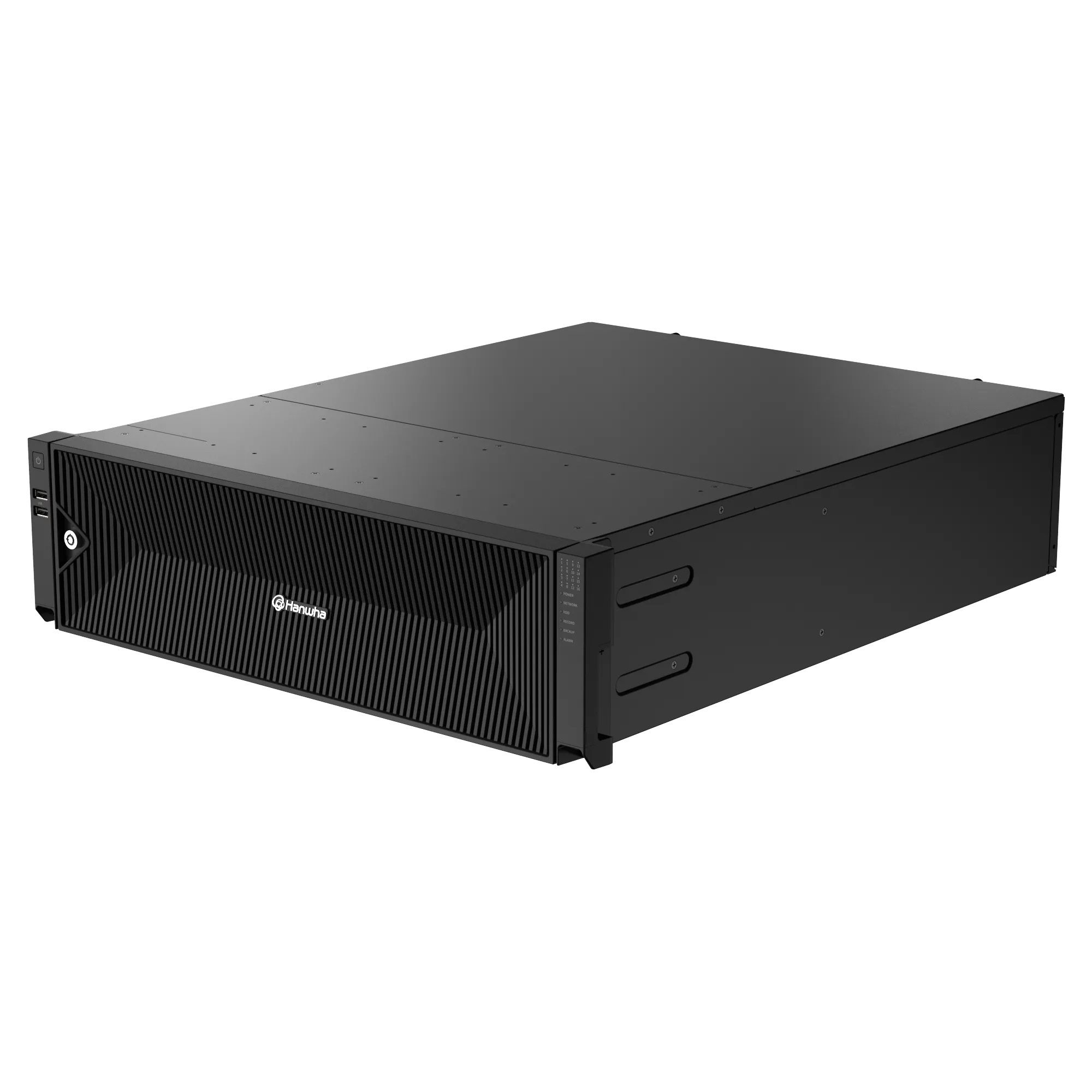

32 Channels 8K Intel Based NVR with 40TB
- The Hanwha Vision XRN-3220B4-40TB is a powerful 32-channel 8K Intel-based Network Video Recorder (NVR) designed for high-performance surveillance. With 40TB of storage and support for advanced features like H.265/H.264/MJPEG compression, this NVR ensures optimal video quality and efficient storage management. Its dual-stream recording capability, AI search integration, and RAID support make it perfect for both small and large-scale security applications.
NVR Functions
Alarm Notification by E-mail
Compression Supported
DDNS Functionality
H.264 Compression
H.265 Compression
MJPEG Compression
Supports PTZ Control
Supports the Full HD Output (HDMI)
Two-way Audio
NVR Features
| 32CH, 32MP resolution | Virual channal view |
| SATA 16ea (up to 160TB | Up to 520Mbps recording / transmission bandwidth |
| Easy Channel/Event/Alarm configuration | Manual event support |
Additional Hanwha Vision Products
SKU  | XRN-3220B4-40TB |
|---|---|
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
| IP Channels | 32 Channels |
| Harddrive Size | 40TB |
| Protocols | ONVIF protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 32MP ~ CIF |
| Compression | H.265, H.264, MJPEG |
| Bandwidth | Up to 200Mbps(32CH simultaneously) |
| Operating temperature | 0°C to +40°C(32℉ to 104℉) |
| Dimensions | 440.0 x 132.0 x 571.1mm |
| Voltage | 100 ~ 240 VAC ±10%; 50/60 Hz, 2.7A (Single SMPS) |
| Power Consumption | Max. 265W (904.2 BTU with HDD 16ea) |
| SATA | 16ea |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
| Audio | 2-Way |
| Compression Supported | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Watermark Capability | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
