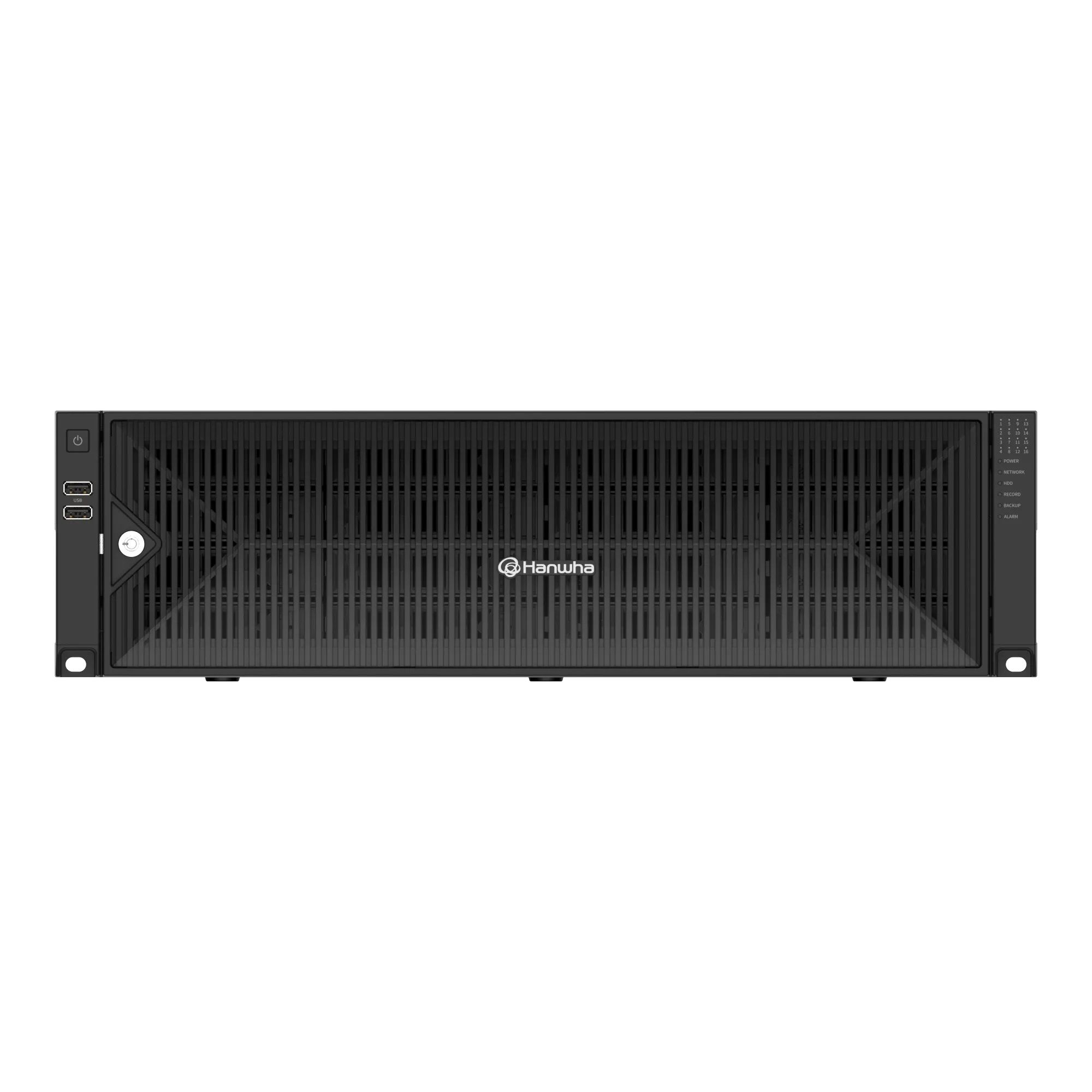

Hanwha Vision XRN-3220B4-140TB 32 Channels 8K Intel Based NVR with 140TB
SKU
XRN-3220B4-140TB
Model No
XRN-3220B4-140TB
$23,084.62
Product Highlights
- 32CH, 32MP resolution
- SATA 16ea (up to 160TB
- Up to 520Mbps recording / transmission bandwidth
- Easy Channel/Event/Alarm configuration
- Virual channal view
Speak to an expert
32 Channels 8K Intel Based NVR with 140TB
- The Hanwha Vision XRN-3220B4-140TB is a powerful 32-channel 8K Intel-based NVR designed for high-performance surveillance. With a massive storage capacity of 140TB and support for up to 16 SATA HDDs, this NVR ensures extensive recording capabilities. It features advanced compression technologies like H.265, dual stream recording, and AI search functionalities for optimized performance and enhanced security management.
NVR Functions
Alarm Notification by E-mail
Compression Supported
DDNS Functionality
H.264 Compression
H.265 Compression
MJPEG Compression
Supports PTZ Control
Supports the Full HD Output (HDMI)
Two-way Audio
NVR Features
| 32CH, 32MP resolution | Virual channal view |
| SATA 16ea (up to 160TB | Up to 520Mbps recording / transmission bandwidth |
| Easy Channel/Event/Alarm configuration | Manual event support |
Additional Hanwha Vision Products
SKU  | XRN-3220B4-140TB |
|---|---|
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
| IP Channels | 32 Channels |
| Harddrive Size | 140TB |
| Protocols | ONVIF protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 32MP ~ CIF |
| Compression | H.265, H.264, MJPEG |
| Bandwidth | Up to 200Mbps(32CH simultaneously) |
| Operating temperature | 0°C to +40°C(32℉ to 104℉) |
| Dimensions | 440.0 x 132.0 x 571.1mm |
| Voltage | 100 ~ 240 VAC ±10%; 50/60 Hz, 2.7A (Single SMPS) |
| Power Consumption | Max. 265W (904.2 BTU with HDD 16ea) |
| SATA | 16ea |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
| Audio | 2-Way |
| Compression Supported | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Watermark Capability | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
