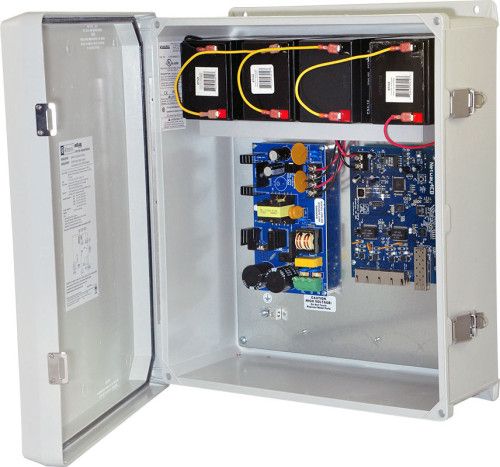

Altronix NETWAY4EWPX 4 Port PoE+ Hardened Switch

The Altronix NETWAY4EWPX 4 Port PoE+ Hardened Switch is designed for outdoor networking solutions, featuring a robust 1Gb SFP port and four PoE+ (30W) ports, or the option for two Hi-PoE (60W) ports. With a range of connectivity options up to 100m, this switch ensures reliable power and data transmission for surveillance cameras and edge devices. Its embedded LINQ Technology provides remote management capabilities, allowing users to monitor and control power and diagnostics effortlessly.

Features

Altronix NETWAY4EWPX Key Features

• Input: Supports 115VAC 60 Hz, 3A or 230VAC 50/60 Hz, 1.65A for versatile power options.
• Power Output: Offers 4 PoE+ (30W) or up to two Hi-PoE (60W) ports, IEEE 802.3at and IEEE 802.3af compliant, ensuring compatibility with a wide range of devices.
• Total Power: Delivers 120W of total power with integral surge protection for enhanced safety and reliability.
• Fiber Port: Includes one Gigabit SFP port for high-speed fiber connectivity.
• Ethernet: Features RJ45 auto-crossover connectivity with a distance of up to 100m and speeds of 10/100/1000Mbps for high-performance network connections.
• Battery Backup: Incorporates a built-in charger for sealed lead acid or gel-type batteries with automatic switch over to standby when AC fails.
• Indicators (LED): Provides individual PoE status LEDs and fiber connection indicators for real-time monitoring of port activity.
• LINQ Technology: Enables remote device management, offering notifications and access to diagnostics via email and Windows Dashboard.

Altronix NETWAY4EWPX Detailed Specifications
