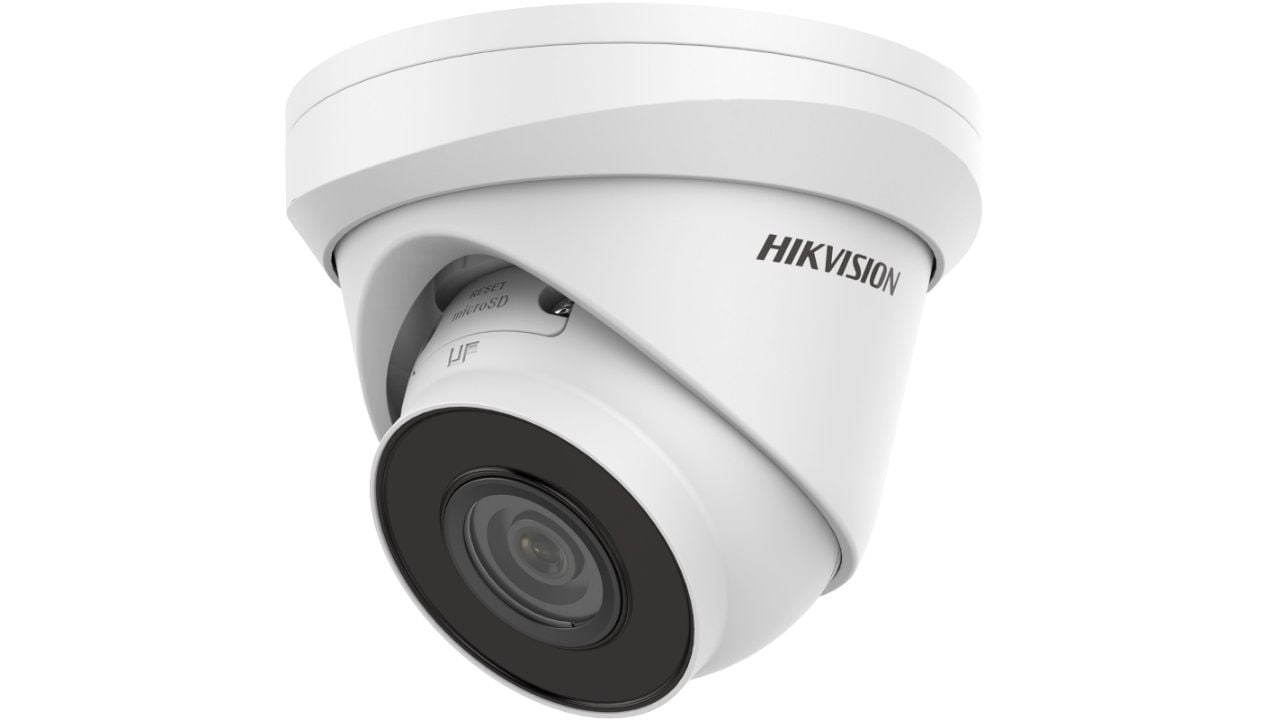

Hikvision ECI-T24F2 4 Megapixel Network IR Outdoor Dome Camera, 2.8mm Lens
SKU
ECI-T24F2
Model No
ECI-T24F2
$113.91
Product Highlights
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to 120 dB WDR
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
Speak to an expert
The Hikvision ECI-T24F2 is a high-performance 4 Megapixel Network IR Outdoor Dome Camera designed for superior image quality and functionality in outdoor environments. With advanced features like efficient compression technology and robust waterproofing, this camera is perfect for anyone seeking reliable surveillance solutions.
Hikvision ECI-T24F2 Camera Features
- High Resolution: 4 MP imaging delivers sharp and detailed video footage, ensuring clarity in identification.
- H.265+ Compression: Reduces bandwidth and storage requirements without compromising video quality, making it cost-effective.
- 120 dB Wide Dynamic Range: Provides clear imaging in challenging lighting conditions, enhancing visibility in both bright and dark areas.
- IP67 Rating: Water and dust resistant, ensuring durability and reliable performance in various weather conditions.
- EXIR 2.0 Technology: Offers advanced infrared capabilities for superior night vision and extended IR range, enhancing security after dark.
Hikvision ECI-T24F2 Detailed Specifications
| Image Sensor | 4 MP CMOS |
| Lens | 2.8mm fixed lens |
| Max Resolution | 2560 x 1440 pixels |
| Compression | H.265+/H.265/H.264+/H.264 |
| WDR | 120 dB |
| IR Distance | Up to 30 meters |
| Protection Rating | IP67 |
| Power Supply | 12V DC |
SKU  | ECI-T24F2 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø 127.3 mm × 95.9 mm (Ø 5.0" × 3.7") |
| Electronic Shutter | 1/3 s to 1/100,000 s |
| Image Device | 1/3" progressive scan CMOS |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Power Consumption | 12 VDC: max. 5 W, PoE: max. 6.5 W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnPâ„¢, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° |
| IR Distance | 30m/98.42ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
