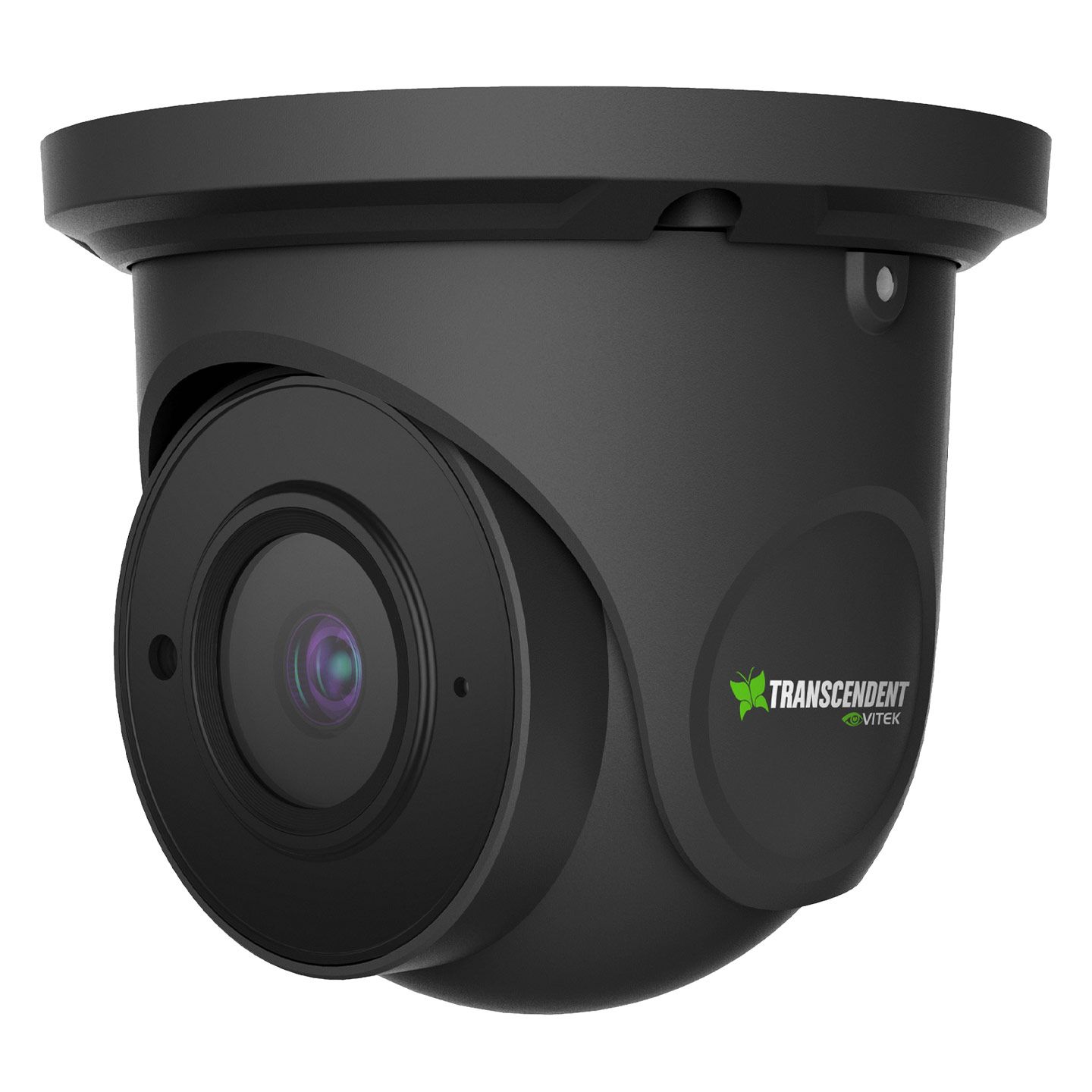

Vitek VTC-THT5R2B 5 Megapixel Indoor/Outdoor 4-in-1 IR Fixed Turret Camera, 2.8mm Lens, Black
SKU
VTC-THT5R2B
Model No
VTC-THT5R2B
$67.76
Product Highlights
- 1/2.5" 5.0 Megapixel Progressive Scan CMOS Sensor
- 2.8mm Fixed Lens
- Matrix with 100' IR Range
- Digital Wide Dynamic Range (D-WDR)
- True Mechanical Day/Night function by ICR

Speak to an expert
The VTC-THT5R2B from Vitek is a 5 Megapixel Indoor/Outdoor 4-in-1 IR Fixed Turret Camera equipped with a 2.8mm lens and designed for versatility and high performance in various conditions. It delivers impressive video quality, multiple video output formats, and essential features for optimal surveillance.
Vitek VTC-THT5R2B Camera Features
- 1/2.5" 5.0 Megapixel Progressive Scan CMOS Sensor: Ensures high image clarity and detail for better surveillance.
- High Definition Analog (HDA): Supports multiple video outputs including HD-TVI at 5.0 MegaPixel, AHD at 5.0 MegaPixel, and CVI at 4.0 MegaPixel for flexibility in integration.
- 2.8mm Fixed Lens: Provides a wide viewing angle ideal for monitoring larger areas.
- Matrix with 100’ IR Range: Offers excellent night vision capabilities, making it reliable for low-light conditions.
- Digital Wide Dynamic Range (D-WDR): Enhances image quality in challenging lighting conditions, ensuring clear footage.
- True Mechanical Day/Night Function by ICR: Automatically switches between day and night modes for optimal performance.
- 3D-DNR Noise Reduction: Reduces noise in the video feed for clearer images.
- IP67 Weather Resistance: Provides protection against dust and water, making it suitable for outdoor use.
- Supports Control over COAX (CoC): Facilitates easier installation and control of camera settings over existing coaxial cables.
- Over 1500’ HD Video Transmission: Allows for long-distance video transmission depending on cable quality.
- Optional Junction Boxes and Wall Mount: Flexibility in installation with available accessories (VT-TJB01, VT-TJB08, VT-TWMT-3).
- 12VDC Operation: Easily integrates into existing power systems for operational convenience.
Vitek VTC-THT5R2B Detailed Specifications
| Feature | Details |
|---|---|
| Model | Vitek VTC-THT5R2B |
| Sensor Type | 1/2.5" 5.0 Megapixel Progressive Scan CMOS |
| Video Output Formats | HD-TVI (5.0MP), AHD (5.0MP), CVI (4.0MP), CVBS (960H) |
| Lens | 2.8mm Fixed Lens |
| IR Range | Up to 100 feet |
| Weather Resistance | IP67 |
| Power Supply | 12VDC |
| Additional Features | Digital WDR, 3D-DNR, True Day/Night ICR |
| Installation Accessories | Optional Junction Boxes (VT-TJB01, VT-TJB08), Wall Mount (VT-TWMT-3) |
| SKU | VTC-THT5R2B |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vitek |
| NDAA | Compliant |
| Camera Signal | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 2592 X 1944 |
| Sensor Option | 1/2.5" CMOS |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Infrared Distance | 61~100 Feet |
| Durability | Indoor, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Image Device | 1/2.5” 5.0 Megapixel Progressive Scan CMOS Sensor |
| Image Pixels-Effective | 2560 x 1936 |
| IR Distance | 30.48m/100ft |
| Minimum Scene Illumination | Color: 0.01 [email protected], AGC ON / B/W: 0 lux (with IR ON) |
| Operating Humidity | 10%~90% Humidity |
| Operating Temperature | -4°~122° |
| Dimensions (W x H) | 3.77” × 4.25” (95.7 × 108mm) |
| Power Consumption | IR Off: 100mA / IR On: 350mA |
| S/N Ratio | ≥52 dB (AGC Off) |
| Signal System | PAL / NTSC |
| Weatherproof | IP67 |
| Digital Noise Reduction | D-DNR |
| Automatic White Balance | Auto (AWB) |
| IR LEDs | 1 |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
