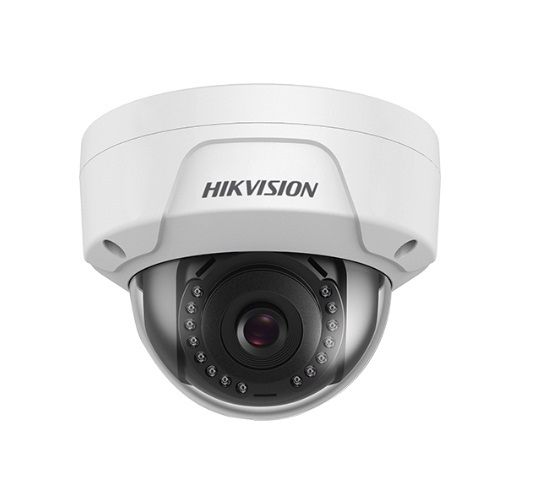

Hikvision ECI-D14F4 4 Megapixel Outdoor IR Network Dome Camera, 4mm Lens
SKU
ECI-D14F4
Model No
ECI-D14F4
$106.39
Product Highlights
- 1/3" (4 MP) Progressive Scan CMOS
- Up to 2560 x 1440 Resolution
- Up to 100 ft (30 m) EXIR 2.0 Range
- H.265+/H.265/H.264+/H.264/MJPEG
- 120 dB True WDR Produces Clearer Image
Speak to an expert
Looking for a faster alternative?
Due to changing product availability and extended lead times on some Hikvision products,
we've selected compatible replacement options that are readily available for immediate shipment.
4 Megapixel Outdoor IR Network Dome Camera
- The ECI-D14F4 from Hikvision is an outdoor IR dome camera which provides high definition network output. It supports H.265+ video compression technology, which assures savings in bandwidth and storage. EXIR 2.0 technology allows for viewing up to a range of 100 feet (30 meters).
Camera Functions
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
Onvif
Privacy Masking
Weather Resistant
WDR
Camera Features
| 1/3" (4 MP) Progressive Scan CMOS | 2-Axis Positioning: Pan and Tilt |
| Up to 2560 x 1440 Resolution | IP67, IK10 Protection |
| Up to 100 ft (30 m) EXIR 2.0 Range | Durable Metal Housing |
| H.265+/H.265/H.264+/H.264/MJPEG | 12 VDC ±25% (PoE IEEE802.3af), Max. 7 W |
| 120 dB True WDR Produces Clearer Image |
View from Anywhere with Hik-Connect
Upgrade Your Experience with Hik Connect 5.0
Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.
Additional Hikvision Products
SKU  | ECI-D14F4 |
|---|---|
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 4mm |
| Compression Method | H.264 |
| Dimensions (W x H) | Ø4.4" x 3.2" (Ø111 mm x 82.4 mm) |
| Electronic Shutter | 1/3 s to 1/100, 000 s |
| Image Device | 1/3" (4 MP) progressive scan CMOS |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.15 lux @ (Æ’/2.0, AGC on); B/W: 0.03 lux @ (Æ’/2.0, AGC on), 0 lux with IR |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -22° to 140° F (-30° to 60° C) |
| Power Consumption | 12 VDC, 0.45 A, maximum: 5.5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, maximum: 7 W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal FOV 77°, vertical FOV 42°, diagonal FOV: 90° |
| IR Distance | 30m/100ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
