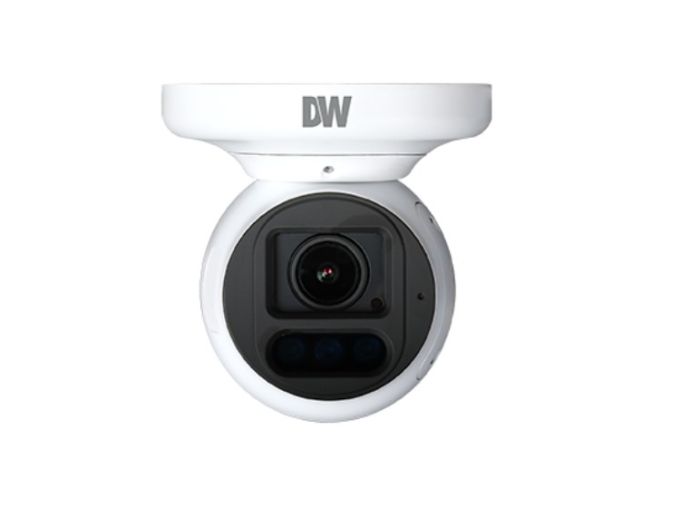

Digital Watchdog DWC-XSTD05Mi 5 Megapixel Network Ball Turret Camera, AI engine for Vandal Use with 2.7-13.5mm Lens
SKU
DWC-XSTD05Mi

Digital Watchdog Model DWC-XSTD05Mi

Digital Watchdog DWC-XSTD05Mi 5 Megapixel Network Ball Turret Camera, AI engine for Vandal Use with 2.7-13.5mm Lens

  • 5MP
  • 2.7–13.5mm
  • AI
  • PoE
  • Audio
Free shipping
Model No
DWC-XSTD05Mi
$938.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Two-way audio with a built-in microphone for direct communication between the monitoring station and the camera's location
  • Local SD card slot for local recording in case of network loss
  • Alarm sensor input and relay output for access control integration
  • Web server built-in for easy camera management from any browser
  • High-power PoE and DC12V for single cable simplified installation

Overview

Introducing the Digital Watchdog DWC-XSTD05Mi 5 Megapixel Network Ball Turret Camera, designed for both indoor and outdoor use with advanced AI features. This camera boasts a robust 5MP sensor, superior night vision capabilities, versatile lens options, and cutting-edge technologies to ensure high-quality surveillance. Equipped with smart detection zones and seamless integration, it provides enhanced security and peace of mind.

Digital Watchdog DWC-XSTD05Mi Key Features

  • 5MP Sensor: Experience high-definition footage at real-time 30fps for sharp and clear images.
  • Star-Light Plus™ Technology: Capture color images in near-total darkness, enhancing nighttime surveillance capability.
  • AI Deep Learning: Utilize advanced object detection to differentiate between real threats and false alarms.
  • Flexible Detection Zones: Create up to 40 detection zones to focus surveillance where it matters most.
  • Easy Setup: Enjoy hassle-free installation without the need for manual calibration.
  • Seamless Integration: Connect effortlessly with DW Spectrum® for centralized control and management.
  • False Alarm Reduction: Leverage multiple detection zones and logical rules to minimize unnecessary alerts.
  • Smart Recording: Optimize recording storage by eliminating false alarms for efficient data management.
  • Motorized Zoom Lens: Control a vari-focal p-iris lens remotely for precise focus adjustments as needed.
  • True WDR: Achieve clear images even in challenging lighting situations with advanced wide dynamic range capabilities.
  • Multiple Codecs: Benefit from simultaneous streaming options and smart bandwidth management with H.265, H.264, and MJPEG.
  • 100' Smart IR™: Ensure clear black-and-white images with built-in intelligent IR technology for low-light environments.
  • Smart DNR™: Enhance visibility in low-light situations with advanced 3D digital noise reduction technology.
  • Privacy Zones: Secure sensitive areas by masking parts of the camera's field of view from recording.
  • Two-Way Audio: Communicate directly via built-in microphone for real-time interaction through the monitoring station.
  • Local SD Card Slot: Store recordings locally to mitigate the impact of potential network disruptions.
  • Alarm Sensor Input: Integrate with access control systems using dedicated alarm inputs and relay outputs.
  • Built-In Web Server: Manage and configure the camera easily through any web browser.
  • High-Power PoE: Simplify installation with Power over Ethernet (PoE) for a single cable solution.
  • NDAA/TAA Compliance: Meet federal requirements for government projects with this compliant camera.
  • Durable Design: IP67 and IK10-rated housing ensures resilience in various environmental conditions.

Digital Watchdog DWC-XSTD05Mi Detailed Specifications

FeatureDetails
Image Sensor5 Megapixel 1/2.8” (2592x1944 @ 30fps)
Lens2.7-13.5mm autofocus varifocal lens
Night Vision100ft Smart IR™ technology
Wide Dynamic RangeTrue WDR (120dB)
AudioTwo-way audio with built-in microphone
Power SupplyHigh Power PoE and DC12V
ComplianceNDAA, TAA, OnVIF Compliant
Protection RatingIP67, IK10
Warranty5 Year Warranty

Built-in Functions

  • Audio
  • Auto Gain Control
  • Day/Night
  • Digital Noise Reduction
  • Automatic White Balance
  • Back Light Compensation
  • Motion Detection Tracking
  • Privacy Masking
  • Wide Dynamic Range
  • Mirror

Specifications

SKU  DWC-XSTD05Mi
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Digital Watchdog
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    5 Megapixel
Lens Type    Varifocal
Lens Size    2.7-13.5mm
Mount Type  Ceiling
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC
Automatic Gain Control (AGC)    Auto
Dimensions (W x H)  4.92" x 4.79" (125 x 121.7 mm)
Electronic Shutter    1/15 ~ 1/32000
Image Device    1/2.8" CMOS sensor
Minimum Scene Illumination  0.0 lux (B/W), 0.04 lux (color)
Operating Humidity    10-90% (non-condensing)
Operating Temperature    -4°F ~ 122°F (-20°C ~ 50°C)
Power Consumption  DC12V: max 8.5W, 708.3mA
Privacy Zone    16 programmable privacy masks
Protocols  DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP)
Weatherproof    IP67
Digital Noise Reduction    3D Digital Noise Reduction
Angle of View    Horizontal Field of View: 98.3°-31.6°, Vertical Field of View: 23.5-70.8°
IR Distance  30m/100ft
