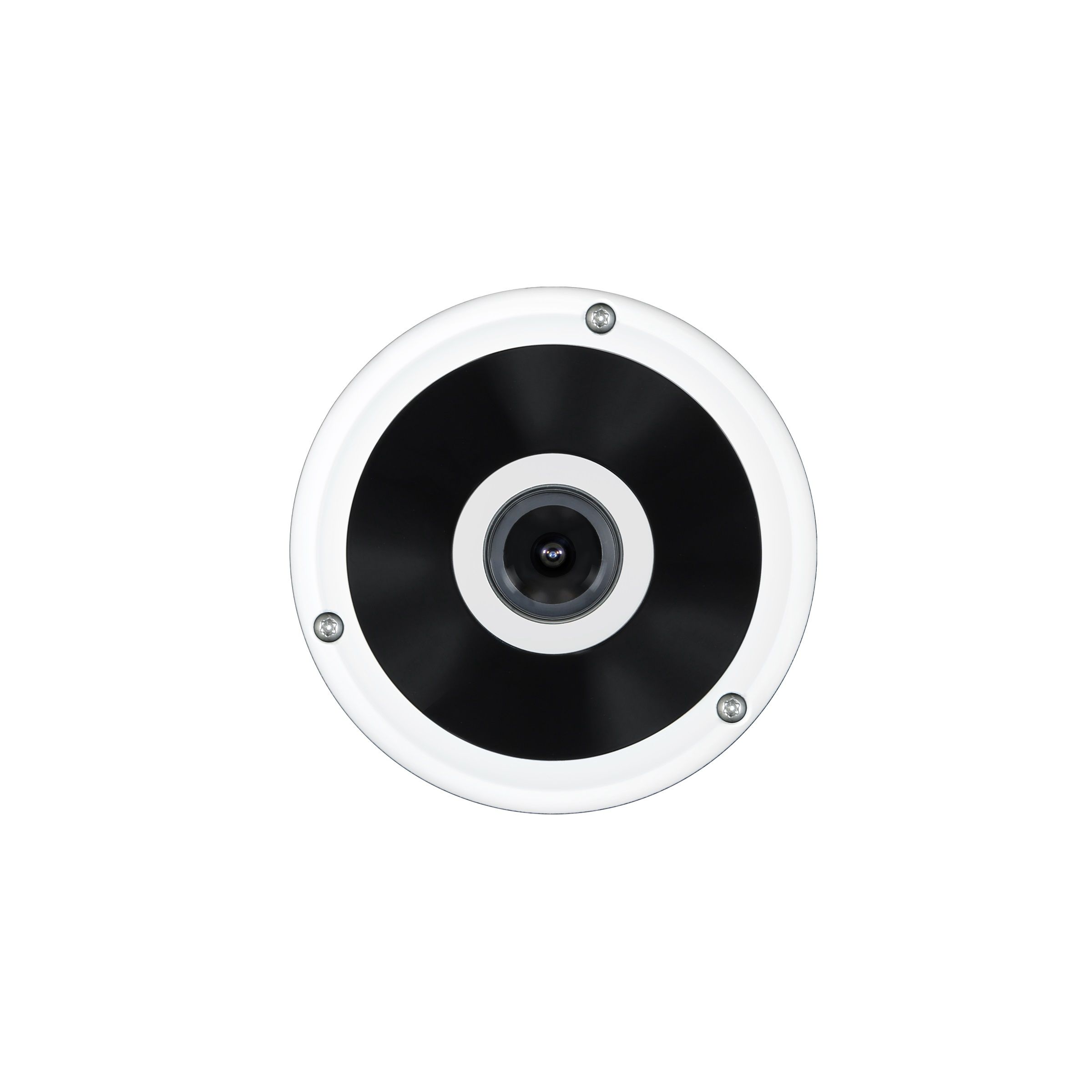

Digital Watchdog DWC-PPVF5Di1TW 5 Megapixel Indoor/Outdoor IR Dome IP Camera, 1.5mm Lens
- 5MP 1/1.8” image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
- Support 360° hemispheric fisheye view and 360°, 180° and 90° panoramic view
- Edge-to-edge image clarity
This MEGApix® IVA+™ 5MP 360° view fisheye outdoor IP camera with IR is your gateway to powerful video analytics features. It is NDAA/TAA compliant and can monitor an entire area, providing ultimate ROI. The MEGApix IVA+ cameras have a powerful engine to detect and classify people, vehicles and objects in real-time with support for logical rules. This camera’s 1.5mm fisheye lens provides edge-to-edge image clarity producing 5MP panoramic images at real-time 30fps. Star-Light Plus™ color in near-total darkness technology ensures quality video in any lighting condition. The camera also offers simultaneous H.265/H.264/ MJPEG codec support in an IP66 vandal-resistant, discrete housing. The camera is optimized to work with the DW Spectrum® IPVMS instant dewarping feature.
Features
- 5MP 1/1.8” image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
- Support 360° hemispheric fisheye view and 360°, 180° and 90° panoramic view
- Edge-to-edge image clarity
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- 1.5mm fisheye lens
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 360° 80’ Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC class 10 card slot (card not included)
- Web server built-in
- PoE class 3 and DC12V
- UL listed
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 9-rated impact-resistant
SKU  |
DWC-PPVF5Di1TW |
|---|---|
| Features |
Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer |
Digital Watchdog |
| NDAA | Compliant |
Camera Signal  |
Network IP |
| Connection Type |
Wired |
| Infrared Distance |
61~100 Feet |
| Resolution |
5 Megapixel |
| Lens Type |
Fixed |
| Lens Size |
1.5mm |
| Mount Type |
Ceiling, Wall |
| Compression Method |
H.264, M-JPEG, H.265 |
| Durability |
Indoor, Vandal Resistant, Weather Resistant |
| Voltage |
12vDC, PoE |
| Automatic Gain Control (AGC) |
Auto |
| Dimensions (W x H) |
4.9" x 1.88” (125 x 48mm) |
| Electronic Shutter |
1/15~1/32000, Auto, manual, anti-flicker, slow shutter |
| Image Device |
6.4MP 1/1.8” CMOS |
| Image Pixels Total | 3096 (H) X 2080 (V) |
| Minimum Scene Illumination |
0.39 lux (color), 0 lux (B/W) |
| Operating Humidity |
Less than 90% (non-condensing) |
| Operating Temperature |
-4°F ~ 122°F (-20°C ~ 50°C) |
| Power Consumption |
DC12V: max 7.5W, PoE: max 8.7W |
| Privacy Zone |
16 programmable privacy mask |
| Protocols |
TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF |
| Weatherproof |
IP66 |
| Digital Noise Reduction |
3D-DNR |
| Angle of View |
HFOV: 185°, VFOV: 185° |
| IR Distance |
24.384M/80ft |
| Audio | Yes |
| Auto Gain Control |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Automatic White Balance |
Yes |
| Back Light Compensation |
Yes |
| Flickerless |
Yes |
| Motion Detection Tracking |
Yes |
| Privacy Masking |
Yes |
| Wide Dynamic Range |
Yes |
| Mirror |
Yes |
| ONVIF |
Yes |
| Digital Zoom | Yes |
