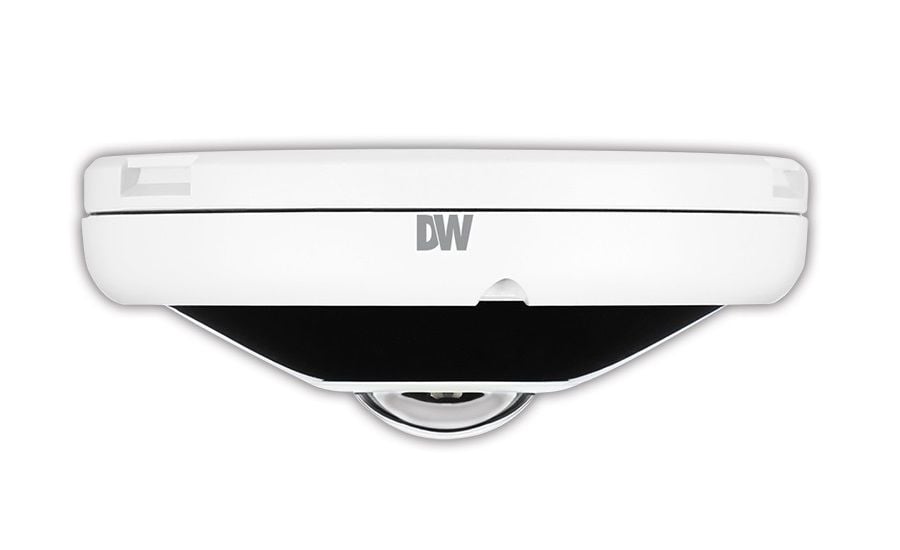

Digital Watchdog DWC-PVF9Di2TW 9 Megapixel Fisheye Vandal Dome IP Camera, 2.1mm Lens

SKU
DWC-PVF9Di2TW
Model No
DWC-PVF9Di2TW
was $730.00 Special Price $720.99
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $400* Free Shipping
Over $400*
Product Highlights
  • 9MP 1/1.7 image sensor at real-time 30fps
  • Star-Light Plus™color in near-total darkness technology
  • 2.1mm fisheye lens
  • Support 360° hemispheric fisheye view and 360° , 180° and 90° panoramic view
  • Edge-to-edge image clarity

The DWC-PVF9Di2TW MEGApix® Pano™ 9MP 360° view fisheye outdoor IP camera is engineered for comprehensive surveillance, delivering a 360° view to monitor vast areas effortlessly. With its 2.1mm fisheye lens, it captures high-resolution 9MP images at real-time 30fps, ensuring sharp clarity across the entire field of view. The advanced Star-Light Plus™ technology ensures superior color reproduction in low-light conditions, while its robust IP66 vandal-resistant housing guarantees durability and protection against the elements. Enhanced with multiple codec support and optimized for DW Spectrum™ IPVMS, this camera is perfect for any security setup.

Digital Watchdog DWC-PVF9Di2TW Unique Features

  • 9MP Image Sensor: Achieve real-time 30fps recording for smooth video playback and crystal-clear images.
  • Star-Light Plus™ Technology: Provides exceptional color imagery even in near-total darkness, enhancing nighttime surveillance capabilities.
  • 2.1mm Fisheye Lens: Offers a comprehensive 360° hemispheric view, reducing blind spots for maximum coverage.
  • Edge-to-Edge Image Clarity: Ensures high-quality images throughout the entire field of view, so no detail is missed.
  • Multi Codecs Support: Features simultaneous streams of H.264, H.265, and MJPEG, allowing flexible recording options.
  • Smart IR™ Technology: Provides effective night vision with a 360° range and intelligent camera synchronization for optimal results.
  • Two-Way Audio: Facilitates clear communication through the camera, adding an interactive element to your surveillance.
  • Smart DNR™ Noise Reduction: Reduces digital noise in video footage, ensuring clearer images in varying light conditions.
  • True Day/Night Functionality: Automatically switches between day and night modes with a mechanical IR cut filter for enhanced visibility.
  • Micro SD/SDHC Slot: Allows for external storage expansion (card not included) for recording footage directly on the camera.
  • IP66 Rating: Offers a dust-tight and water-resistant design, making it ideal for outdoor applications.
  • IK 9 Rating: Impact-resistant durability protects the camera from vandalism and harsh weather environments.

Detailed Specifications for DWC-PVF9Di2TW

ModelDWC-PVF9Di2TW
Image Sensor9MP 1/1.7” CMOS
Lens2.1mm Fisheye
Field of View360° Hemispheric & 360°, 180°, 90° Panoramic
Frame Rate30fps at 9MP
Low Light PerformanceStar-Light Plus™
IR Distance360° 80' Smart IR™
Audio SupportTwo-way audio
Video CompressionH.264, H.265, MJPEG
Storage SupportMicro SD/SDHC (not included)
Power SourcePoE class 3 and DC12V
Housing RatingIP66, IK 9
SKU  DWC-PVF9Di2TW
Features  Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Digital Watchdog
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    0~60 Feet
Resolution    9 Megapixel
Lens Type    Fixed
Lens Size    2.1mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Automatic Gain Control (AGC)    Auto
Dimensions (W x H)  4.9" x 1.88” (125 x 48mm)
Electronic Shutter    1/15 ~ 1/32,000sec
Image Device    12.4MP 1/1.7" Star-Light Plus CMOS
Image Pixels Total4000(H) X 3000(V)
Minimum Scene Illumination  0.3 lux (color), 0 lux (B/W)
Operating Humidity    Less than 90% (non-condensing)
Operating Temperature    -4°F ~ 122°F (-20°C ~ 50°C)
Power Consumption  DC12V: max 8.5W, PoE: max 10W
Privacy Zone    16 programmable privacy masks
Protocols  TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
S/N Ratio  50dB
Weatherproof    IP66
Digital Noise Reduction    3D DNR
Angle of View    FoV: 185°
IR Distance  24.38m/80ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
