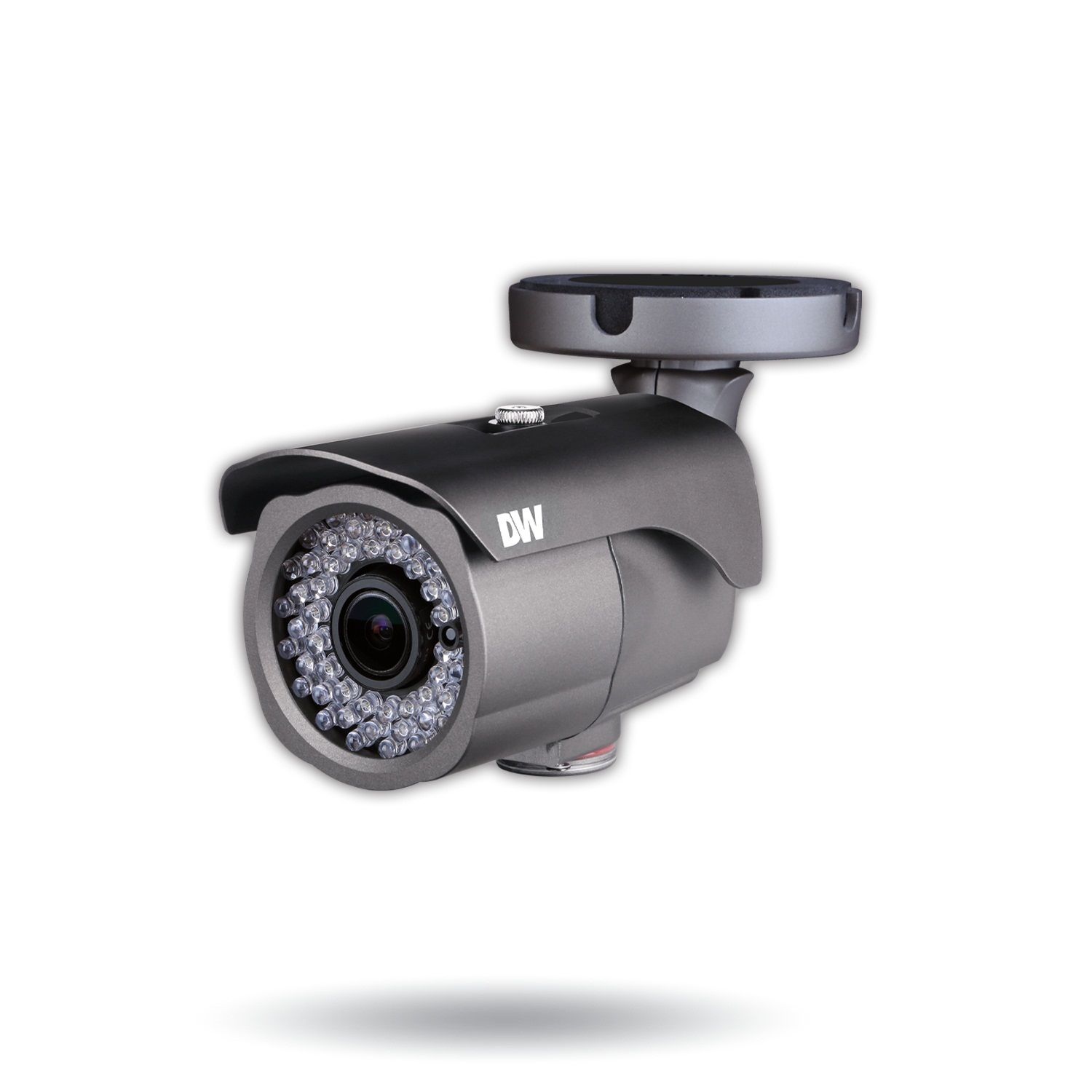

Digital Watchdog DWC-MB44WiAC6 4 Megapixel Network IR Outdoor Bullet Camera, 2.8-12mm Lens
SKU
DWC-MB44WiAC6
Model No
DWC-MB44WiAC6
$461.57
Product Highlights
- All-in-one cameras, no server required
- 4MP 1/3†image sensor at real-time 30fps
- 2.8~12mm vari-focal p-iris lens with motorized zoom and auto-focus
- Easily to deploy with pre-loaded DW Spectrum® IPVMS for out-of-the-box operation
- 24/7 access to live and recorded video feed
Speak to an expert
The Digital Watchdog DWC-MB44WiAC6 4 Megapixel Network IR Outdoor Bullet Camera offers exceptional image quality and advanced features for optimal security surveillance. With a weather-resistant design, ONVIF compliance, and a versatile 2.8-12mm motorized zoom lens, this camera is perfect for both indoor and outdoor settings. Its robust performance, including dual-stream recording and intelligent night vision, ensures you capture every detail with clarity, making it an ideal choice for comprehensive security needs.
Digital Watchdog DWC-MB44WiAC6 Camera Features
- All-in-one cameras: No server required, simplifying installation and setup.
- 4MP 1/3” image sensor: Delivers real-time video at 30fps for smooth video quality.
- 2.8~12mm vari-focal p-iris lens: Provides motorized zoom and auto-focus for flexible viewing angles.
- Pre-loaded DW Spectrum® IPVMS: Offers out-of-the-box operation for easy deployment.
- 24/7 access: Enables live and recorded video feed monitoring anytime.
- Automatic installation: Hassle-free setup with licensing on first power-on.
- Connect up to 30 edge cameras: Supports extensive setups for larger surveillance needs.
- True Wide Dynamic Range (WDR): Enhances visibility in challenging lighting conditions.
- Dual recording option: Integrates with Blackjack® NAS for additional storage flexibility.
- Dual codecs: Supports H.264 and MJPEG with simultaneous dual-stream capabilities.
- Cold start: Performs at temperatures as low as -40°F (-40°C).
- 120’ Smart IR™: Provides intelligent night vision with synchronized camera operation.
- Smart DNR™: Features 3D digital noise reduction for clear images in low light.
- True day/night functionality: Includes mechanical IR cut filter for accurate color reproduction.
- Programmable privacy zones: Allows users to conceal sensitive areas in the video feed.
- Auto gain control (AGC): Automatically adjusts image brightness for enhanced visibility.
- Auto white balance (AWB): Ensures accurate color representation in varying light conditions.
- Motion detection: Alerts users to detected movement within the surveillance area.
- Two-way audio: Enables communication through the camera for enhanced interaction.
- Alarm sensor input: Integrates with external alarm systems for added security measures.
- Relay output: Allows for triggering of external devices based on camera events.
- Web server built-in: Facilitates remote access and management of camera settings.
- Power over Ethernet (PoE) class 3: Simplifies wiring by using a single cable for power and data.
- Waterproof cabling: Ensures durability and reliability in adverse weather conditions.
- ONVIF conformant: Complies with industry standards for compatibility with other devices.
- IP66 environmental rating: Guarantees dust-tight and water-resistant performance.
Digital Watchdog DWC-MB44WiAC6 Detailed Camera Specifications
| Model | DWC-MB44WiAC6 |
| Resolution | 4 Megapixels (2560x1440) |
| Frame Rate | 30fps |
| Lens | 2.8-12mm Autofocus Varifocal P-Iris |
| IR Distance | 120ft Smart IR |
| Sensor Type | 1/3" CMOS Sensor |
| Optical Zoom | 4.2X |
| Power Supply | PoE & DC12V |
| Audio | Two-Way Audio |
| Local Storage | Built-in 64GB memory |
| Environmental Rating | IP66 |
| Warranty | 5 Years |
SKU  | DWC-MB44WiAC6 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto |
| Dimensions (W x H) | 8.77" x 3.07" (223 x 78mm) |
| Electronic Shutter | 1/15~1/32000 |
| Image Device | 4MP 1/3” CMOS |
| Image Pixels Total | 2688 (H) x 1520 (V) |
| Minimum Scene Illumination | 0.2 lux (color), 0 lux (B/W) |
| Operating Humidity | 10–90% RH (non–condensing) |
| Operating Temperature | -40°F ~ 122°F (-40°C ~ 50°C) |
| Power Consumption | DC12V Max 11W, PoE Max 12.9W |
| Privacy Zone | 16 programmable privacy masks |
| Protocols | Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2) |
| Video Output | Local video output CVBS 1.0V p-p (75), 4:3 aspect ratio |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D |
| Angle of View | 87° ~ 32° |
| IR Distance | 36.57/120ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
