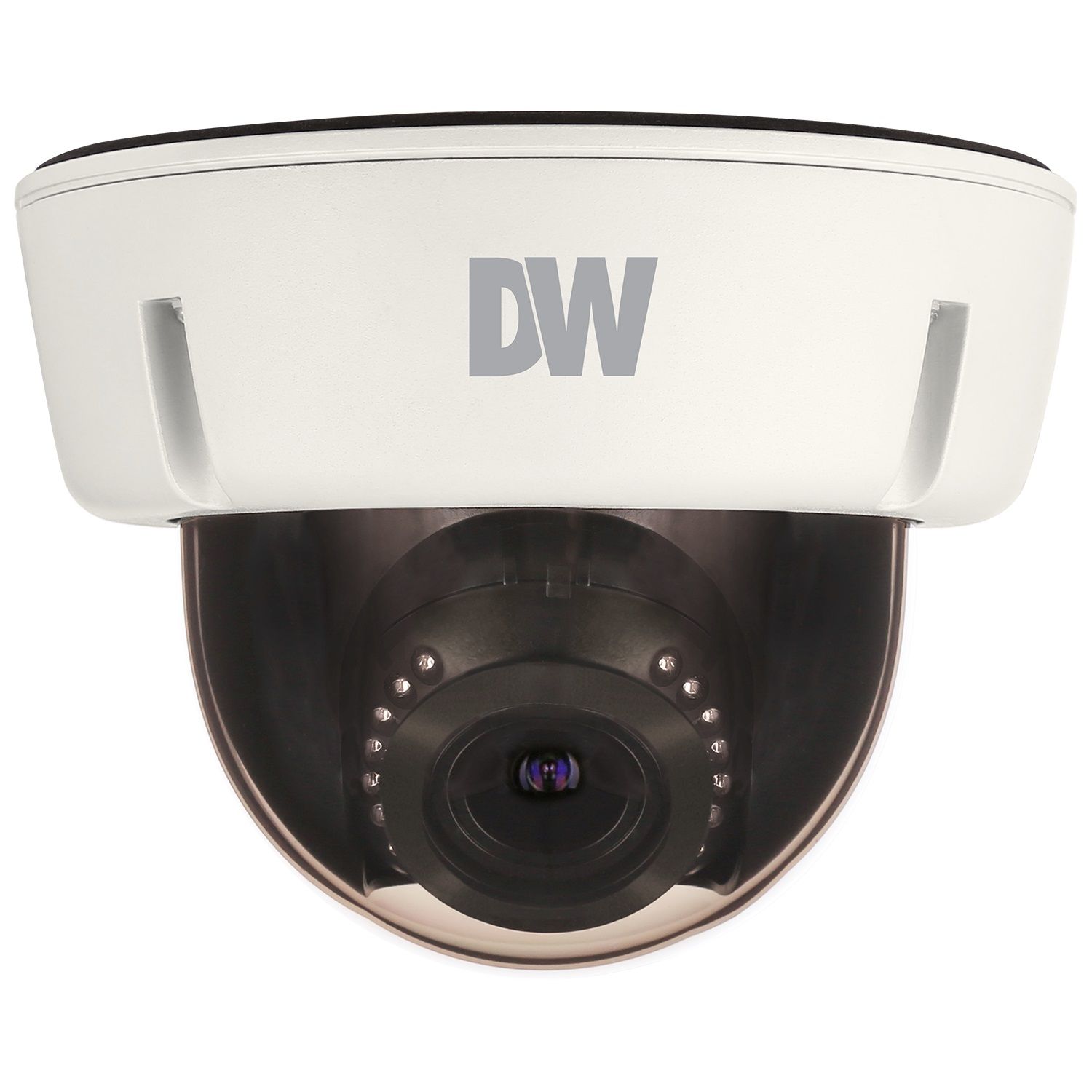

Digital Watchdog DWC-V6563WTIR 5 Megapixel Outdoor IR Vandal Dome Camera, 2.7-13.5mm Lens
SKU
DWC-V6563WTIR
Model No
DWC-V6563WTIR
was
$252.04
Special Price
$215.99
Product Highlights
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- Star-Light Plus color in darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 2.7~13.5mm vari-focal p-iris lens
Featuring Star-Light Plus color in darkness, 5MP Star-Light Plus Universal HD over Coax cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI signals, and all legacy analog signal. The weather resistant vandal dome cameras are IP66 rated and can be controlled via the same coax cable using UTC. All DW Universal HD over Coax cameras are engineered to work with our VMAX® A1 Plus™ DVRs using your existing coax infrastructure for a cost effective, high resolution surveillance solution.
Features
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- Star-Light Plus color in darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 2.7~13.5mm vari-focal p-iris lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- CleanView hydrophobic dome coating repels water, dust and grease
- 100' Smart IR™ with intelligent camera sync
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Auto sensing 24VAC/12VDC with line lock
- Easy icon driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- 1 alarm output
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
SKU  |
DWC-V6563WTIR |
|---|---|
| Features |
Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer |
Digital Watchdog |
| NDAA | Compliant |
Camera Signal  |
HD-AHD, HD-CVI, HD-TVI |
| Sensor Option |
1/2.8" CMOS |
| Lens Type |
Varifocal |
| Lens Size |
2.7-13.5mm |
| Infrared Distance |
61~100 Feet |
| Durability |
Vandal Resistant, Weather Resistant |
| Mount Type |
Ceiling, Wall |
| Voltage |
12vDC, 24vAC |
| Electronic Shutter |
1/30-1/30,000 |
| Gamma Correction |
0.45 |
| Image Device |
5MP 1/2.8" CMOS |
| IR Distance |
30.48m/100ft |
| Minimum Scene Illumination |
0.08 lux (color), 0 lux (B&W) |
| Operating Humidity |
10–90% RH (non–condensing) |
| Operating Temperature |
-4°F ~ 122°F (-20°C ~ 50°C) |
| Dimensions (W x H) |
5.7" x 4.26" (145 x 108.3 mm) |
| Power Consumption |
DC12V(LED OFF): 3.3W (275mA), DC12V(LED ON): 5.9W (495mA), AC24V(LED OFF): 2.75W (200mA), AC24V(LED ON): 5.3W (360mA) |
| Scanning System |
Progressive scan |
| Video Output |
HD-Analog and HD-TVI: 5MP/1944p @ 20fps and 12.5fps, HD-Analog, HD-TVI and HD-CVI: 4MP/1440p @ 30fps, HD-Analog, HD-TVI and HD-CVI: 2.1MP/1080p @ 30fps, HD-Analog, HD-TVI and HD-CVI: 720p @ 30fps, Analog CVBS: Up to 960H @ 30fps |
| Weatherproof |
IP66 |
| Synchronization |
Internal |
| Digital Noise Reduction |
3D/2D DNR |
| Angle of View |
122 - 40.8° |
| Auto Gain Control |
Max 72dB |
| Back Light Compensation |
Yes |
| Automatic White Balance |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Mirror |
Yes |
| Wide Dynamic Range |
Yes |
| Privacy Masking |
Yes |
| Auto Gain Control |
Yes |
| Motion Detection Tracking |
Yes |
