Louroe Electronics ASK-4-101-DP Audio Monitoring Kit

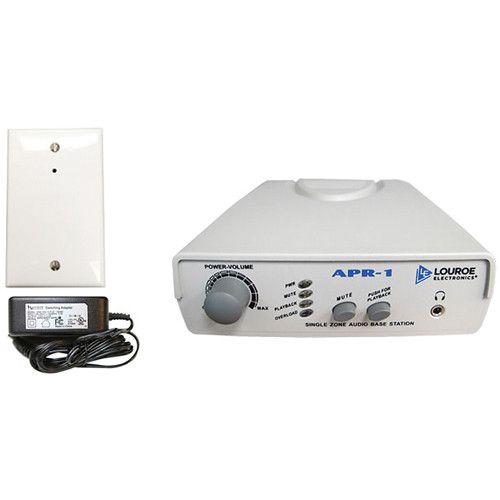

The ASK-4-101-DP Audio Monitoring Kit from Louroe Electronics is a single-zone audio monitoring system designed to interface with a DVR, VCR, or other recording devices that accept line level input. This kit consists of a Verifact DP Microphone, an APR-1 Audio Base Station, an AD-1 Plug-in Switching AC Adapter, and a Dual RCA Cable for connection to a DVR / VCR or other audio devices that accept line level input. This kit is suitable for use in convenience stores, police interview rooms, booking rooms, fast food restaurants, casino soft count rooms, speech therapy labs, or anyplace where CCTV cameras are installed.

The APR-1 Audio Base Station is a single-zone, non-alarming audio base station. As a system, (with a Louroe microphone) it provides one-way live audio with a 3-inch (7.62cm) built-in speaker. This unit contains input / output jacks for connecting to a DVR / VCR for audio recording and playback. Other features include adjustable volume control and a 3.5mm headphone jack. A mute switch is also provided to mute the audio heard on the speaker of the headset. The distance between the APR-1 Base Station and the microphone can be up to 1,000' (305m).

The Verifact DP Microphone is an electret condenser microphone with a pre-amp and omni-directional pattern. It provides listening capabilities between the area of coverage and the Louroe Base Station. The microphone assembly is mounted to the back of a single-gang plastic faceplate that fits into a single-gang electrical box. The DP microphone can be flush or surface mounted to a wall or ceiling. The Dual RCA Cable allows connection to DVRs / VCRs or other audio devices that accept line level input. The UL listed AD-1 Plug-In Switching AC Adapter supplies 12VDC to the APR-1 Base Station and microphone.

Louroe Electronics ASK-4-101-DP Audio Monitoring Kit Features

Features

• APR-1 Audio Base Station: Provides one-way live audio with a built-in 3-inch speaker, ensuring clear audio monitoring in real-time.
• Verifact DP Microphone: Electret condenser with omni-directional pattern allows for versatile audio capture across wide areas.
• Adjustable Volume Control: Customizable audio levels to suit different environments, enhancing user comfort.
• Distance Capability: Up to 1,000' (305m) between microphone and base station, offering flexibility in installation.
• Plug-in Switching AC Adapter: Easy power source for reliable operation of both the microphone and base station.

Detailed Specifications for Louroe Electronics ASK-4-101-DP
