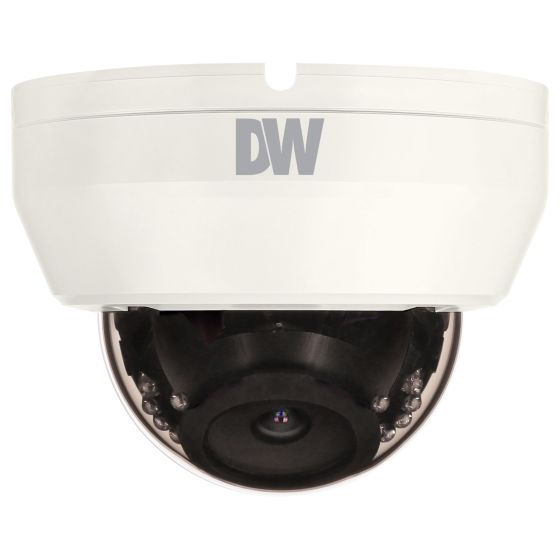

Digital Watchdog DWC-D3563WTIR 5 Megapixel Indoor IR Dome Camera, 2.7-13.5mm Lens

SKU
DWC-D3563WTIR

Digital Watchdog Model DWC-D3563WTIR

Digital Watchdog DWC-D3563WTIR 5 Megapixel Indoor IR Dome Camera, 2.7-13.5mm Lens

  • 5MP
  • 2.7–13.5mm
  • Night Vision
Free shipping over $450
Model No
DWC-D3563WTIR
$250.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/2.8" image sensor
  • 5MP at 20fps, 4MP at real-time 30fps
  • 2.7~13.5mm vari-focal p-iris lens
  • True wide dynamic range (WDR)
  • OSD control via coaxial (UTC)

Overview

The DWC-D3563WTIR from Digital Watchdog is a 5MP Star-Light Plus™ Universal HD over Coax® camera designed for high-performance indoor security. It delivers exceptional image resolution and supports a variety of signal formats including HD-Analog, HD-TVI, HD-CVI, and legacy analog signals. Notably, its advanced features allow for enhanced image quality in low light conditions thanks to its Star-Light Plus™ technology. The camera is perfect for anyone looking for a reliable and cost-effective security solution utilizing existing coax infrastructure.

Digital Watchdog DWC-D3563WTIR Camera Features

  • Universal HD over Coax® technology: Supports HD-Analog, HD-TVI, HD-CVI, and all legacy analog signals for versatile installation options.
  • Star-Light Plus™: Captures vibrant color images in low-light environments, enhancing nighttime surveillance.
  • 1/2.8" image sensor: Provides high-quality imaging for detailed video capture.
  • 5MP at 20fps: Ensures smooth video playback and clear images, with 4MP at real-time 30fps for enhanced performance.
  • 2.7~13.5mm vari-focal p-iris lens: Allows for precise focus adjustments, giving you control over the viewing angle.
  • True wide dynamic range (WDR): Balances exposure in challenging lighting conditions, ensuring details are visible in both bright and dark areas.
  • OSD control via coaxial (UTC): Simplifies on-screen display adjustments directly over the existing coaxial cables.
  • 100' Smart IR™: Features intelligent camera sync for optimal infrared illumination, enhancing night-time visibility.
  • Smart DNR™: 3D digital noise reduction technology minimizes image noise for clearer footage.
  • True day/night mechanical IR cut filter: Automatically switches between color and monochrome imaging, improving performance in varying light conditions.
  • De-Fog™: Compensates for environmental obstructions such as fog or smoke, ensuring clear images.
  • Auto sensing 24VAC/12VDC: Supports both voltage types with line lock for easier installation.
  • Easy icon driven OSD menu: Built-in joystick for intuitive camera setup and configuration.
  • Programmable privacy zones: Allows users to mask certain areas from recording for privacy compliance.
  • Auto gain control (AGC): Enhances image brightness in low-light scenarios automatically.
  • Backlight compensation (BLC): Prevents silhouette effects in scenes with strong backlighting.
  • Auto white balance (AWB): Ensures accurate color reproduction under varying lighting conditions.
  • 1 alarm output: Provides an option for triggering external alarms.

Digital Watchdog DWC-D3563WTIR Detailed Specifications

ModelDWC-D3563WTIR
Type5 Megapixel Indoor IR Dome Camera
Image Sensor1/2.8" Sensor
Resolution5MP at 20fps, 4MP at 30fps
Lens2.7-13.5mm Vari-focal P-Iris Lens
IR Range100' Smart IR™
Power SupplyAuto sensing 24VAC/12VDC
WDRTrue Wide Dynamic Range
OSD MenuEasy Icon Driven OSD with Joystick
Special FeaturesDe-Fog™, Programmable Privacy Zones, Smart DNR™

Built-in Functions

  • Back Light Compensation
  • Automatic White Balance
  • Day/Night
  • Digital Noise Reduction
  • Mirror
  • On Screen Display Menu
  • Wide Dynamic Range
  • Privacy Masking
  • Auto Gain Control

Specifications

SKU  DWC-D3563WTIR
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, On Screen Display Menu, Privacy Masking, Wide Dynamic Range
Manufacturer  Digital Watchdog
NDAACompliant
Camera Signal     HD-AHD, HD-CVI, HD-TVI
Resolution    2592 X 1944
Lens Type    Varifocal
Lens Size    2.7-13.5mm
Infrared Distance    61~100 Feet
Durability    Indoor
Mount Type  Ceiling, Wall
Voltage  12vDC, 24vAC
Electronic Shutter    1/30-1/30,000
Gamma Correction  0.45
Image Device    5MP 1/2.8" CMOS
IR Distance  30.48m/100ft
Minimum Scene Illumination  0.08 lux (color), 0 lux (B&W)
Operating Humidity    10–90% RH (non–condensing)
Operating Temperature    -4°F ~ 122°F (-20°C ~ 50°C)
Dimensions (W x H)  4.72" x 3.51” (120 x 89.4 mm)
Power Consumption  DC12V(LED OFF): 3.3W (275mA), DC12V(LED ON): 5.9W (495mA), AC24V(LED OFF): 2.75W (200mA), AC24V(LED ON): 5.3W (360mA)
Scanning System    Progressive scan
Video Output    HD-Analog and HD-TVI: 5MP/1944p @ 20fps and 12.5fps, HD-Analog, HD-TVI and HD-CVI: 4MP/1440p @ 30fps, HD-Analog, HD-TVI and HD-CVI: 2.1MP/1080p @ 30fps, HD-Analog, HD-TVI and HD-CVI: 720p @ 30fps, Analog CVBS: Up to 960H @ 30fps
Synchronization  Internal
Digital Noise Reduction    3D/2D DNR
Angle of View    122 - 40.8°
Auto Gain Control    Auto
