Radionix by Bosch B4512-CP-921C Kit Includes B4512 / B10 / CX4010 / B430 / B921C

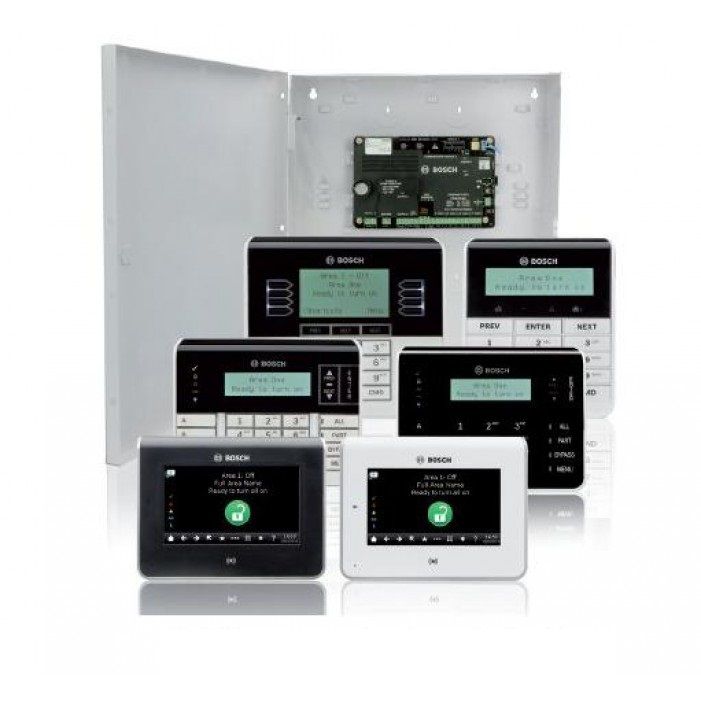

The Bosch B4512-CP-921C Kit offers a comprehensive security solution that combines intrusion detection and residential fire alerts into a single, user-friendly interface. This all-in-one system provides flexible installation options with support for up to 28 individually identified points and features advanced communication capabilities including Ethernet connectivity. The included components, such as the B10 enclosure, CX4010 transformer, and two keypad models (B930 and B921C), enhance both the functionality and aesthetic appeal while ensuring reliable operation across modern networks.

Bosch B4512 Control Panel Features

• Supports up to 28 points: A combination of hardwired or wireless points allows for installation flexibility across 2 areas with perimeter and interior control.
• On-board Ethernet port: Facilitates Conettix IP alarm communication and remote programming, compatible with IPv6/IPv4, Auto-IP, and Universal Plug and Play.
• Installer-friendly features: USB port for easy on-site RPS programming, and plug-in PSTN and Cellular communication modules for straightforward installation and upgrades.
• Email and text notifications: Receive alerts via the Remote Security Control app for both Android and iOS mobile devices.
• Programmable keypad shortcuts: Bilingual user interface and situation sensitive on-screen help simplify system operation.

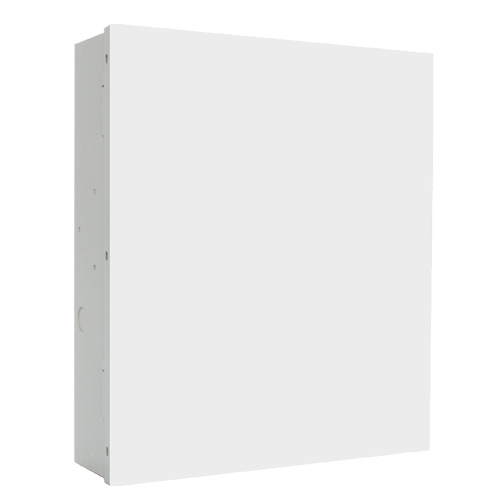

Bosch B10 Enclosure Features

• White steel enclosure: Made of durable cold-rolled steel, providing long-lasting protection.
• Optional lock and tamper switch: Enhanced security features to protect the control panel.
• Compact size: Measures 35.6 cm x 31.8 cm x 7.6 cm (14 in x 12.5 in x 3 in) for easy placement.

Bosch CX4010 Transformer Features

• North America specific: Designed for use in North American electrical systems.
• Voltage conversion: Converts 110 VAC primary input to 18 VAC, 22 VA secondary output.

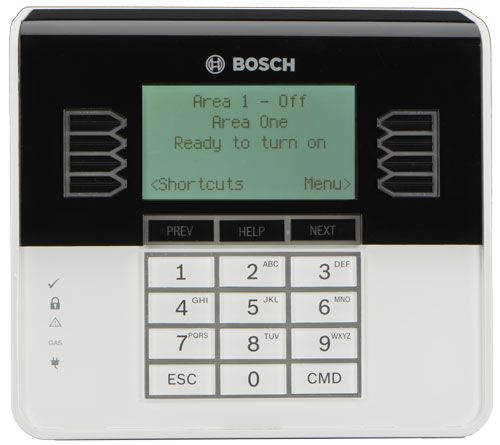

Bosch B930 Keypad Features

• 5-line LCD display: Shows up to 32 character point, user, and area names for clear communication.
• Menu-style user interface: Simplifies operation with dedicated function buttons for common commands.
• Programmable shortcuts: Enhances ease of use with situation sensitive on-screen help.
• Visible alarm indicators: Provides clear status information for arm/alarm, power, and gas alarms.
• Easy installation: Includes self-locking base and built-in bubble level for proper alignment.

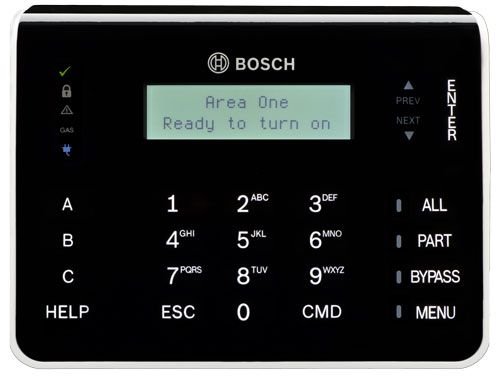

Bosch B921C Keypad Features

• 2-line LCD display: Displays up to 32 character point, user, and area names for easy identification.
• Capacitive touch keys: Offers a sleek surface that cleans easily and resists wear compared to traditional buttons.
• On-screen help: Guides users through operation with situation sensitive prompts.
• Alarm indicators: Highly visible status indicators for arm/alarm, power, trouble, and gas alarms.
• Four inputs: Provides lower-cost point expansion options for future needs.

Detailed Specifications for Bosch B4512-CP-921C
