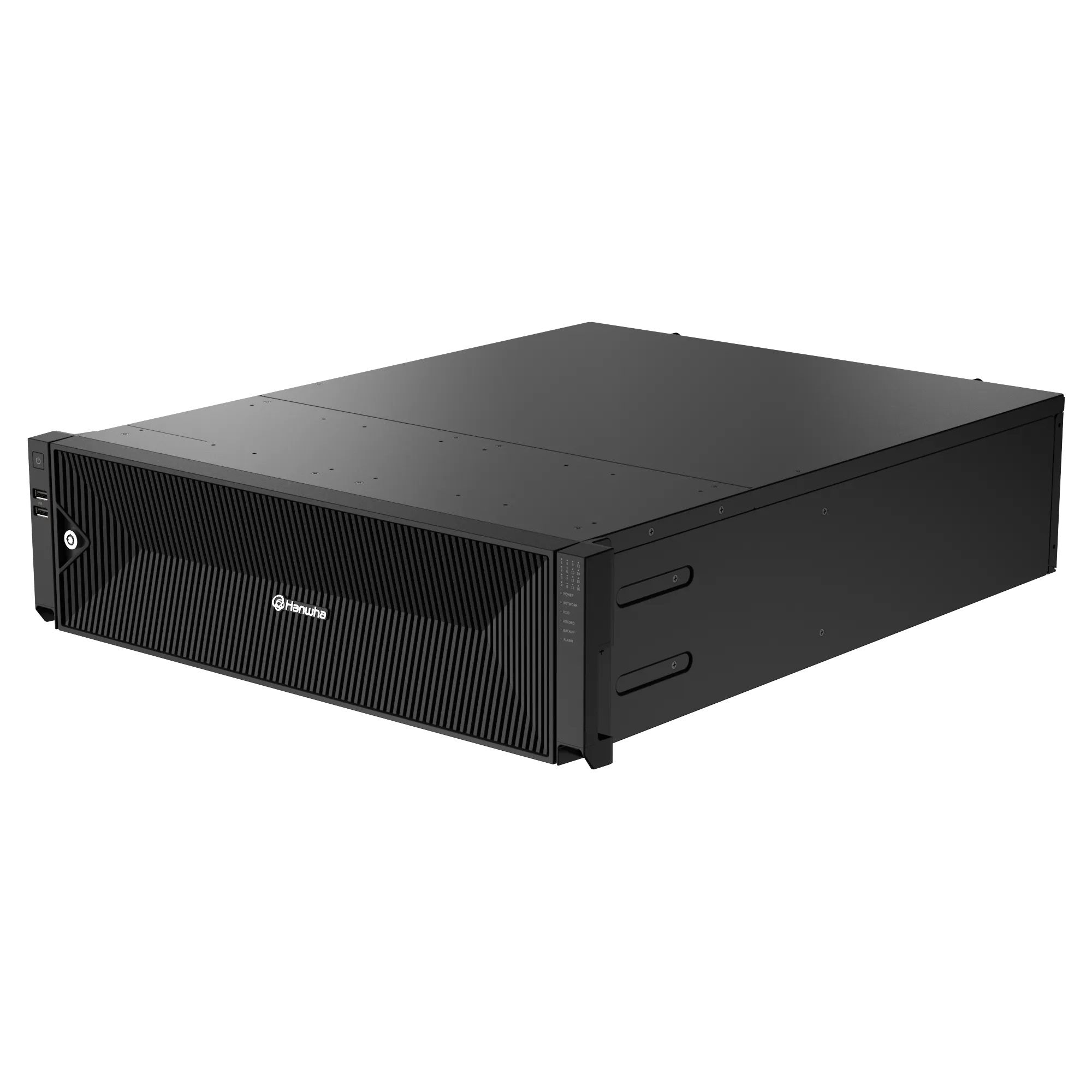

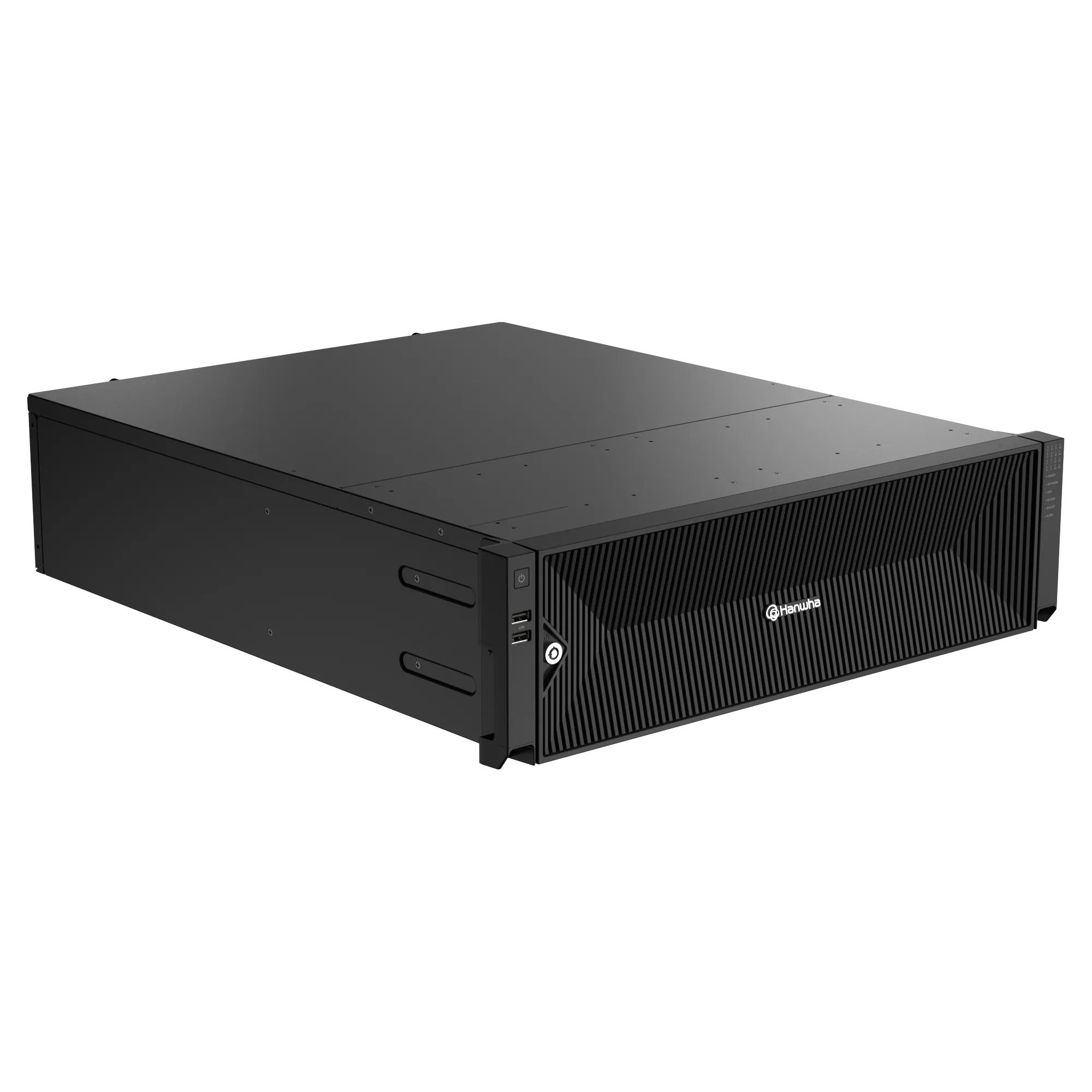

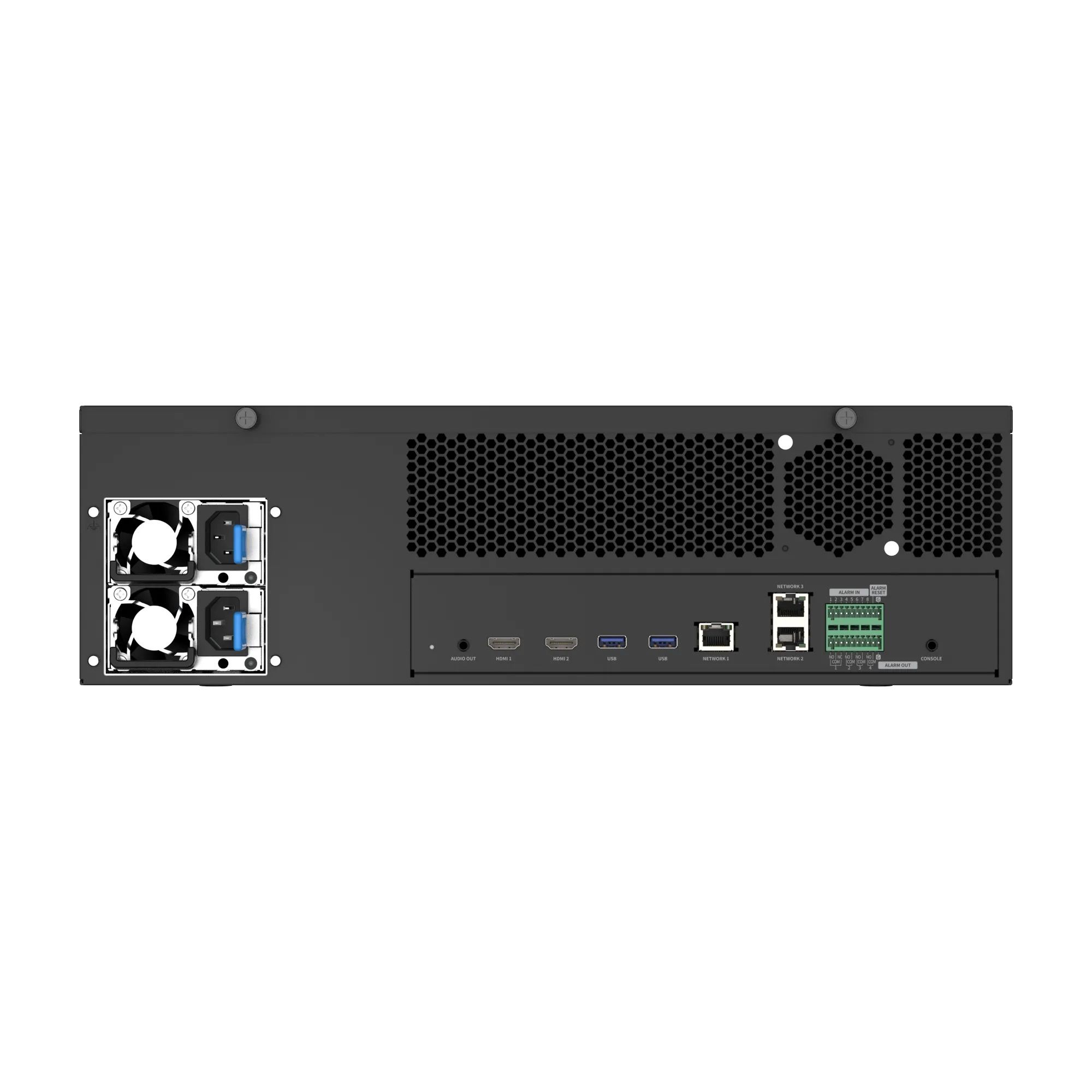

Hanwha Vision XRN-6420DB4 64 Channels 8K Intel Based NVR with No HDD
SKU
XRN-6420DB4
Model No
XRN-6420DB4
$8,320.00
Product Highlights
- 64CH, 32MP resolution
- SATA 16 HDD Bays (up to 160TB)
- Up to 520Mbps recording / transmission bandwidth
- Easy Channel/Event/Alarm configuration
- Virtual Channel View
Speak to an expert
64 Channels 8K Intel Based NVR with No HDD
- The Hanwha Vision XRN-6420DB4 is a high-performance 64-channel 8K Intel-based NVR designed for advanced surveillance needs. Featuring a robust architecture with 16 SATA HDD bays and support for a whopping 160TB storage, this NVR ensures seamless recording and playback capabilities with its impressive bandwidth of up to 520 Mbps. With advanced features such as dual stream recording, AI search compatibility, and RAID support, the XRN-6420DB4 is perfect for both large-scale installations and comprehensive monitoring solutions.
NVR Functions
Alarm Notification by E-mail
Compression Supported
DDNS Functionality
H.264 Compression
H.265 Compression
MJPEG Compression
Supports PTZ Control
Supports the Full HD Output (HDMI)
Two-way Audio
NVR Features
| 64CH, 32MP resolution | Virtual Channel View |
| SATA 16 HDD Bays (up to 160TB) | Up to 520Mbps recording / transmission bandwidth |
| Easy Channel/Event/Alarm configuration | Manual event support |
Additional Hanwha Vision Products
SKU  | XRN-6420DB4 |
|---|---|
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
| IP Channels | 64 Channels |
| Harddrive Size | No HDD |
| Protocols | ONVIF protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 32MP ~ CIF |
| Compression | H.265, H.264, MJPEG |
| Bandwidth | Up to 200Mbps(64CH simultaneously) |
| Operating temperature | 0°C to +40°C(32℉ to 104℉) |
| Dimensions | 440.0 x 132.0 x 571.1mm |
| Voltage | 100 ~ 240 VAC ±10%; 50/60 Hz, 2.7A (Dual SMPS) |
| Power Consumption | Max. 265W (904.2 BTU with HDD 16ea) |
| SATA | 16 HDD Bays |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
| Audio | 2-Way |
| Compression Supported | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Watermark Capability | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
