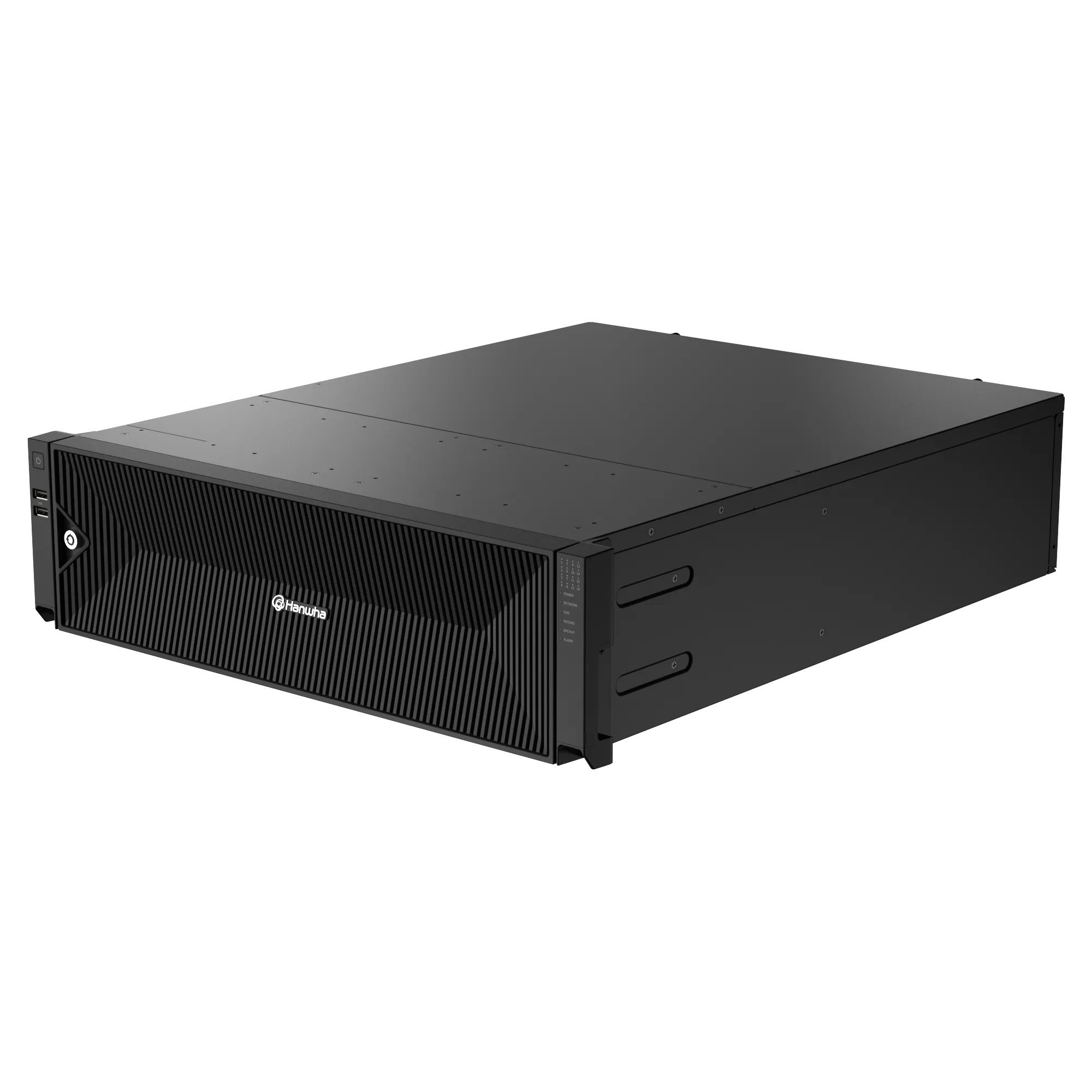

Hanwha Vision XRN-6420DB4-16TB 64 Channels 8K Intel Based NVR with 16TB
SKU
XRN-6420DB4-16TB
Model No
XRN-6420DB4-16TB
$10,240.00
Product Highlights
- 64CH, 32MP resolution
- SATA 16 HDD Bays (up to 160TB)
- Up to 520Mbps recording / transmission bandwidth
- Easy Channel/Event/Alarm configuration
- Virtual Channel View
Speak to an expert
64 Channels 8K Intel Based NVR with 16TB
- The Hanwha Vision XRN-6420DB4-16TB is a cutting-edge 64-channel 8K NVR designed for high-performance video surveillance. With a robust Intel-based architecture, this NVR supports up to 16TB of raw storage and offers exceptional recording capabilities of up to 520 Mbps. Its advanced features include dual-stream recording, AI search capabilities, and extensive compatibility with various camera types, making it perfect for comprehensive security solutions.
NVR Functions
Alarm Notification by E-mail
Compression Supported
DDNS Functionality
H.264 Compression
H.265 Compression
MJPEG Compression
Supports PTZ Control
Supports the Full HD Output (HDMI)
Two-way Audio
NVR Features
| 64CH, 32MP resolution | Virtual Channel View |
| SATA 16 HDD Bays (up to 160TB) | Up to 520Mbps recording / transmission bandwidth |
| Easy Channel/Event/Alarm configuration | Manual event support |
Additional Hanwha Vision Products
SKU  | XRN-6420DB4-16TB |
|---|---|
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
| IP Channels | 64 Channels |
| Harddrive Size | 16TB |
| Protocols | ONVIF protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 32MP ~ CIF |
| Compression | H.265, H.264, MJPEG |
| Bandwidth | Up to 200Mbps(64CH simultaneously) |
| Operating temperature | 0°C to +40°C(32℉ to 104℉) |
| Dimensions | 440.0 x 132.0 x 571.1mm |
| Voltage | 100 ~ 240 VAC ±10%; 50/60 Hz, 2.7A (Dual SMPS) |
| Power Consumption | Max. 265W (904.2 BTU with HDD 16ea) |
| SATA | 16 HDD Bays |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
| Audio | 2-Way |
| Compression Supported | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Watermark Capability | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
