Hanwha Vision XRN-6420DB4-80TB 64 Channels 8K Intel Based NVR with 80TB

Name: Hanwha Vision XRN-6420DB4-80TB 64 Channels 8K Intel Based NVR with 80TB
Brand: Hanwha Vision
SKU: XRN-6420DB4-80TB
Price: 17658.36 USD
Availability: InStock

SKU

XRN-6420DB4-80TB

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hanwha Vision XRN-6420DB4-80TB 64 Channels 8K Intel Based NVR with 80TB XRN-6420DB4-80TB by Hanwha Vision

Model No

XRN-6420DB4-80TB

$17,658.36

Add to Quote

Volume
Discounts

Free System
Design

Lifetime
Tech Support

Free Shipping
Over $450*

Additional Options

Included HDD

No HDD 12TB 16TB 20TB 24TB 32TB 40TB 48TB 56TB 64TB 88TB 96TB 104TB 112TB 120TB 128TB 140TB 150TB 160TB

Add to Wishlist Add to Compare

Product Highlights

64CH, 32MP resolution
SATA 16 HDD Bays (up to 160TB)
Up to 520Mbps recording / transmission bandwidth
Easy Channel/Event/Alarm configuration
Virtual Channel View

Add to Wishlist Add to Compare

Speak to an expert

Call: 800.955.5201 | Request A Call | Live Chat | Message Support

Details

64 Channels 8K Intel Based NVR with 80TB

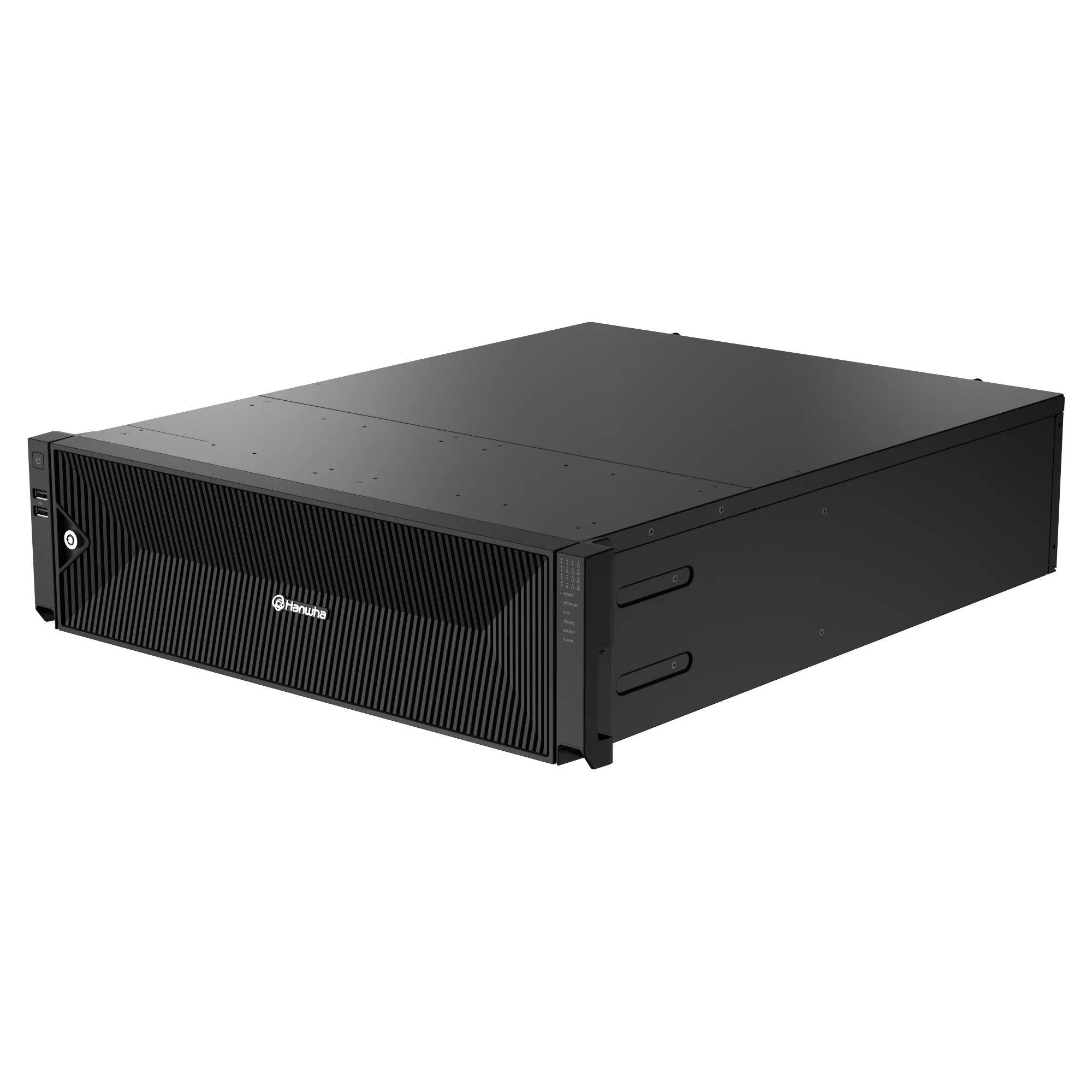

The Hanwha Vision XRN-6420DB4-80TB is a powerful 8K Intel-based NVR designed to support up to 64 channels and 80TB of storage. It features advanced recording capabilities, including a maximum camera resolution of 32MP, and supports various video compression formats like H.265, ensuring efficient storage management. With its robust design, including dual display outputs and redundancy options, this NVR is ideal for businesses looking for high-performance surveillance solutions.

NVR Functions

Alarm Notification by E-mail

Compression Supported

DDNS Functionality

H.264 Compression

H.265 Compression

MJPEG Compression

Supports PTZ Control

Supports the Full HD Output (HDMI)

Two-way Audio

NVR Features


64CH, 32MP resolution	Virtual Channel View
SATA 16 HDD Bays (up to 160TB)	Up to 520Mbps recording / transmission bandwidth
Easy Channel/Event/Alarm configuration	Manual event support

Specifications

SKU	XRN-6420DB4-80TB
Manufacturer	Hanwha Vision
NDAA	Compliant
IP Channels	64 Channels
Harddrive Size	80TB
Protocols	ONVIF protocols
Features	Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio
Resolution	32MP ~ CIF
Compression	H.265, H.264, MJPEG
Bandwidth	Up to 200Mbps(64CH simultaneously)
Operating temperature	0°C to +40°C(32℉ to 104℉)
Dimensions	440.0 x 132.0 x 571.1mm
Voltage	100 ~ 240 VAC ±10%; 50/60 Hz, 2.7A (Dual SMPS)
Power Consumption	Max. 265W (904.2 BTU with HDD 16ea)
SATA	16 HDD Bays
USB	4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0)
Audio	2-Way
Compression Supported	Yes
DDNS Functionality	Yes
Supports the Full HD Output (HDMI)	Yes
Watermark Capability	Yes
Supports PTZ Control	Yes
H.264 Compression	Yes
H.265 Compression	Yes
MJPEG Compression	Yes
