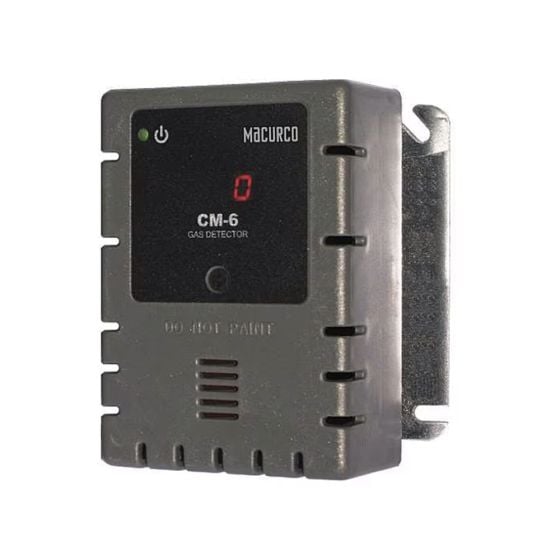

Macurco CM-6 Carbon Monoxide Fixed Gas Detector Controller and Transducer
- Fan relay actuation: selectable at 15, 25, 35 (default), 50 or 100 ppm CO
- Output: Fan relay, Alarm relay and 4-20mA current loop
- Controls: Digital display (0-200ppm), buzzer, fan delay, fan minimum runtime

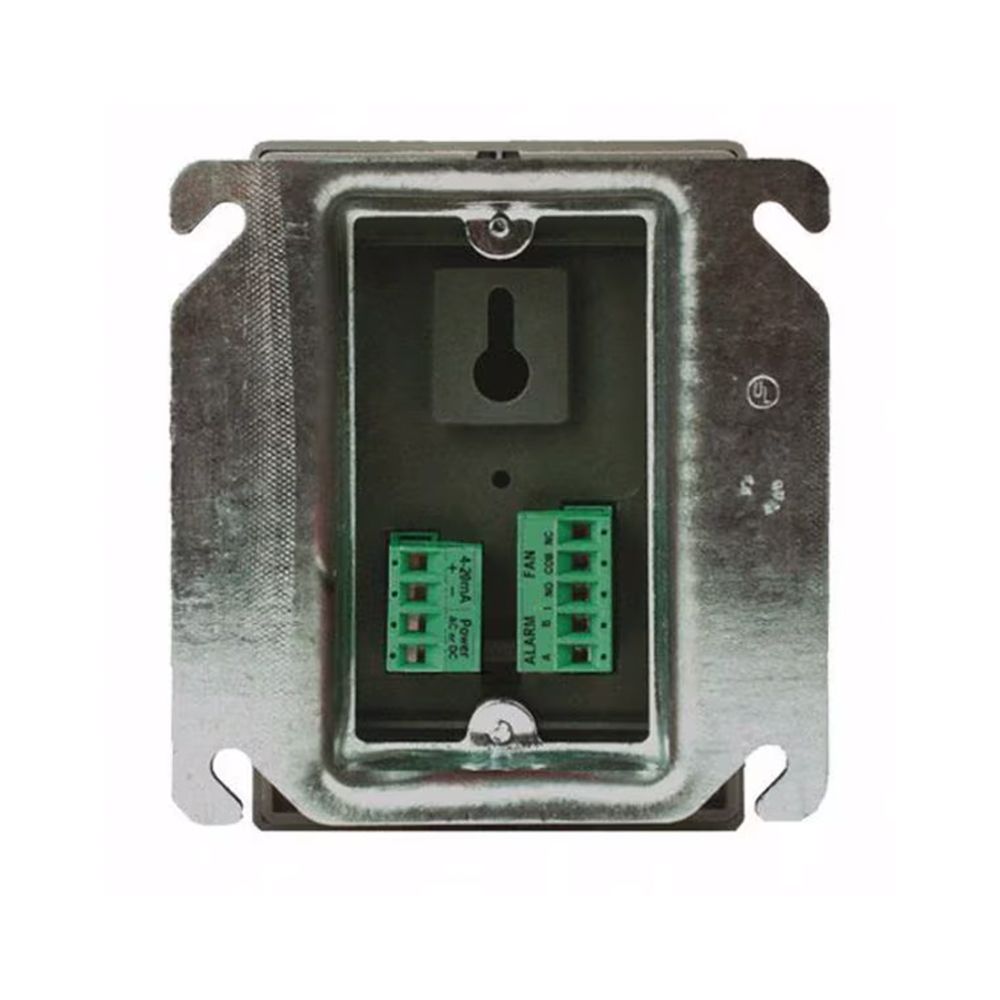

- Mounts on a standard 4″ x 4″ electrical box
- 5 A SPDT fan relay controls valves, louvers or exhaust fans
Advanced Carbon Monoxide Detection & Control with the Macurco CM-6
Experience unparalleled safety and reliability with the Macurco CM-6, the ultimate solution for carbon monoxide detection and control. Designed to protect, the CM-6 offers cutting-edge technology, customizable features, and seamless integration into your existing systems. Whether you're managing a parking garage, maintenance facility, or any other space where CO levels need to be monitored, the CM-6 delivers the performance and peace of mind you need.
Key Features of the Macurco CM-6
- Dual Relay Functionality: Equipped with both fan and alarm relays for seamless control of exhaust systems and warning devices.
- Selectable 4-20 mA Output: Easily integrate with control panels or monitoring systems for precise CO concentration tracking.
- Digital Display and Buzzer: Clear visual and audible alerts for CO levels, ensuring immediate awareness and response.
- Adjustable Fan Relay Activation: Customize activation levels at 15, 25, 35 (default), 50, or 100 ppm for tailored safety protocols.
- Mounting Convenience: Installs directly on a standard 4” x 4” electrical box for easy setup.
- High-Power Relays: 5 A SPDT fan relay and 0.5 A N.O./N.C. alarm relay for robust control of valves, louvers, and fans.
- Factory-Calibrated and Supervised System Design: Ensures reliability and safety, with automatic activation of alarms and fans if a detector issue is detected.
- Optional Calibration Kit: Allows for field testing and recalibration, ensuring long-term accuracy and compliance.
How the Macurco CM-6 Works
The CM-6 is designed to measure CO concentrations and provide real-time feedback to control exhaust fans or valves, reducing CO levels in the air. With its dual relay system, the device can activate exhaust fans to ventilate the area and trigger alarms to alert personnel of dangerous CO levels. The selectable activation points (15, 25, 35, 50, or 100 ppm) allow you to customize the system to meet specific safety requirements.
Technical Specifications
| Feature | Details |
|---|---|
| CO Measurement Range | 0-200 ppm |
| Fan Relay Activation | Selectable at 15, 25, 35 (default), 50, or 100 ppm |
| Output | 4-20 mA current loop, fan relay, and alarm relay |
| Relay Ratings | 5 A SPDT (fan relay), 0.5 A N.O./N.C. (alarm relay) |
| Mounting | Standard 4” x 4” electrical box |
| Certifications | ETL Listed to UL 61010-1, CAN/CSA C22.2 No 61010-1, LADBS Approved |
| Calibration | Factory-calibrated with optional field calibration kit |
Why Choose the Macurco CM-6?
- Safety First: The CM-6 is designed to protect people and assets by providing accurate CO detection and reliable control of ventilation systems.
- Flexibility: With adjustable activation points and multiple output options, the CM-6 can be tailored to meet the specific needs of your facility.
- Ease of Use: The digital display and buzzer provide clear alerts, while the supervised system design ensures continuous monitoring and reliability.
- Compliance: Meets or exceeds industry standards with ETL listing and other certifications.
Applications
The Macurco CM-6 is ideal for:
- Parking garages
- Maintenance facilities
- Commercial buildings
- Industrial spaces
- Any location where CO levels need to be monitored and controlled
If you're looking for a reliable, user-friendly, and highly customizable CO detection and control system, the Macurco CM-6 is the perfect solution.
SKU  | CM-6 |
|---|---|
| Manufacturer | Macurco |
| Type | Hardwired |
| Scene | Indoor, Outdoor |
CM-6-Specsheet CM-6-Manual
