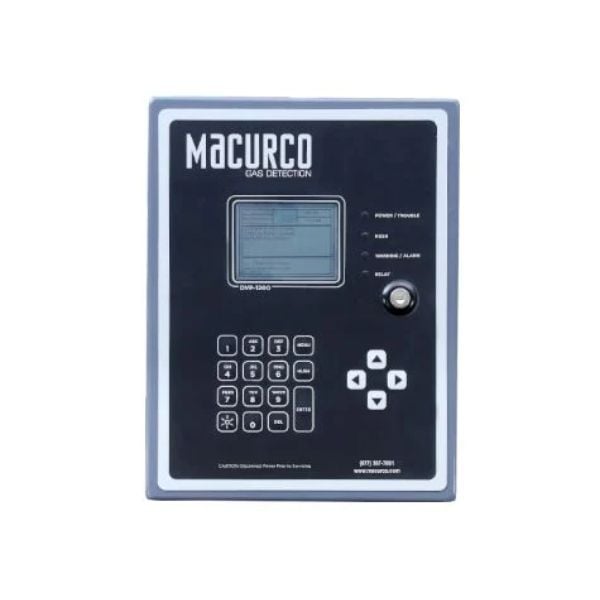

Macurco DVP-1200 Control Panel Works with Macurco 6-Series, 192 Modbus Inputs

SKU
DVP-1200

Macurco Model DVP-1200

Macurco DVP-1200 Control Panel Works with Macurco 6-Series, 192 Modbus Inputs

Free shipping
Model No
DVP-1200
$2,902.50
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Three RS-485 channels can connect up to 192 detectors (64 per channel)
  • BACnet IP (ethernet connection)
  • Lockable NEMA4X type enclosure
  • Total of eight zones can be defined
  • Event logging

Overview

The DVP-1200 controller in conjunction with Macurco gas detectors provides automatic control to help maintain an acceptable environment in parking garages or other applications. This control panel offers an expandable system with up to 192 addressable detectors in the field. The DVP-1200 comes standard with four relays, as well as expandable onboard relay options (+2, +4). Other outputs on the DVP-1200 include three analog outputs, four 24VDC drivers, and BACnet IP. The DVP-1200 can be connected to up to two remote relay boxes with each remote relay box containing two relays. With the expandability of this panel, the DVP-1200 will fit into any gas detection application.

Macurco DVP-1200 Key Features

  • Detector Connectivity: Three RS-485 channels can connect up to 192 detectors (64 per channel), ensuring comprehensive environmental monitoring.
  • Relay Expansion: Up to 12 relays available; standard with four onboard relays, and two remote relay box options (each with two relays), offering versatile alarm and control configurations.
  • Analog Outputs: (3) 4-20mA outputs for VFD control, facilitating precise control of ventilation fan drives.
  • 24VDC Outputs: (4) outputs for alarm, trouble, and remote notifications, enhancing system responsiveness.
  • BACnet IP: Ethernet connectivity allows for seamless integration with building management systems.
  • Enclosure Protection: Lockable NEMA4X type enclosure ensures durability and protection against dust and water.
  • Zone Management: A total of eight zones can be defined for tailored monitoring solutions.
  • Event Logging: Features event logging for enhanced monitoring and maintenance capabilities.

Macurco DVP-1200 Detailed Specifications

ModelDVP-1200
CapacityUp to 192 addressable detectors
Relay OutputsStandard: 4, Optional: +2 or +4, Remote: 2 per box
Analog Outputs3 x 4-20mA outputs
24VDC Outputs4 outputs for various notifications
Connection TypeBACnet IP
Enclosure TypeLockable NEMA4X
Zone Management8 definable zones
Event LoggingYes

Specifications

SKU  DVP-1200
Manufacturer  Macurco
Zone8
Touch ScreenNo

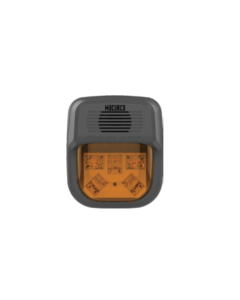

Fits with these accessories
